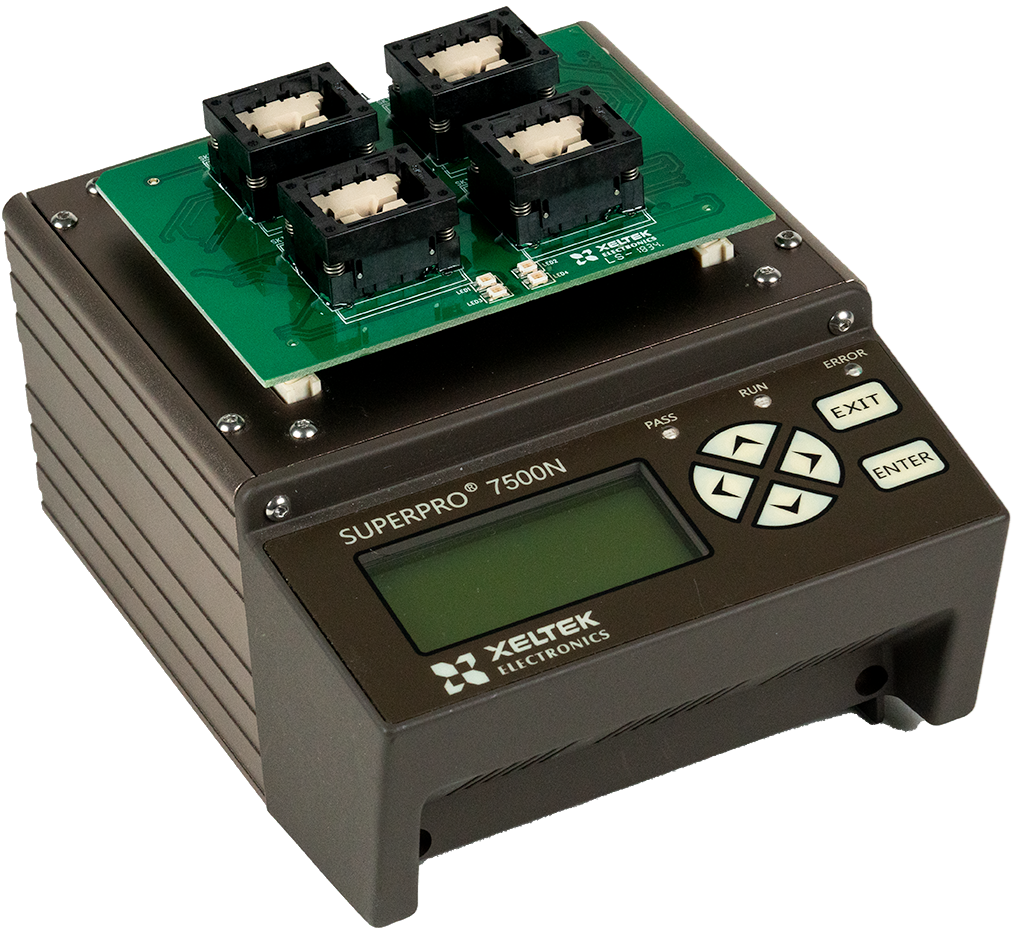

Ultra-performance universal IC programmer for modern electronics manufacturing and development. Efficiently and reliably programs eMMC, NAND, E/EPROM, NOR Flash, and more. The SuperPro 7500N can program up to 4 chips simultaneously.

SuperPro 7500N - Limited Time Special

List price: $2,395.00
$1,995.00
You save: $400.00 (17%)
SP7500N
Advanced Universal LAN Programmer
  • Algorithms engineered to program up to 4 chips simultaneously
  • Supports most device memories on the market
  • Programs eMMC devices up to 64 GB
  • Supports most package types including WLCSP
  • Operates in PC hosted, stand-alone, and LAN modes
  • Customized device algorithm development available
+

Worldwide Shipping

High Speed 4 Gang Stand-Alone Universal Device Programmer

Meet the NEW STANDARD in the universal programming industry. The ultra powerful system engine allows to program either single or 4 chips simultaneously with equal ease. Convert the universal programmer into a 4 gang programmer just by inserting a 4-socket adapter. No need to buy an expensive gang programmer anymore and save thousands.



Certificates

CE Compliant RoHS Compliant ISO 9001 Certified ISO 4001

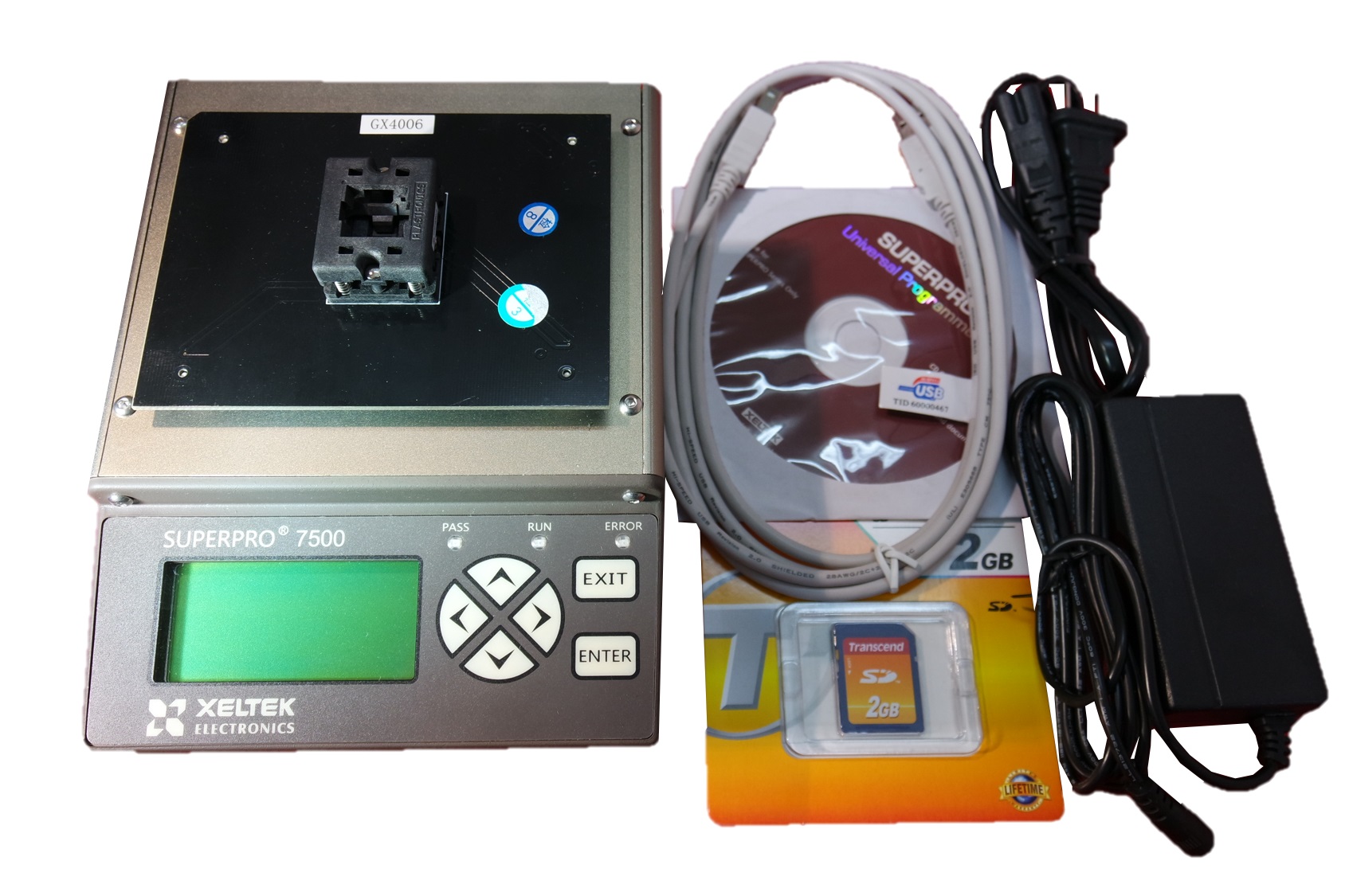

What's in the box



SuperPro 7500N comes with
  • AC Adapter
  • USB Cable
  • SD Card
  • Quick Start Guide
Optional Accessories


Do you have any questions about SuperPro 7500N?


Ask Us Now

Socket adapters sold separately.

To find the compatible adapter for your chip please visit our Device Search Tool.


DIP Socket Adapter:

DX0001(SuperPro 6100/N and SuperPro 6104NGP)

GX0001 (SuperPro 7500/N and SuperPro 7504/N)

Ultra Fast Programming Speed SuperPro 7500N programmers employ a very high speed MCU chip producing not only reliable programming algorithms, but also increasing programming speed. Utilization of ARM11 32bit MCU combined with an internal Linux operating system makes them the most advanced and versatile programmers in the industry. Superpro 7500N offers 30% higher programming speed and 8-10 times faster programming speed for eMMC devices as compared to Superpro 6100.

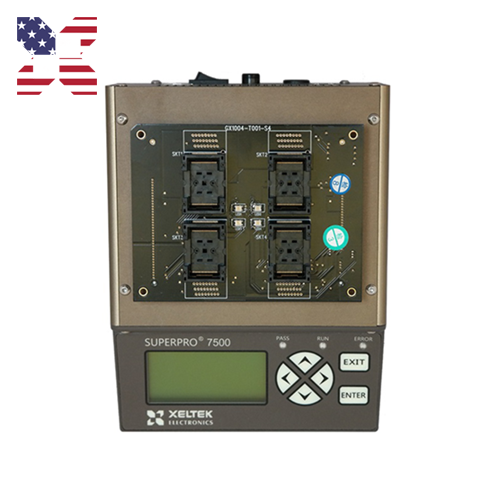

Customized 4 Gang Adapters SuperPro 7500N can be used to program up to 4 chips at a time. Many EEPROM / Flash / MCU / eMMC chips are also supported in 2-Gang or 4-Gang mode to increase throughput by nearly four times!
LAN Mode Most production programming applications need the programmer to be operated remotely. On SuperPro 7500N, remote controlling can be achieved using the LAN port. Using the LAN port, programmers can be connected to a local network and can be remotely controlled via any computer on the network. In this case, the PC which controls the SuperPro 7500N acts as a server and SuperPro 7500N acts as a client.

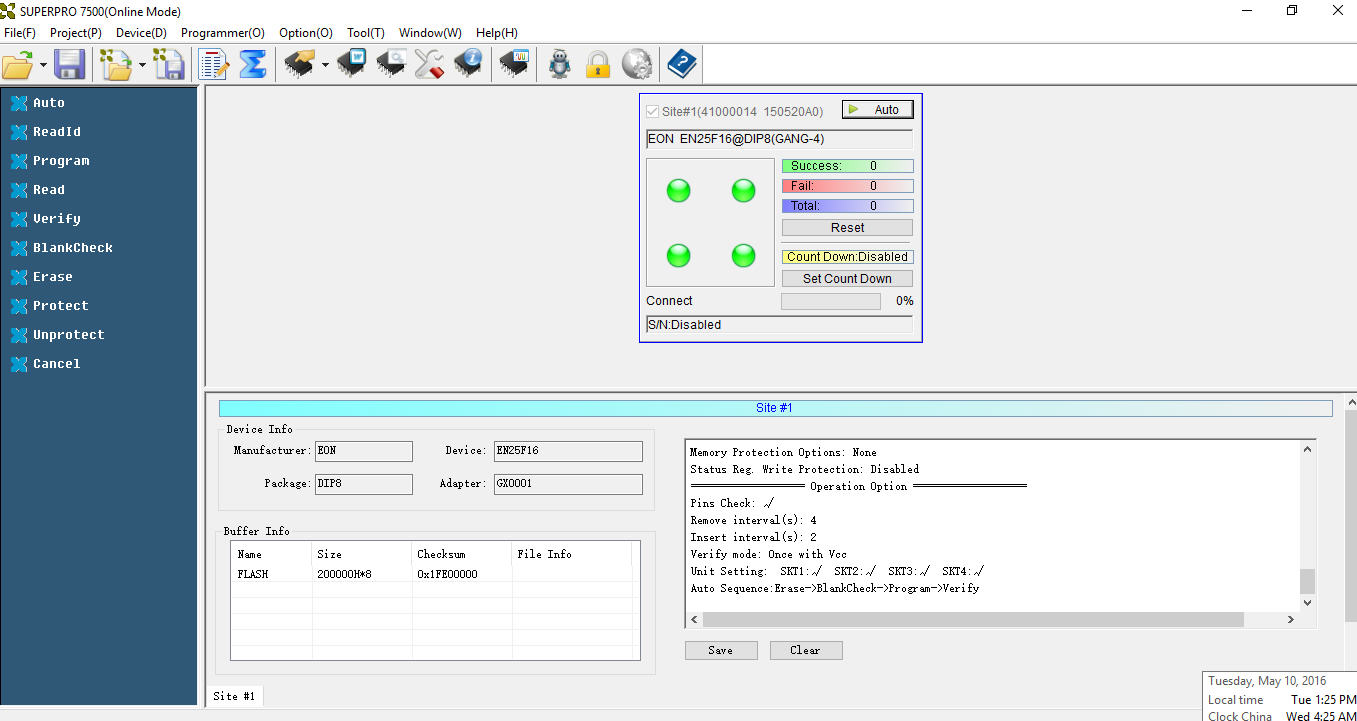

Project Files The project file stores preparations before programming. Users could also restore and save work environment. The project file includes device type, buffer data, operation option settings, configuration bit settings and batch commands. Project files may be password protected to increase security and reliability when operated by untrained operators.
Auto Function The Auto function organizes different functions into a sequential group (erase, blank check, program, verify and protect). Functions are executed in sequential order similar to a batch command.
Production Mode Once a chip is inserted correctly, the programmer automatically starts batch command of erase, blank check, program and verify. Auto chip detection saves time and increases efficiency.
Production Statistics A log file could be used to save operation information before exiting the program. Log files can also be used to facilitate quality tracking.


Factory Mode This mode is designed for factory volume production. To prevent operation errors from destroying chips and wrong data written to the chip, SuperPro will operate in the Auto function mode. The administrator can set a password to prevent unauthorized access to the system.
Auto Recognition of File Types We support almost all kinds of known file formats including file formats with automatic recognition functions: Binary, Intel (linear & segmented) Hex, Motorola S, Tektronix (linear & segmented), JEDEC, POF, etc.
Auto Increment of Serial Numbers Auto-generation of electronic serial numbers is available on Superpro 7500N. This feature is implemented by setting Auto Increment in Operation Option. Auto Increment allows users to add unique serial number into the device. After each successful programming, the software automatically changes the value by the specified increment mode.
Intellectual Property Protection Password settings available in both PC and stand-alone mode.

Hardware and Electrical Specifications


Devices supported

EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU

Package types supported

DIP, SDIP, PLCC, JLCC, PGA, LGA, SOIC, SOJ, SOT, QFP, TQFP, PQFP, VQFP, MQFP, LQFP, TSOP, SOP, TSOPII, PSOP, SSOP, TSSOP, SON, EBGA, FBGA, FTBGA, VFBGA, μBGA, CSP, SCSP, QFN, HVQFN etc.

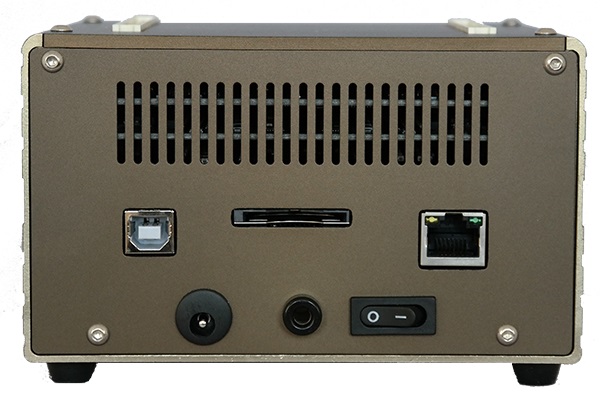

PC interface

USB 2.0, LAN. Windows: XP / Vista / 7 / 8 / 9 / 10 / 11 | 32/64Bits

Stand-alone memory

SD Card

Power supply

AC Adapter: Input AC 100V- 240V; Output: 12V/1.5A

Dimensions

Main unit: 184(L) x 160(W) x 78(H) mm

Package: 310(L) x 250(W) x 145(H) mm

Weight

Main unit: Weight 1.80 lbs (0.80 kg)

Package: Weight 3.80 lbs (1.65 kg)


Expanded Features

  • 144-pin Universal driver
  • For standard NOR/NAND FLASH devices and serial EEPROM/FLASH
  • Four chips can be programmed simultaneously (depends on device type and package).
  • Over 125K+ devices are supported in the SuperPro 7500N library.
  • Powerful NAND FLASH platform library and exclusive solution for specific cases. Supports dozens of popular NAND FLASH platforms. Quick customization for specific requirements available.
  • Built with 144 universal pin-driver. Universal adaptors are available for various packages.
  • The ninth generation of pin-driver technology supplies cleaner signals, wider voltage range, more accurate and higher clock frequency, supports devices with Vcc from 1.2V to 5V.
  • Chip security mechanism with built-in voltage self-correcting circuit to ensure the voltage is within a preset range.
  • Over-current and over-voltage protection for chip and programmer hardware.
  • Powerful, yet user-friendly software features streamline operations, improve efficiency, and reduce user mistakes during programming operations.
  • Quick free technical and new device support
