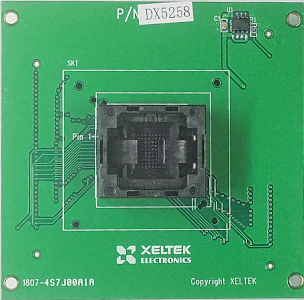

Socket Adapter Specifications
| Package type | BGA80 |
|---|---|
| Adapter type | Opentop |
| Socket size | 30x26mm |
| Body size | 11x13mm |
| Pitch | 1mm |
| Size 1 | 8x10mm |
| Size 2 |
1.4x0.6x0.5mm
|
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
