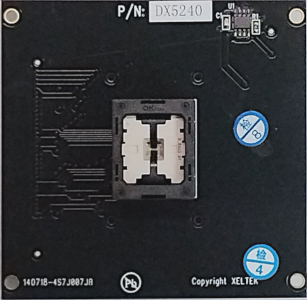

Socket Adapter Specifications
| Package type | BGA66 |
|---|---|
| Adapter type | Opentop |
| Socket size | 31x45mm |
| Body size | 3.64x4mm |
| Pitch | 0.4mm |
| Size 1 | 9x9mm |
| Size 2 | 0.57x0.27x0.19mm |
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
