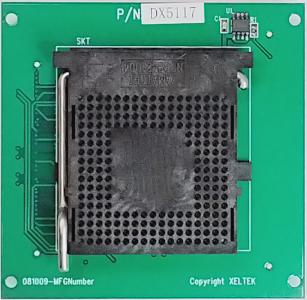

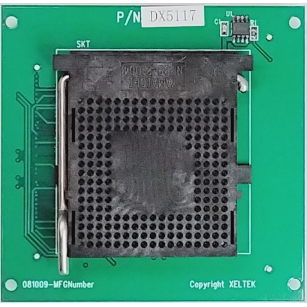

Socket Adapter Specifications
| Package type | PGA192 |
|---|---|
| Adapter type | ZIF |
| Socket size | 57x66mm |
| Body size | 45x45mm |
| Pitch | 2.54 mm |
| Size 1 | 17x17mm |
| Size 2 |
N/A
|
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
