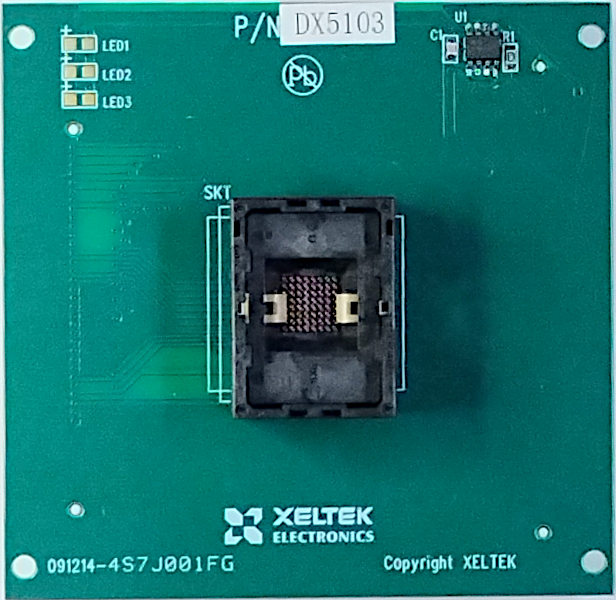

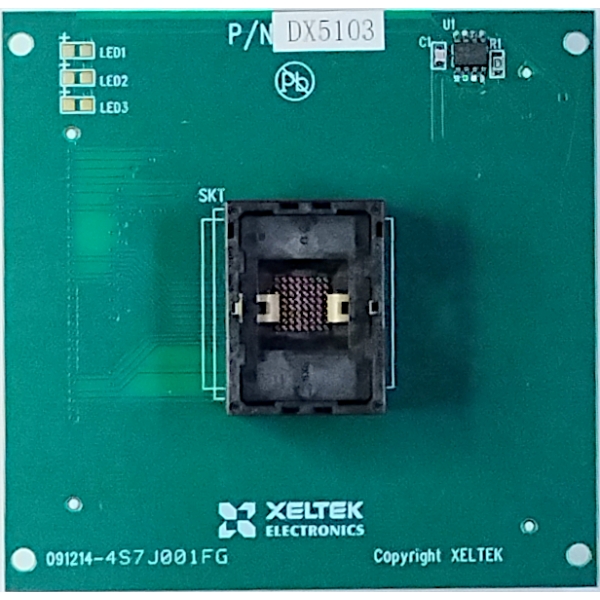

Socket Adapter Specifications
| Package type | BGA64 |
|---|---|
| Adapter type | Opentop |
| Socket size | 26x36mm |
| Body size | 9x9mm |
| Pitch | 1mm |
| Size 1 | 8x8mm |
| Size 2 | 1.2x0.6x0.5mm |
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
