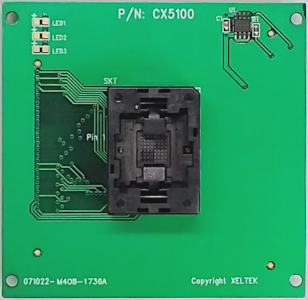

Socket Adapter Specifications
| Package type | BGA64 |
|---|---|
| Adapter type | Opentop |
| Socket size | 26x36mm |
| Body size | 9x10mm |
| Pitch | 1.0mm |
| Size 1 | 8x8mm |
| Size 2 | 0.9x0.4x0.3mm |
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
