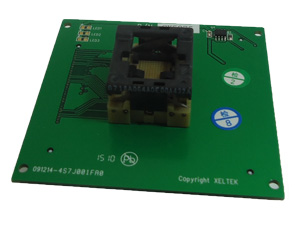

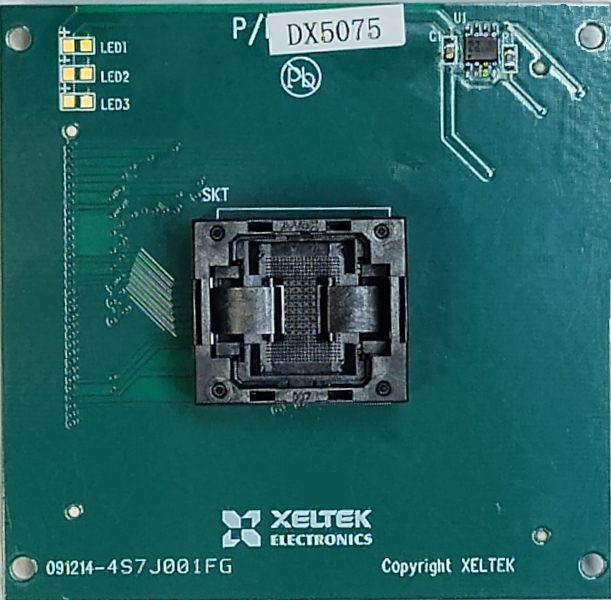

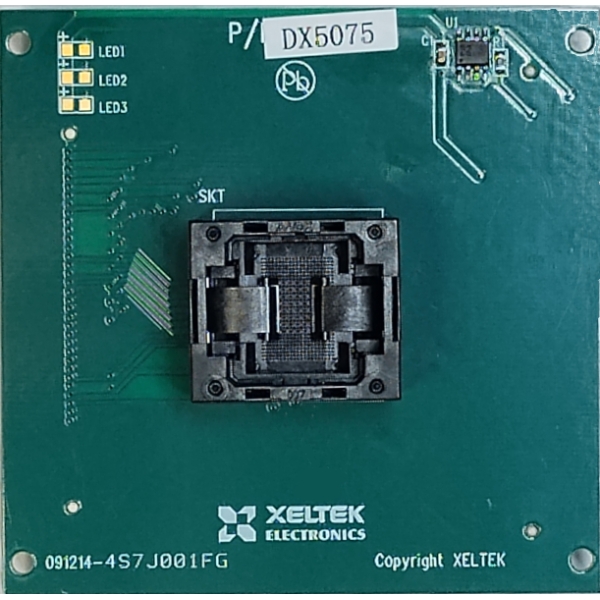

Socket Adapter Specifications
| Package type | BGA64 |
|---|---|
| Adapter type | OPENTOP |
| Socket size | 27x49mm |
| Body size | 12x18mm |
| Pitch | 1mm |
| Size 1 | 8x8mm |
| Size 2 |
N/A
|
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
