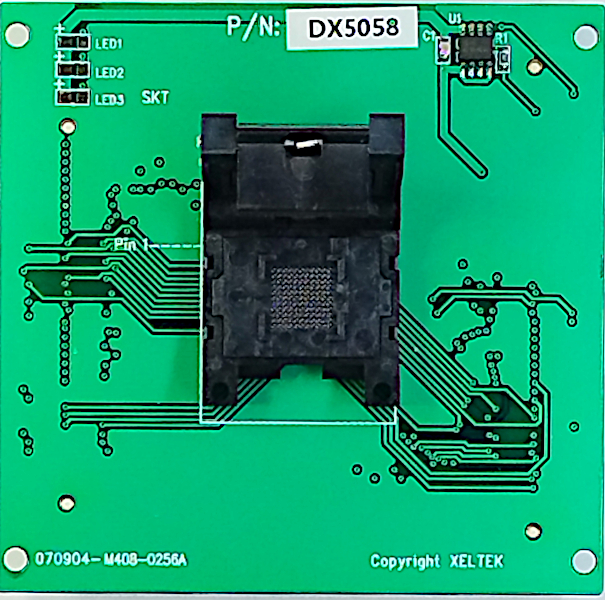

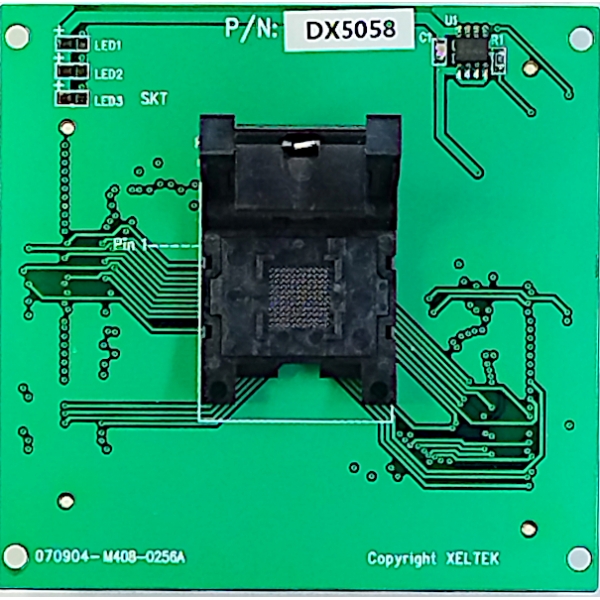

Socket Adapter Specifications
| Package type | BGA121 |
|---|---|
| Adapter type | OPENTOP |
| Socket size | 28x35mm |
| Body size | 10x10mm |
| Pitch | 0.8mm |
| Size 1 | 11x11mm |
| Size 2 | 1.2x0.4x0.3mm |
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
