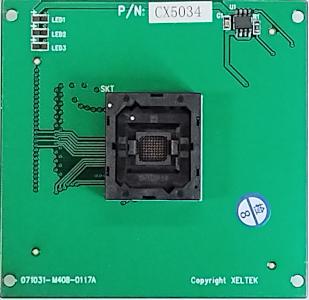

Socket Adapter Specifications
| Package type | BGA56 |
|---|---|
| Adapter type | OPENTOP |
| Socket size | 27x30mm |
| Body size | 13x12mm |
| Pitch | 0.75mm |
| Size 1 | 8x7mm |
| Size 2 | 1.0x0.4x0.3mm |
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
