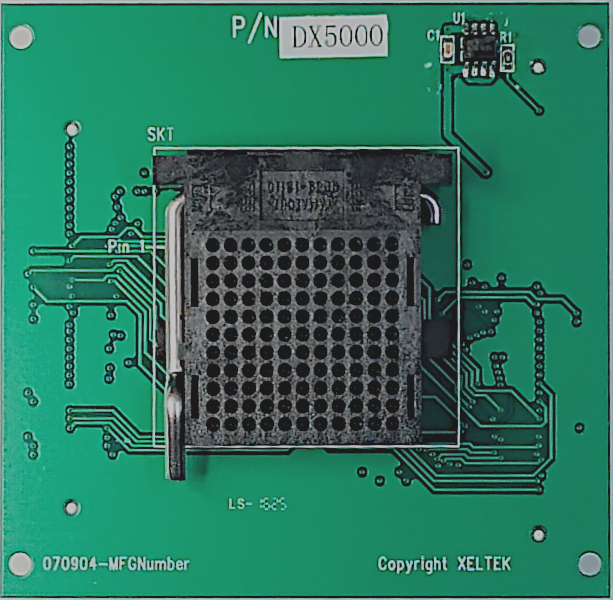

Socket Adapter Specifications
| Package type | PGA121 |
|---|---|
| Adapter type | ZIF |
| Socket size | 43x47mm |
| Body size | N/A |
| Pitch | 2.5mm |
| Size 1 | 11x11mm |
| Size 2 |
N/A
|
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
