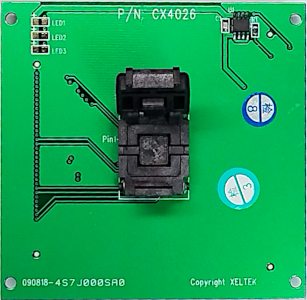

Socket Adapter Specifications
| Package type | BGA72 |
|---|---|
| Adapter type | OPENTOP |
| Socket size | 22x26mm |
| Body size | 8x12mm |
| Pitch | 0.8mm |
| Size 1 | 8x12mm |
| Size 2 |
1.4x0.4x0.3mm
|
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
