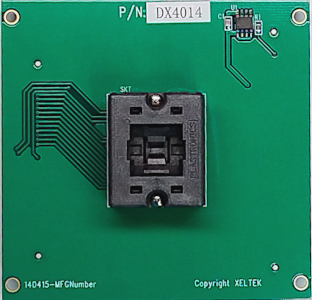

Socket Adapter Specifications
| Package type | QFN28 |
|---|---|
| Adapter type | COVER |
| Socket size | 20x27mm |
| Body size | 6x6mm |
| Pitch | 0.65mm |
| Size 1 | N/A |
| Size 2 | N/A |
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Package: QFN28 Socket Type: Cover Socket Size: 20.32*27.43 Pitch: 0.65 Body Size: 6*6 Size1: Size2: Programmer: SuperPro 6100/6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
