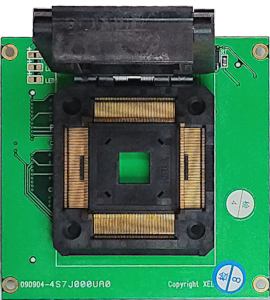

Socket Adapter Specifications
| Package type | QFP208 |
|---|---|
| Adapter type | COVER |
| Socket size | 52x58mm |
| Body size | 28x28mm |
| Pitch | 0.5mm |
| Size 1 | 30x30mm |
| Size 2 |
31x31mm
|
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
SEARCH
| Manual Tray (Standard equipped) Standard I/O device of the machine. Operator will replace the programmed tray from the SuperBot machine manually after the full tray is programmed. Customer does not need to buy any other accessory while using this option. |
| Auto Tray Device This device is an extension of the fixed tray. It includes tray-in and tray-out and users can put 20 trays into the device. When the machine is running, users can add trays or take out trays without stopping the machine. The auto tray device can also be installed outside of the whole machine and trays can be automatically changed without the need to open the upper cover, which saves tray changeover space and avoid human error during tray changeover. The auto tray device can stack up to 20 JEDEC trays. Watch video |
| Tape-In Device Electric Tape in feeder. Tape width between 8 and 32mm applicable. Tape-in device can be configured as per the chip to be programmed. For SOIC and TSOP packages customer will need 2-3 types of different tape in the devices depending on the width of chips to be programmed. Watch video |
| Tape-Out Device Connects to a SuperBOT2 or SuperBOT3 for fully automatic operation. 8-32 mm tape widths can be used with the device. Output reel is sealed with heated tape. Watch video |
| Tube-In Moves chips in the machine. Chip guider for different chip width (optional). IO is multi feed and upto 8 tubes can be operated at once (optional). Tube IO pages should also be updated accordingly. |
| Tube-Out Moves chips out of the machine. Chip guider for different chip width (optional). IO is multi feed and upto 8 tubes can be operated at once (optional). Tube IO pages should also be updated accordingly. Watch video |
| Laser Marker System An optional attachment to the tape-out or the auto tray device for high speed marking. It marks up to 4 characters on the passed chips. Watch video |
| Tape Ink-Marker Add-on item for tape out machine. On completion of programming the chip can be automatically marked with a point using ink (optional). Watch video. Tray Ink Marker Add-on item for auto tray machine. On completion of the programming the chip can be automatically marked with a point using ink (optional). Watch video |
