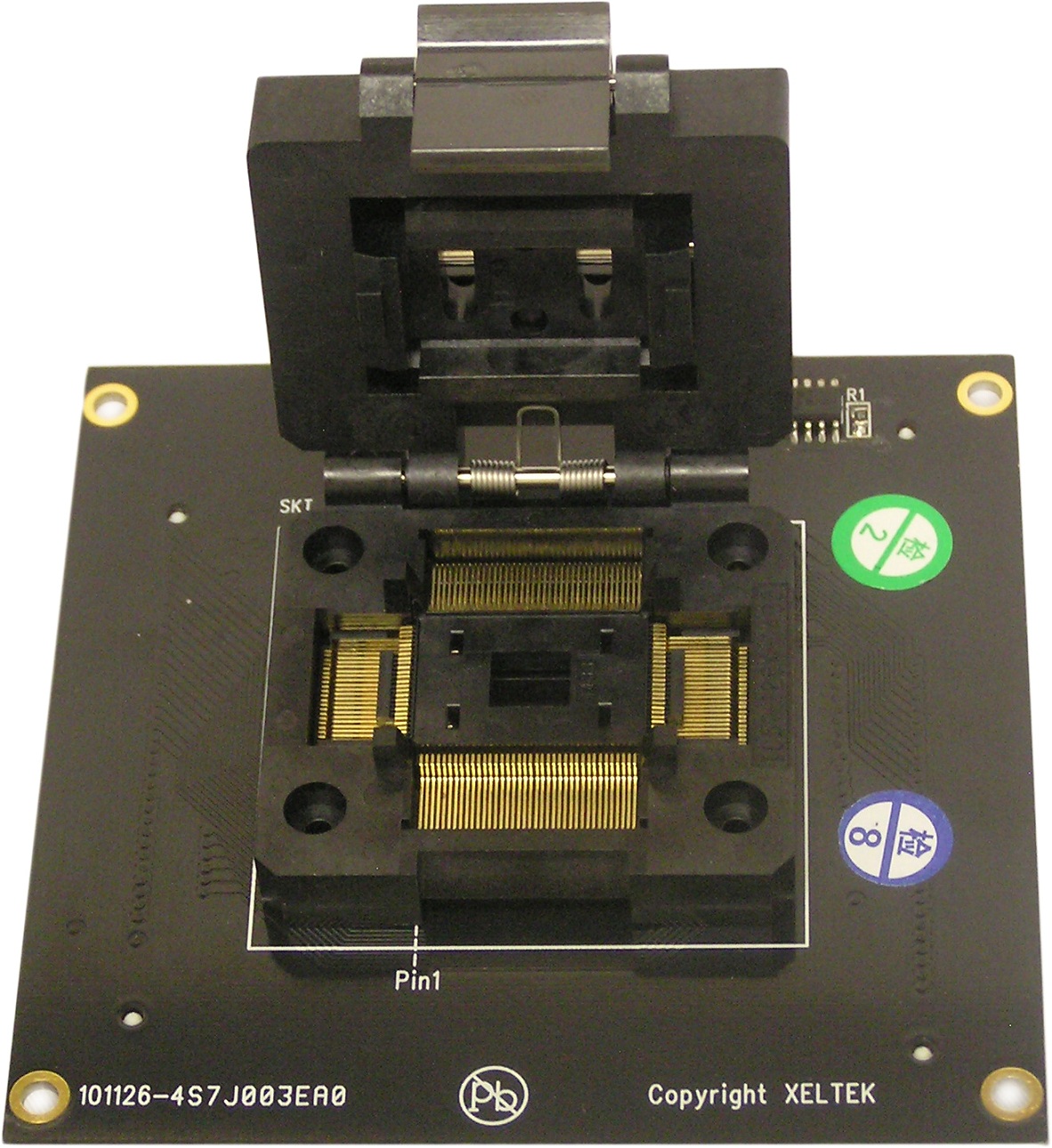

Socket Adapter Specifications
| Package type | QFP128 |
|---|---|
| Adapter type | COVER |
| Socket size | 46x43mm |
| Body size | 14x21mm |
| Pitch | 0.5mm |
| Size 1 | 15x21mm |
| Size 2 | 16x22mm |
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
