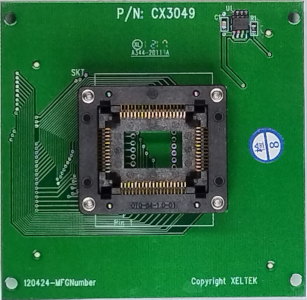

Socket Adapter Specifications
| Package type | QFP64 |
|---|---|
| Adapter type | Opentop |
| Socket size | 42x36mm |
| Body size | 20x16mm |
| Pitch | 1mm |
| Size 1 | 24x18mm |
| Size 2 |
25x20mm
|
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
