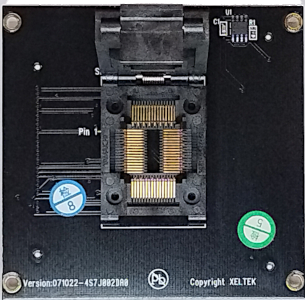

Socket Adapter Specifications
| Package type | QFP64 |
|---|---|
| Adapter type | COVER |
| Socket size | 30x42mm |
| Body size | 14x14mm |
| Pitch | 0.8mm |
| Size 1 | 16x16mm |
| Size 2 |
17x17mm
|
Compatible programmers: SuperPro 6100, SuperPro 6104GP
ckage: QFP64
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
