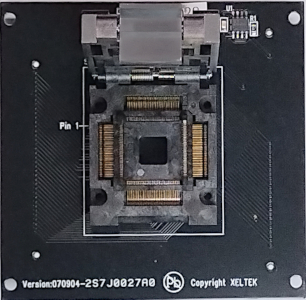

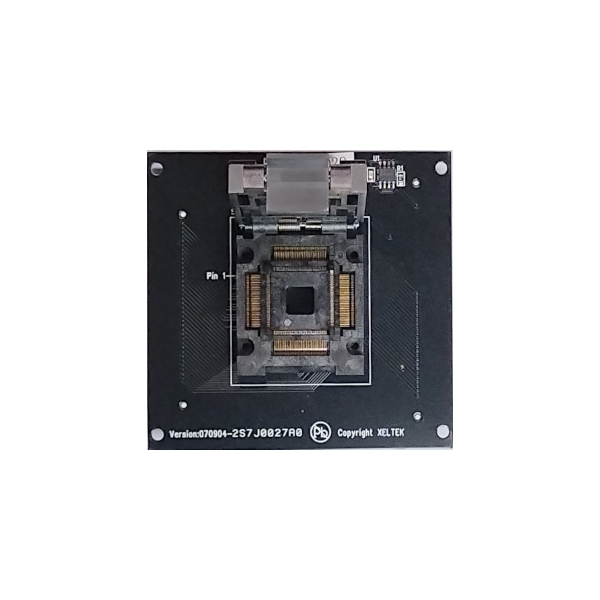

Socket Adapter Specifications
| Package type | QFP120 |
|---|---|
| Adapter type | COVER |
| Socket size | 40x43mm |
| Body size | 16x16mm |
| Pitch | 0.5mm |
| Size 1 | 17x17mm |
| Size 2 | 18x18mm |
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
