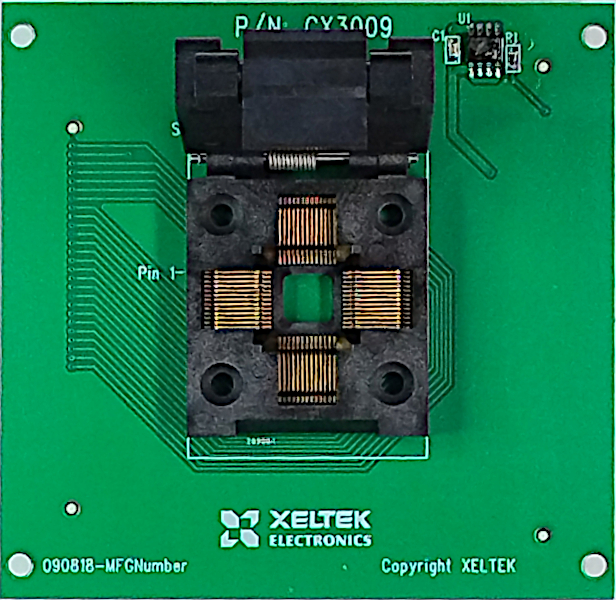

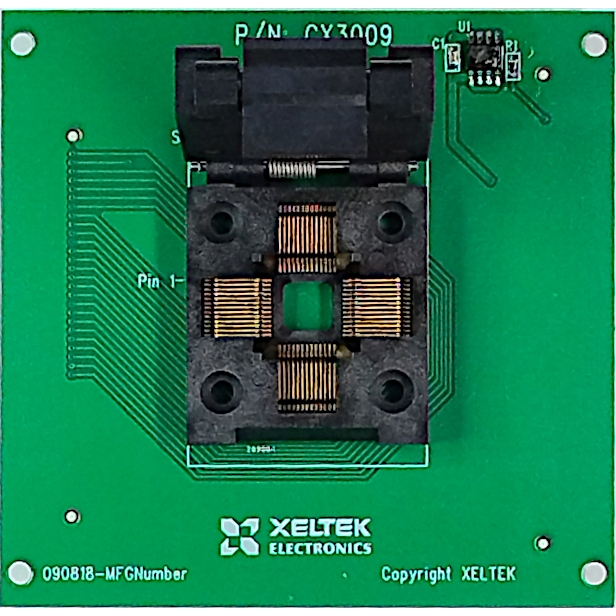

Socket Adapter Specifications
| Package type | QFP52 |
|---|---|
| Adapter type | COVER |
| Socket size | 34x45mm |
| Body size | 0.65mm |
| Pitch | 0.65mm |
| Size 1 | 12x12mm |
| Size 2 |
14x14mm
|
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
