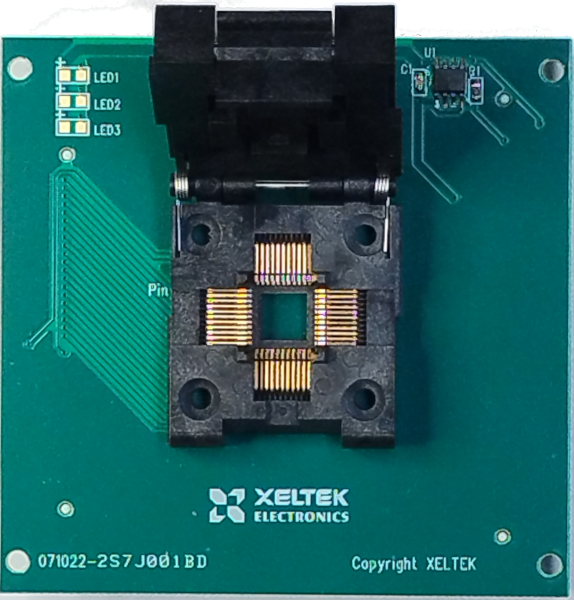

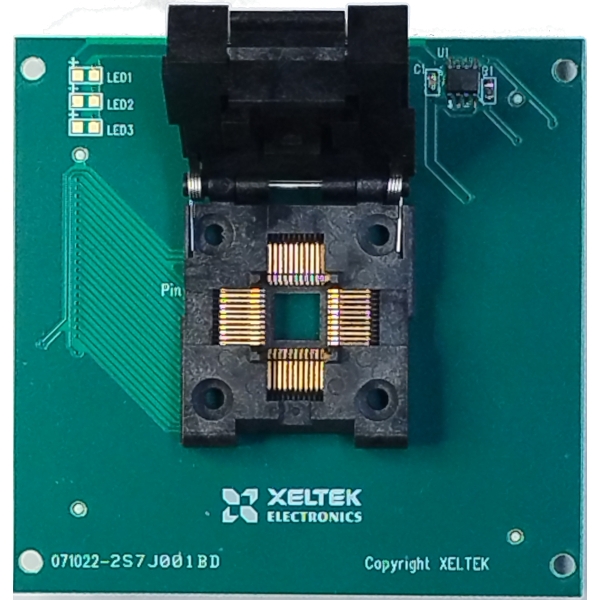

Socket Adapter Specifications
| Package type | QPF44 |
|---|---|
| Adapter type | COVER |
| Socket size | 34x40mm |
| Body size | 10x10mm |
| Pitch | 0.8mm |
| Size 1 | 12x12mm |
| Size 2 | 12x12mm |
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
