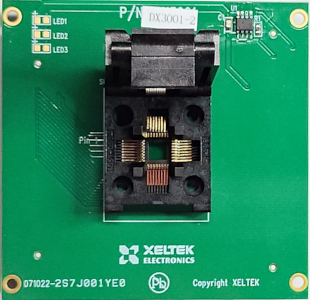

Socket Adapter Specifications
| Package type | QFP32 |
|---|---|
| Adapter type | COVER |
| Socket size | 30x38mm |
| Body size | 7x7mm |
| Pitch | 0.8mm |
| Size 1 | 8x8mm |
| Size 2 | 9x9mm |
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
