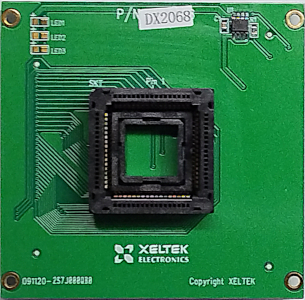

Socket Adapter Specifications
| Package type | PLCC68 |
|---|---|
| Adapter type | Opentop |
| Socket size | 35x35mm |
| Body size | 24x24mm |
| Pitch | 1.27mm |
| Size 1 | N/A |
| Size 2 | 25x25mm |
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
