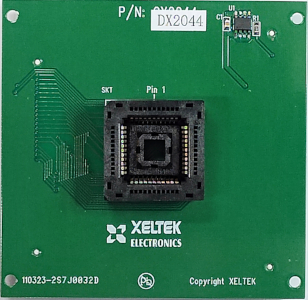

Socket Adapter Specifications
| Package type | PLCC44 |
|---|---|
| Adapter type | Opentop |
| Socket size | 28x28mm |
| Body size | 17x17mm |
| Pitch | 1.27mm |
| Size 1 | N/A |
| Size 2 | 18x18mm |
Equivalent Socket Adapters: DX/CX2144 - Clam Shell Socket Adapter
Compatible programmers: SuperPro 6100N, SuperPro 6104NGP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
