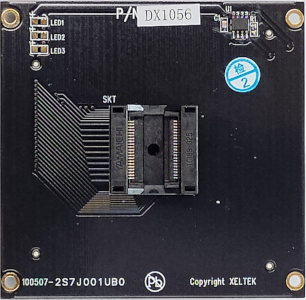

Socket Adapter Specifications
| Package type | SSOP42 |
|---|---|
| Adapter type | Opentop |
| Socket size | 25x25 mm |
| Body size | 8.4 mm |
| Pitch | 0.8 mm |
| Size 1 | N/A |
| Size 2 |
12 mm
|
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
