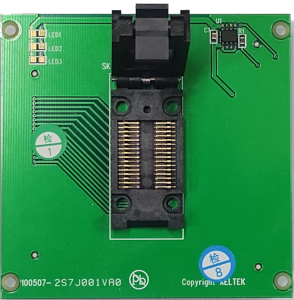

Socket Adapter Specifications
| Package type | SOIC32 |
|---|---|
| Adapter type | COVER |
| Socket size | 21x51 mm |
| Body size | 10 mm |
| Pitch | 1.27 mm |
| Size 1 | 12.5 mm |
| Size 2 | 14.2 mm |
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
