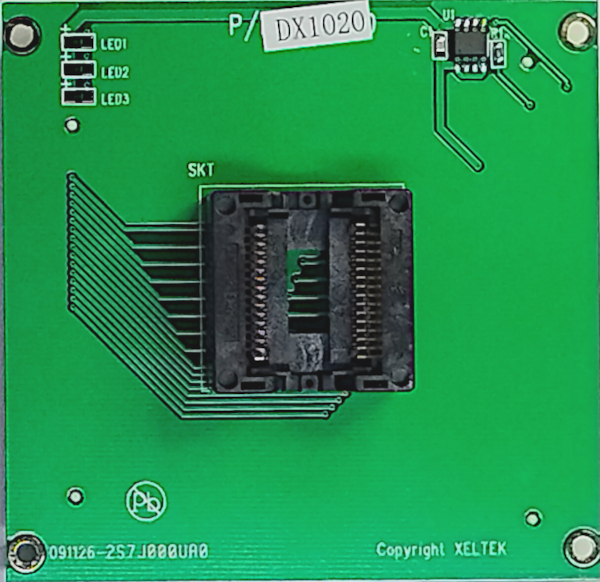

Socket Adapter Specifications
| Package type | SOP32 |
|---|---|
| Adapter type | Opentop |
| Socket size | 29x29 mm |
| Body size | 11.25 mm |
| Pitch | 1.27 mm |
| Size 1 | 12.6 mm |
| Size 2 | 14.12 mm |
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
