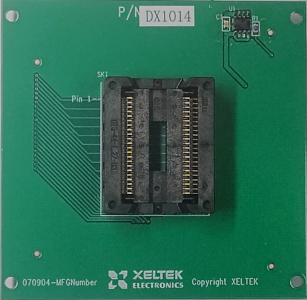

Socket Adapter Specifications
| Package type | PSOP44 |
|---|---|
| Adapter type | Opentop |
| Socket size | 30.8x38 mm |
| Body size | 13.3 mm |
| Pitch | 1.27 mm |
| Size 1 | 14.4 mm |
| Size 2 | 16 mm |
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
