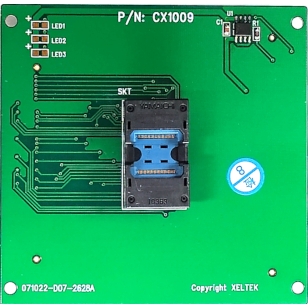

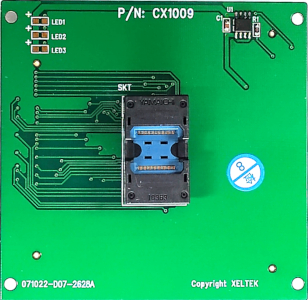

Socket Adapter Specifications
| Package type | TSOP52 |
|---|---|
| Adapter type | Opentop |
| Socket size | 16x30.5 mm |
| Body size | 8.89 mm |
| Pitch | 0.4 mm |
| Size 1 | N/A |
| Size 2 | 10.39 |
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
