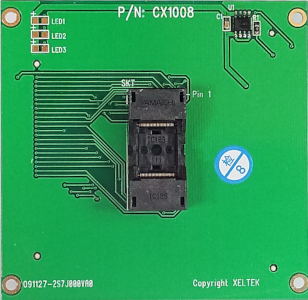

Socket Adapter Specifications
| Package type | TSOP45 |
|---|---|
| Adapter type | Opentop |
| Socket size | 16x34 mm |
| Body size | 12.4 mm |
| Pitch | 0.4 mm |
| Size 1 | 14 mm |
| Size 2 | 16 mm |
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
