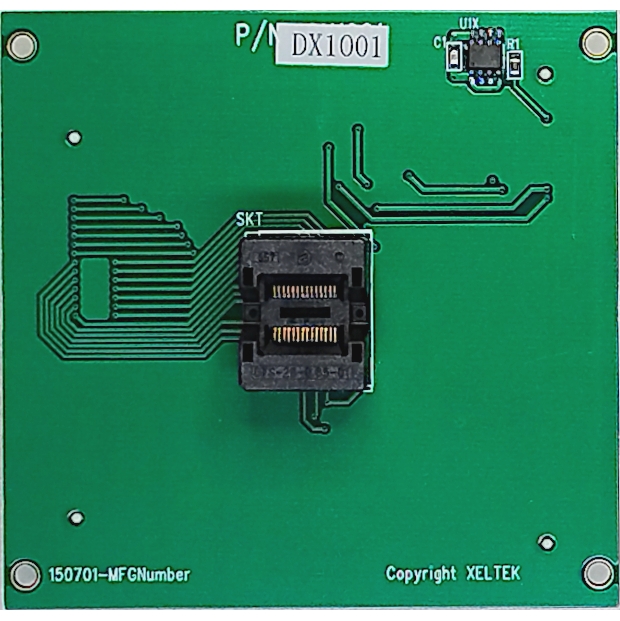

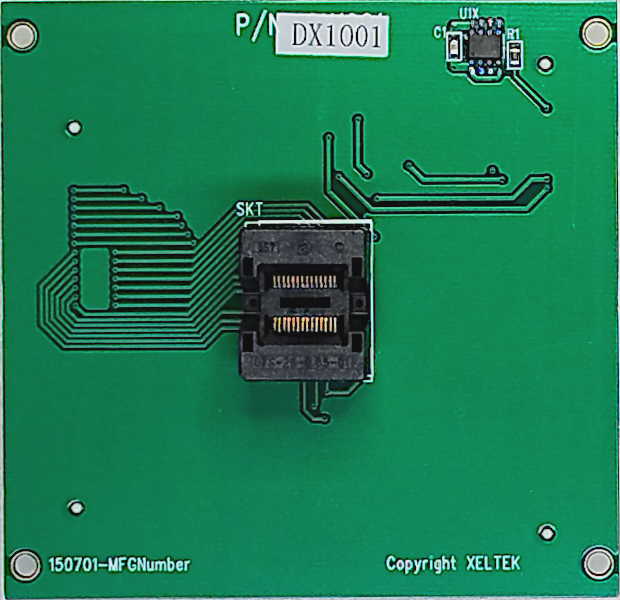

Socket Adapter Specifications
| Package type | TSOP28 |
|---|---|
| Adapter type | OPEN TOP |
| Socket size | 21.5x17.6 mm |
| Body size | 4.4 mm |
| Pitch | 0.65 mm |
| Size 1 | 5.2 mm |
| Size 2 | 6.4 mm |
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
