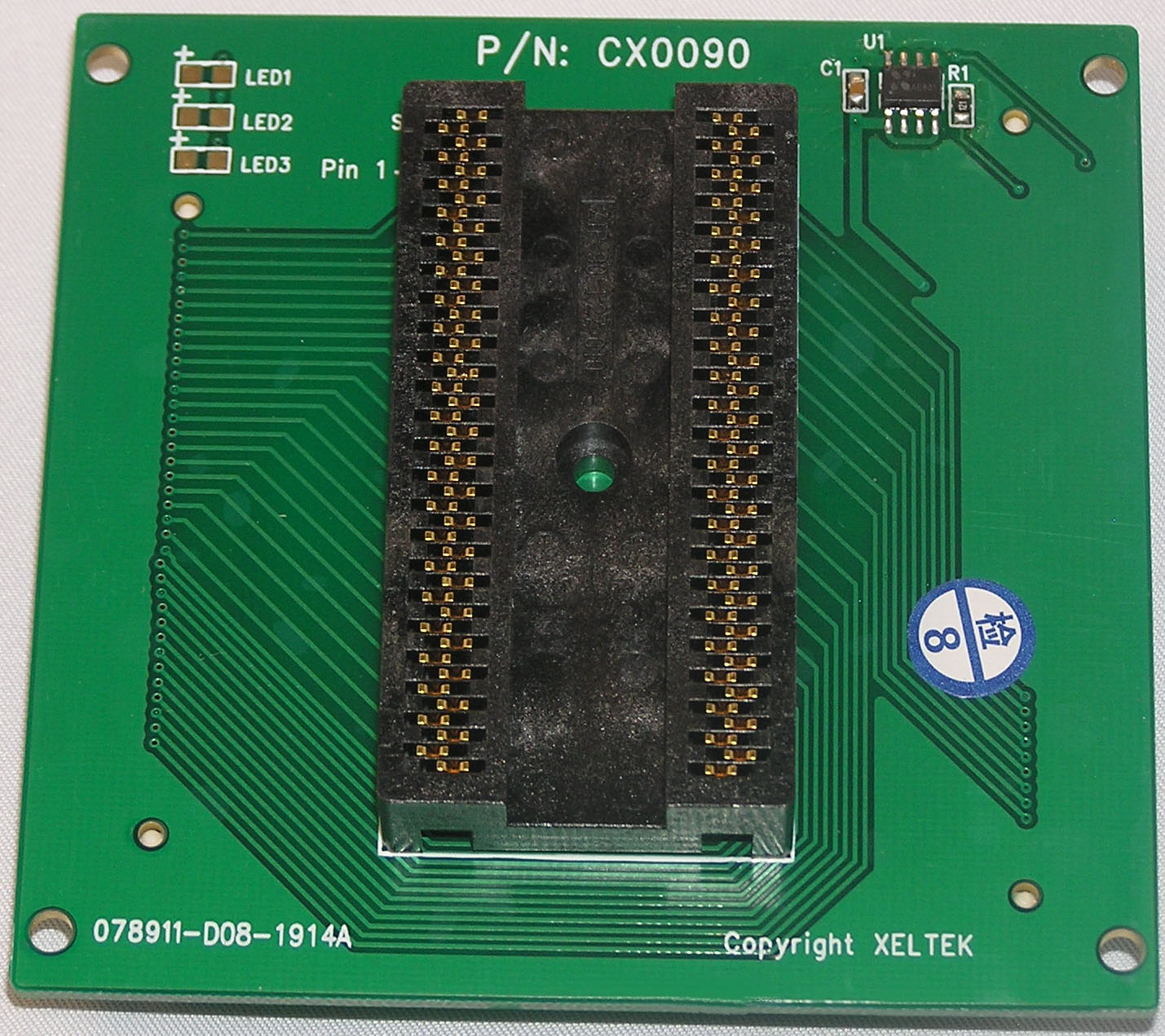

Socket Adapter Specifications
| Package type | QIP90 |
|---|---|
| Adapter type | INSERT |
| Socket size | 31.6x62 mm |
| Body size | 17 mm |
| Pitch | 1.27 mm |
| Size 1 | 19.33 mm |
| Size 2 |
22.37 mm
|
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
