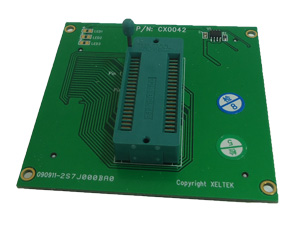

Socket Adapter Specifications
| Package type | SDIP42 |
|---|---|
| Adapter type | ZIF |
| Socket size | 22.9x52.9 mm |
| Body size | 15.24 mm |
| Pitch | 1.778 mm |
| Size 1 | N/A |
| Size 2 | N/A |
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
