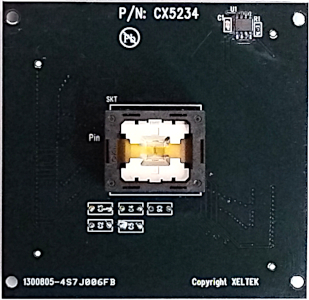

Socket Adapter Specifications
| Package type | BGA100 |
|---|---|
| Adapter type | Opentop |
| Socket size | 23x28mm |
| Body size | 6x6mm |
| Pitch | 0.5mm |
| Size 1 | 10x10mm |
| Size 2 | 1.4x0.3x0.2mm |
Compatible programmers: SuperPro 6100, SuperPro 6104GP
Warranty Support
All socket adapters come with 30 days warranty. User induced damage is not covered.
