Choosing the Correct Xeltek Socket Adapter for Your Programmable Chip
Xeltek has three different methods to help you distinguish between different socket adapters and choose the most suitable one for your programmer.

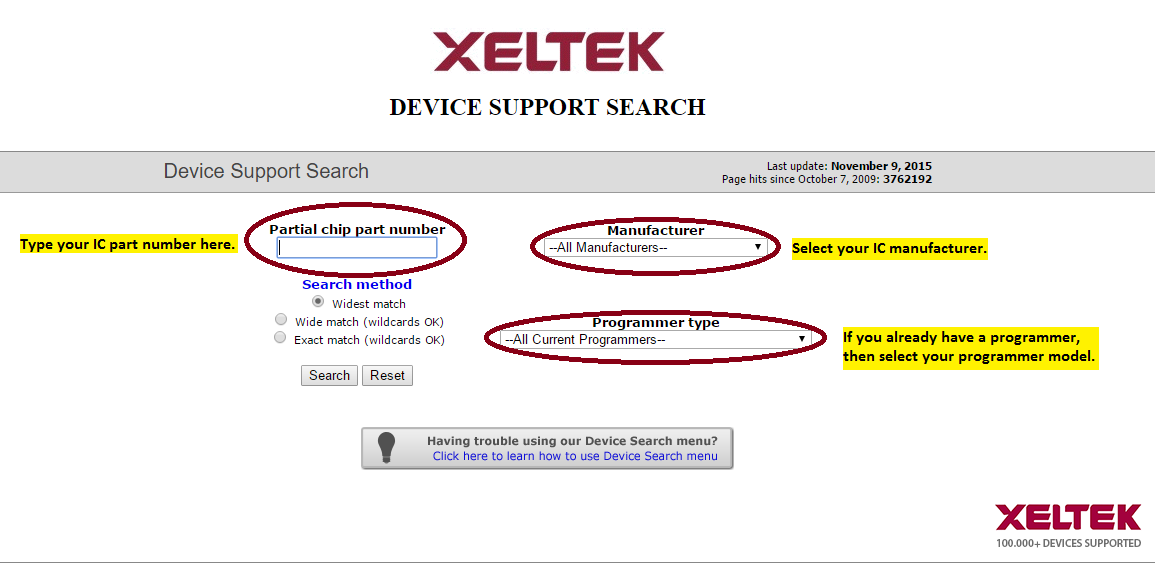

Device Search Tool
2) The SuperPro programming software could also be used to locate the correct socket adapter . Download the programmer software then run software in demo mode (no hardware connected needed). Click the Device button and enter the device part number in the 'Search' field.
Note: Recent device updates will not show up if programmer software is not updated.

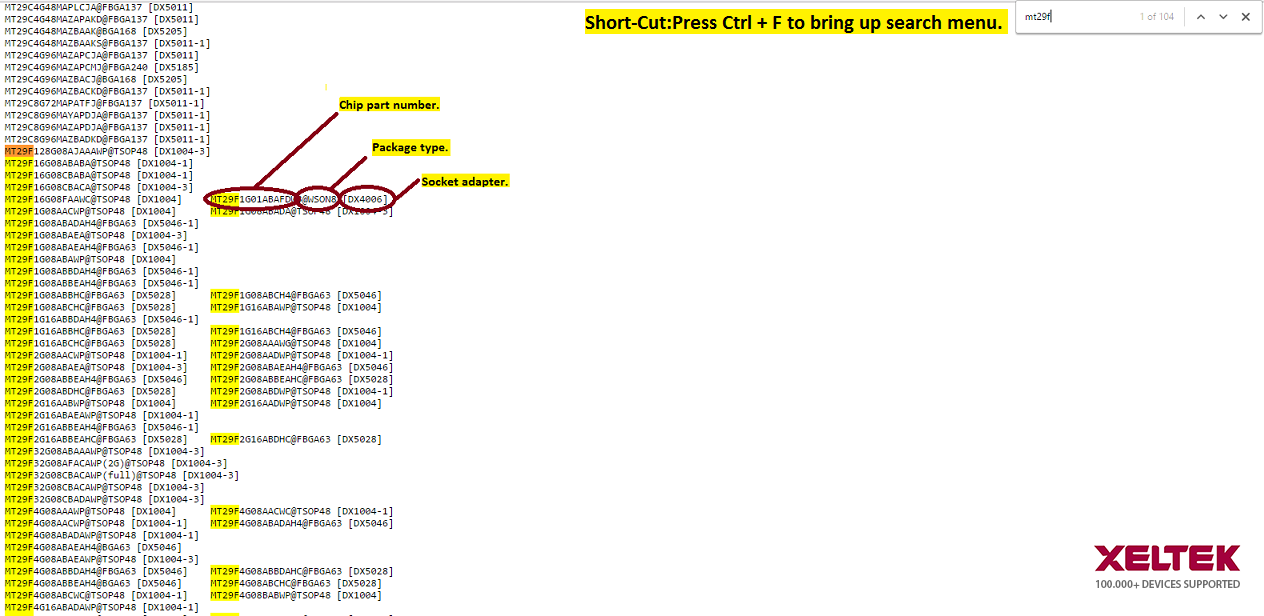

3) User could check if their device is supported using the device list, such as the SuperPro 6100 device list. To search, select 'Edit Find (shortcut: Ctrl + F) from the browser's Menu bar. Copy and Paste the device part number into the search box and the matched part number with the socket adapter model will be highlighted.
Note: This method does not support incorrect searches, the correct chip part number must be entered. User should know the programmer model before performing a search in order to locate the correct device list.
Note: 144 pin driver programmers like the SuperPro 6100 and SuperPro 6104GP only support the DX series socket adapters and SuperPro only supports GX series adapters. SuperPro 610P and SuperPro 611S and older programmers with 48-pin drivers only support SA and TA socket adapters.
