Overview

The SuperPro 6100N and SuperPro 7500N are multi-purpose, high-speed universal IC programmers designed for both R&D and production environments. These programmers support two operating modes: PC mode and standalone mode.

Standalone Mode Details

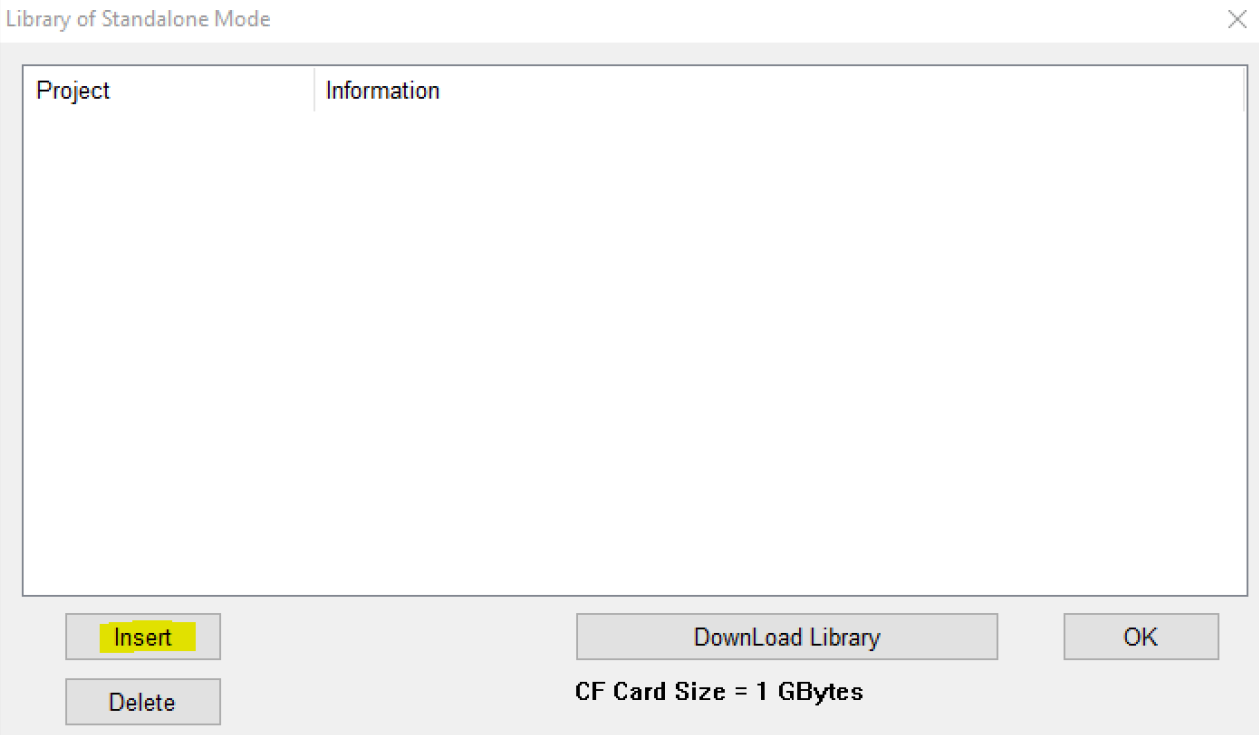

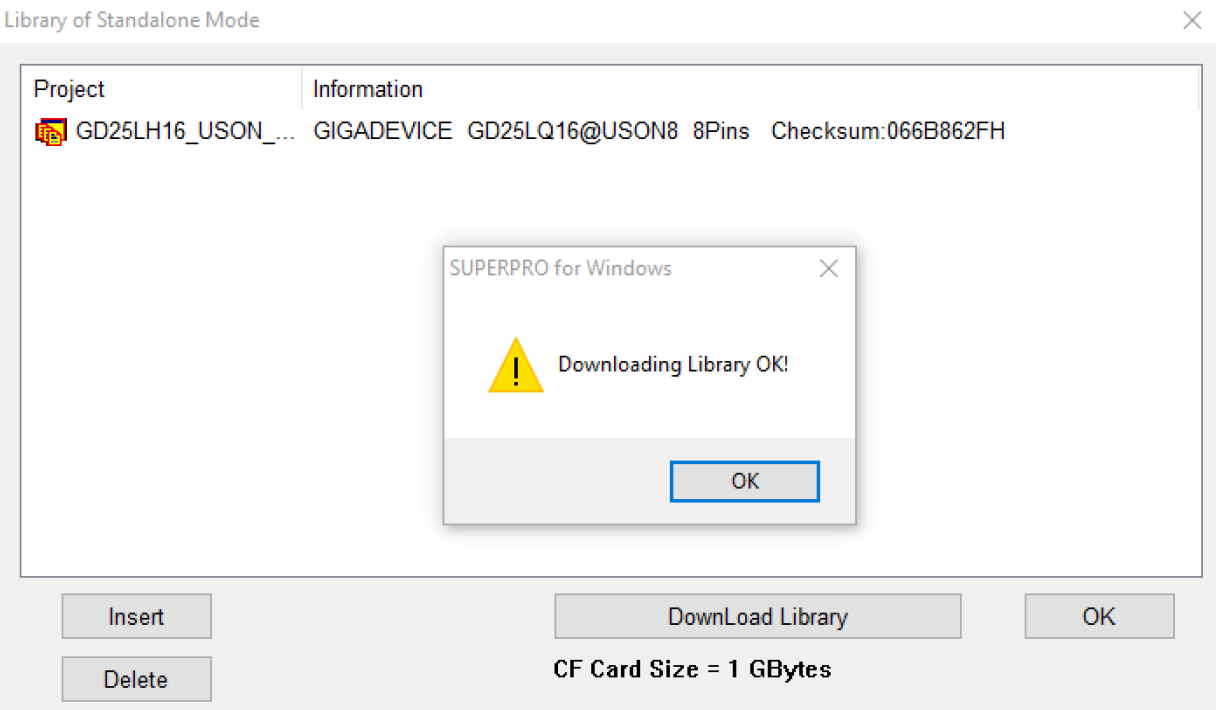

Before using standalone mode, programming data and device settings must be downloaded into the programmer memory or Compact Flash card. Device programming algorithms, user data, device configuration, and Auto programming sequences are combined into one project file.

The Compact Flash card can store multiple project files as long as memory space allows. It also provides a data buffer area for programming. For example, a 4GB card can store hundreds of project files. Standalone mode is commonly used for volume production operation.

Main Standalone Menu Functions

1. RUN

Enter this menu to complete practical device operations. Common features include:

• AUTO — Executes a user-defined sequence of functions stored in the project file.
• PROGRAM — Writes buffer data to the chip.
• READ — Reads chip data into the CF card. This may change the user project file.
• BLANK CHECK — Checks whether the chip is blank.
• VERIFY — Compares chip data with buffer data and reports an error if there is a mismatch.
• ERASE — Erases the chip.
• SECURE — Protects the chip.

2. SELECT PROJECT

Press ENTER when this option appears, then scroll to select the appropriate project file. If the project has a password, use the keypad to enter the password.

3. BUFFER

• CHECK SUM — Calculates the checksum of the buffer data and compares it with the previously saved value.
• Display BUFFER — Displays the content in the buffer for review or modification.
• Display BUFFER 1 — Shows BUFFER1 content.

4. SETTING

• PRODUCTION MODE — When enabled, programming begins automatically after a chip is inserted.
• AUTO CHECKSUM — Automatically provides the checksum value before programming begins.
• PIN CHECK — Checks proper chip insertion before programming.
• ID CHECK — Automatically checks the chip ID before operation.
• READ OPTION — Reads chip content and saves it into the buffer for visual inspection.
• BUZZER — Sounds a beep at the end of the programming operation.
• CHIP COUNTER — Counts successful and failed programming operations.

Benefits of Standalone Programming Mode

1. Users can operate clusters of standalone programmers to achieve high-volume production.
2. SuperPro programmers in standalone mode can be used by operators with minimal training. A project file contains all required setup and programming data, reducing the chance of operator error.
3. Multiple project files can be stored on one Compact Flash card. Once the project file is selected, the operator only needs to insert a blank chip and remove the programmed chip after the programmer beeps.
4. Data security is maintained by removing the Compact Flash card at the end of operation. This is useful for manufacturing lines where data protection is important.
5. Standalone mode helps reduce the cost of additional PCs and lowers the need for a trained PC software operator.
