Xeltek Tape Ink Marker

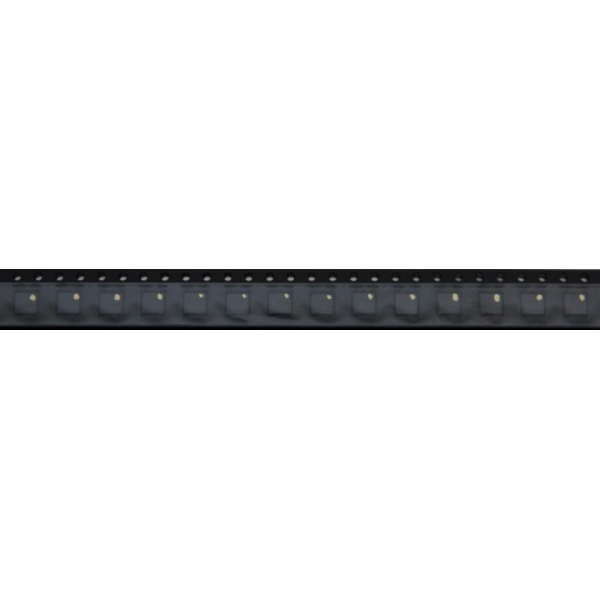

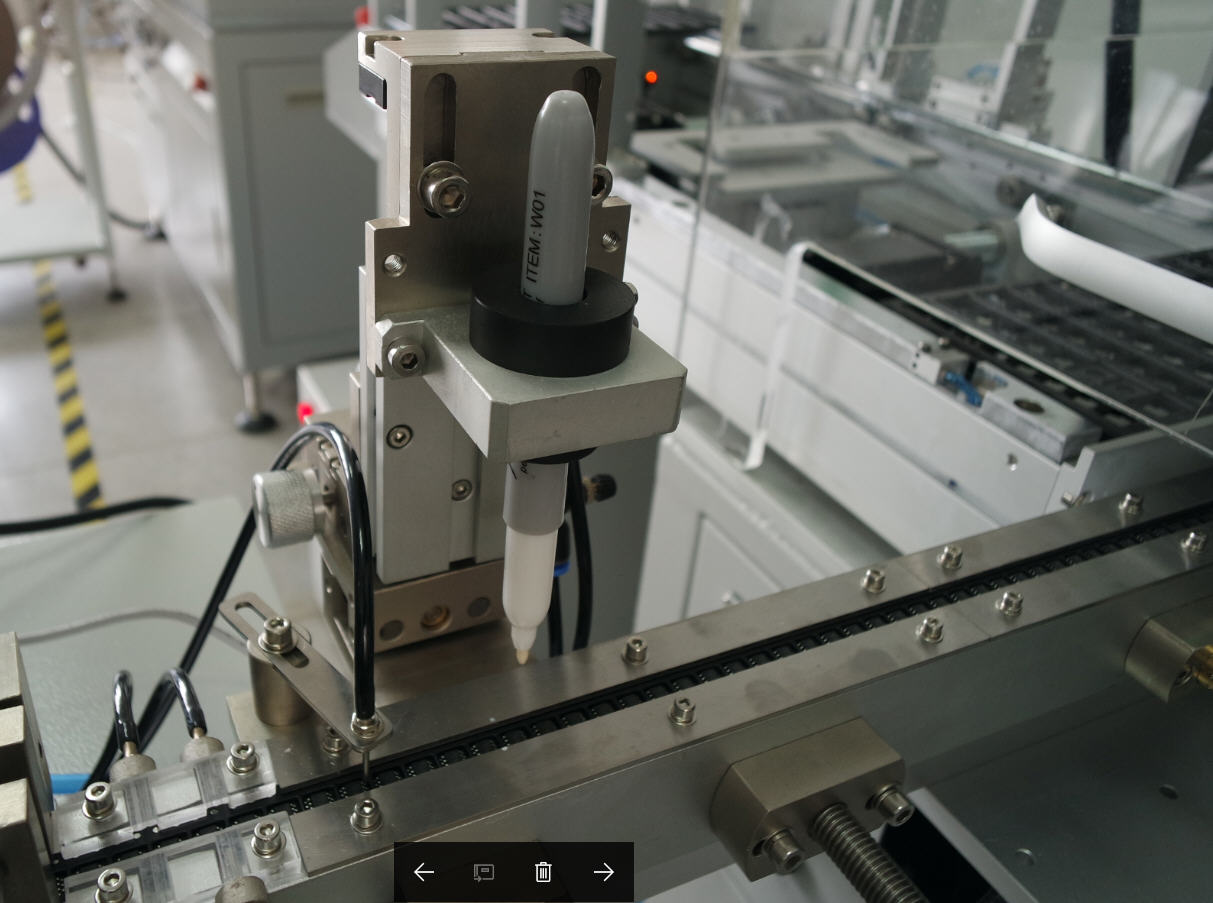

Tape ink Marker is an add-on item for tape out machine. On completion of programming, the chip can be automatically marked with a dot using ink marker.
More than 30 engineers are devoted to developing new programmers, socket adapters and device algorithms. Engineers are fluent in English and provide excellent direct support through emails, telephone, live chat and online ticketing system.
- Quick device update (2 weeks upon customer request)
- Bi-weekly software updates (Free download)
- Xeltek provides a first 5 years hand-holding support for free!
- Xeltek provides free defective hardware parts replacement for the first year from the date of installation. On-site replacement shall be performed by the Customer.
- Common Spare parts kit included with Automated programmer.
- Xeltek ships additional emergency spare parts within 24 hours upon request.
With the 2 operations (Xeltek China and Xeltek USA) providing 24 hours of continuous support world-wide we are able to resolve customer technical support issues quickly.
Find out more: https://pages.xeltek.com/superbot-tech-support/
Manual Tray (Standard equipped) Standard I/O device of the machine. Operator will replace the programmed tray from the SuperBot machine manually after the full tray is programmed. Customer does not need to buy any other accessory while using this option.
Auto Tray Device This device is an extension of the fixed tray. It includes tray-in and tray-out and users can put 20 trays into the device. When the machine is running, users can add trays or take out trays without stopping the machine. The auto tray device can also be installed outside of the whole machine and trays can be automatically changed without the need to open the upper cover, which saves tray changeover space and avoid human error during tray changeover. The auto tray device can stack up to 20 JEDEC trays. Watch video

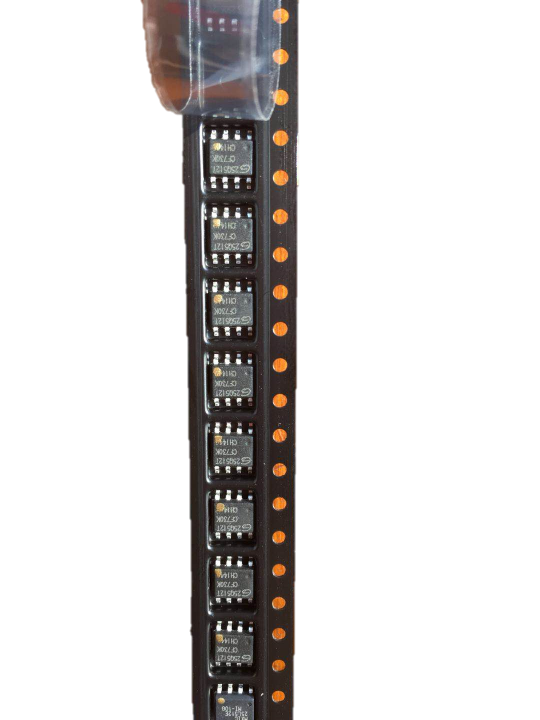

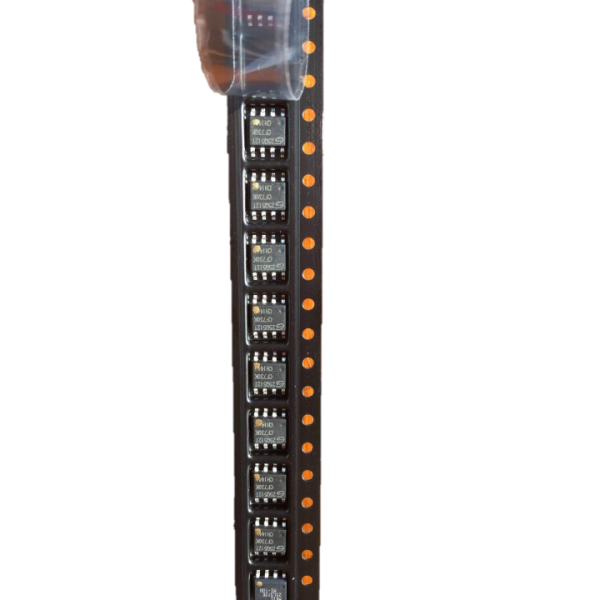

Tape-In Device Electric Tape in feeder. Tape width between 8 and 32mm applicable. Tape-in device can be configured as per the chip to be programmed. For SOIC and TSOP packages customer will need 2-3 types of different tape in the devices depending on the width of chips to be programmed. Watch video
Tube-In Moves chips in the machine. Chip guider for different chip width (optional). IO is multi feed and upto 8 tubes can be operated at once (optional). Tube IO pages should also be updated accordingly.
Tube-Out Moves chips out of the machine. Chip guider for different chip width (optional). IO is multi feed and upto 8 tubes can be operated at once (optional). Tube IO pages should also be updated accordingly. Watch video
Tape Ink-Marker Add-on item for tape out machine. On completion of programming the chip can be automatically marked with a point using ink (optional). Watch video. Tray Ink Marker Add-on item for auto tray machine. On completion of the programming the chip can be automatically marked with a point using ink (optional). Watch video
