Ultra High-Speed Universal 4-Gang Programmer with Industry-Leading Device Support
The SuperPro 6104NGP is a cost-effective, reliable, and high-speed 4-gang universal IC programmer designed for production and high-volume programming environments. It communicates via USB 2.0 for development and manufacturing workflows.
Equipped with 144 pin drivers, the SuperPro 6104NGP supports high pin-count devices and offers one of the largest device support libraries in the IC programming industry.
Applications & Target Customers: programming houses, electronics repair services, automotive repair facilities, forensic and data recovery companies, medical device manufacturers, and applications requiring broad device support.
Certificates
What's in the Box
|
SuperPro 6104NGP comes with:
|
Optional Accessories:
|
Do you have any questions about SuperPro 6104NGP?
Ask Us NowFrequently Asked Questions
What is the SuperPro 6104NGP designed for?
The SuperPro 6104NGP is designed for production and high-volume IC programming applications where reliability, speed, and multi-device programming are required.
How many devices can the SuperPro 6104NGP program at once?
The SuperPro 6104NGP supports true 4-gang programming, allowing up to four devices to be programmed simultaneously using compatible socket adapters.
What types of devices are supported?
It supports a wide range of IC devices including microcontrollers, EEPROM, NOR flash, and other supported memory devices, with one of the largest device support libraries in the industry.
Does the SuperPro 6104NGP support standalone operation?
The SuperPro 6104NGP is designed for PC-controlled operation via USB 2.0, making it ideal for controlled production and manufacturing environments.
Is the SuperPro 6104NGP refundable?
SuperPro 6104NGP programmers are made to order and are non-refundable. All sales are final.
Socket adapters sold separately.
To find the compatible adapter for your chip please visit our Device Search Tool.
DIP Socket Adapter:
DX0001(SuperPro 6100N and SuperPro 6104NGP)
GX0001 (SuperPro 7500 and SuperPro 7504)
| Ultra Fast Programming Speed SuperPro 6104NGP is designed with high programming speed in mind. Our semiconductor manufacturer approved algorithms, precision and clean signals guarantee high programming yield. Special design was made to eliminate overshoot and ground bounce. Algorithms are performed with state machine architecture constructed with FPGA to achieve a ultra-high programming speed. | |
| Largest Device Support Located in Silicon Valley, we keep good relationships with many major IC companies that are important for us to continuously support new devices. SuperPro 6104NGP currently supports more than 99,800 devices, which is the largest device library in the programming industry. Requested device algorithms can be added within a week - average lead time from other manufacturers is over two months. | |
| Project Files The project file stores preparations before programming. Users could also restore and save work environment. The project file includes device type, buffer data, operation option settings, configuration bit settings and batch commands. Project files may be password protected to increase security and reliability when operated by untrained operators. | |
| Auto Function The Auto function organizes different functions into a sequential group (erase, blank check, program, verify and protect). Functions are executed in sequential order similar to a batch command. | |
| Production Mode Once a chip is inserted correctly, the programmer automatically starts batch command of erase, blank check, program and verify. Auto chip detection saves time and increases efficiency. | |

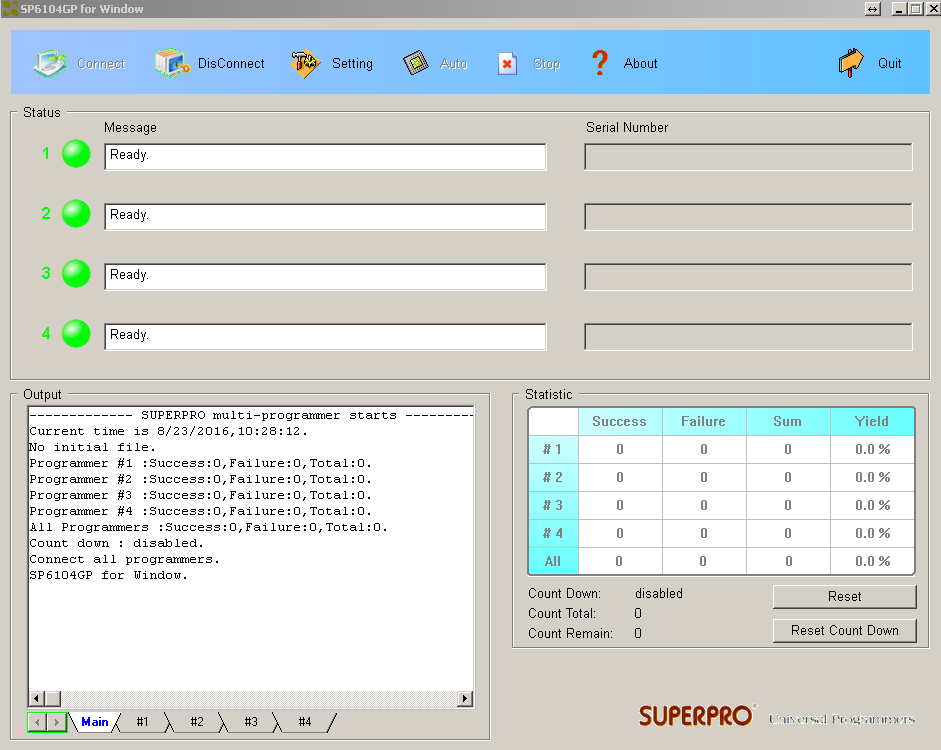

| Production Statistics A log file could be used to save operation information before exiting the program. Log files can also be used to facilitate quality tracking. | |
Factory Mode This mode is designed for factory volume production. To prevent operation errors from destroying chops and wrong data written to the chip, SuperPro will operation in the Auto function mode. The administrator can set a password to prevent unauthorized access to the system. | |
| Auto Recognition of File Types We support almost all kinds of known file formats including file formats with automatic recognition functions: Binary, Intel (linear & segmented) Hex, Motorola S, Tektronix (linear & segmented), JEDEC, POF, etc. | |
| Auto Increment of Serial Numbers Auto-generation of electronic serial numbers is available on Superpro 6104NGP. This feature is implemented by setting Auto Increment in Operation Option. Auto Increment allows users to add unique serial number into the device. After each successful programming, the software automatically changes the value by the specified increment mode. | |
| Intellectual Property Protection Password settings available in both PC and stand-alone mode. |
Hardware and Electrical Specifications
|
Devices supported |
EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU |
|
|
Package types supported |
DIP, SDIP, PLCC, JLCC, PGA, LGA, SOIC, SOJ, SOT, QFP, TQFP, PQFP, VQFP, MQFP, LQFP, TSOP, SOP, TSOPII, PSOP, SSOP, TSSOP, SON, EBGA, FBGA, FTBGA, VFBGA, μBGA, CSP, SCSP, QFN, HVQFN etc. |
|
|
PC interface |
USB 2.0 |
|
|
Power supply |
AC Adapter: Input AC 100V- 240V; Output: 12V/1.5A |
|
|
Dimensions |
Main unit: 438(L) x 216(W) x 94(H) mm |
Package: 501(L) x 252(W) x 145(H) mm |
|
Weight |
Main unit: Weight 9.4 lbs (4.3 Kg) |
Package: Weight 19,5 lbs (8.9 Kg) |
Expanded Features
- Built with 4 x universal 144-pin drivers that is compatible with various package types
- In-system programming (ISP / ICP) capability
- Support devices with Vcc from 1.2V - 5V.
- Supports files up to 256 GB.
- Over-current and over-voltage protection for safety of the chip and programmer hardware
- Compatible with Windows XP / Vista / 7 / 8 / 10 / 11 (32/64 bit)
- Only IC manufacturer approved programming algorithms used for high reliability.
- Vcc verification (at +5% ~ -5% and +10% ~ -10%) enhances programming reliability.
Warranty Support
Standard Warranty
Included with the purchase of SuperPro 6104N
- Two-Year Hardware Warranty: Covers hardware repair services for two years from the purchase date.
- Device Updates: User-requested device updates are available during the first year of purchase.**
- Shipping for RMA Items:
- Xeltek covers FedEx Ground shipping for return shipments to domestic (USA) addresses only.
- International customers are responsible for shipping costs both ways.
- Defect Coverage: Programmers are warranted against manufacturing or workmanship defects for two years from the date of purchase.
- Technical Support:
- For assistance, contact Xeltek via email techsupport@xeltek.com.
- Calls are handled in the order they are received. Due to high call volume, written requests are prioritized for faster response.
- Support is available Monday–Friday, 8:00 AM to 4:30 PM (PST).
- Out-of-Warranty Services: Additional service fees apply for items outside the warranty period.
