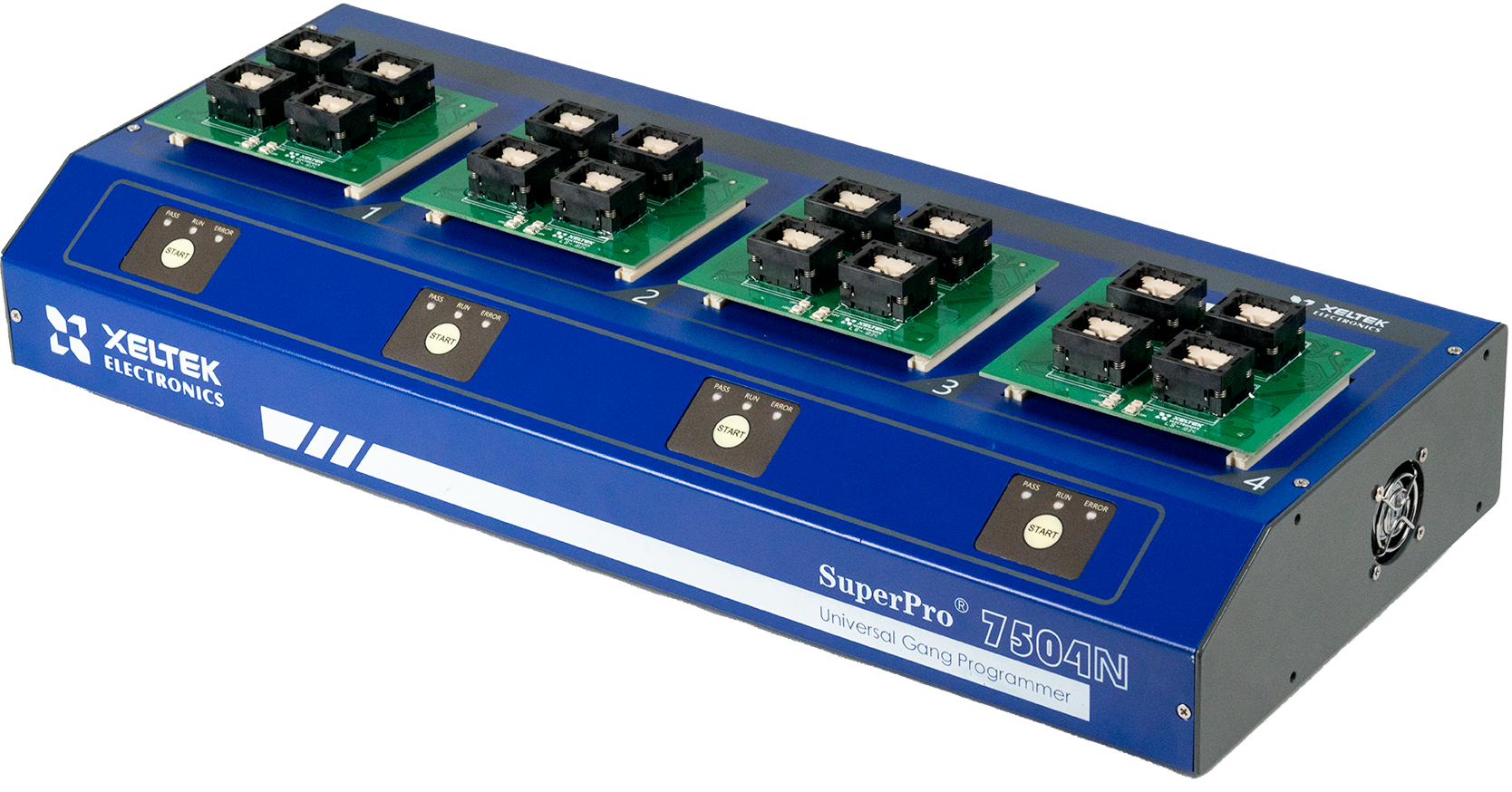

SuperPro 7504N
High-Throughput IC Programming Without Automation Complexity
The SuperPro 7504N is a production-grade gang programmer designed for manufacturers who require high programming throughput without the cost and complexity of fully automated programming systems.
Built with four independent high-speed programming modules, the system can program up to 16 devices simultaneously, delivering fast cycle times, reliable programming yield, and flexible production changeover.
Key Advantages
- Parallel Gang Programming – Configure 4–16 sockets using 4Gang adapters for high-throughput production.
- Extensive Device Compatibility – Supports microcontrollers, SPI Flash, NAND Flash, NOR Flash, eMMC, EEPROM and more.
- Production-Grade Reliability – Manufacturer-approved algorithms ensure high programming yield and device integrity.
- Flexible Production Workflow – Quickly change devices and adapters for mixed production environments.
The Bridge Between Manual Programming and Automation
The SuperPro 7504N fills the gap between single-socket programmers and fully automated programming systems.
It provides production-scale throughput while maintaining the flexibility required for rapidly changing device types.
The platform also shares the same device support, adapters, and project files used by Xeltek SuperBOT automated programming systems, allowing customers to scale production without changing their programming workflow.
Do you have any questions about SuperPro 7504N?
Ask Us NowFrequently Asked Questions
What types of devices is the SuperPro 7504N best suited for?
The SuperPro 7504N is ideal for programming high-density and high-volume devices such as eMMC, NAND Flash, NOR Flash, and microcontrollers (MCUs). It is designed to meet the demands of production and manufacturing environments.
How many devices can the SuperPro 7504N program at the same time?
The system integrates four SuperPro 7500N programming modules and supports up to 16 devices simultaneously, depending on socket adapter configuration.
Is the SuperPro 7504N suitable for mass production?
Yes. The SuperPro 7504N is specifically designed for mass production, offering high throughput, consistent programming yield, and reliable performance for high-volume manufacturing lines.
Can the SuperPro 7504N be upgraded for new devices?
Yes. Xeltek provides continuous device support updates, allowing the SuperPro 7504N to quickly adapt to new memory devices and future IC technologies.
Is the SuperPro 7504N refundable?
SuperPro 7504N programmers are made to order and are non-refundable. All sales are final.
Socket adapters sold separately.
To find the compatible adapter for your chip please visit our Device Search Tool.
DIP Socket Adapter:
DX0001(SuperPro 6100N and SuperPro 6104NGP)
GX0001 (SuperPro 7500 and SuperPro 7504)
Largest Device Support Library
Supports 146,000+ devices with continuous updates through close partnerships with major IC manufacturers. New device algorithms can often be added quickly via our Device Support Request.
Key Features
Ultra-Fast Programming Speed
Manufacturer-approved algorithms, precise signal timing, and clean pin drivers deliver high programming yield and repeatable production results.
Project File Management
Save and restore complete programming setups including device selection, buffer data, configuration bits, operation settings, and batch commands. Password protection helps ensure secure, consistent operation.
Automated Production Sequencing
Automatically executes erase, blank check, program, verify, and protect in a single workflow—reducing operator steps and improving consistency.
Production Mode
Starts automatically after device insertion with chip detection and batch execution—maximizing throughput and minimizing handling time.
Factory Mode
Designed for high-volume manufacturing. Enforces controlled operation with administrator password control to prevent errors and unauthorized changes.
Traceability & Production Logging
Comprehensive log files support quality control, traceability, and process tracking for production environments.
Automatic File Recognition
Supports and auto-detects common file formats including Binary, Intel HEX (linear/segmented), Motorola S-Record, Tektronix, JEDEC, POF, and more.
Auto Serial Number Generation
Built-in auto-increment programs unique identifiers such as serial numbers during production to support traceability and device identification.
Intellectual Property Protection
Password security is available in both PC and stand-alone operation modes to safeguard data and process integrity.
Dynamic Data Buffer
Program unique data per device—such as serial numbers, MAC addresses, and IDs—without slowing down the production workflow.
Characteristics

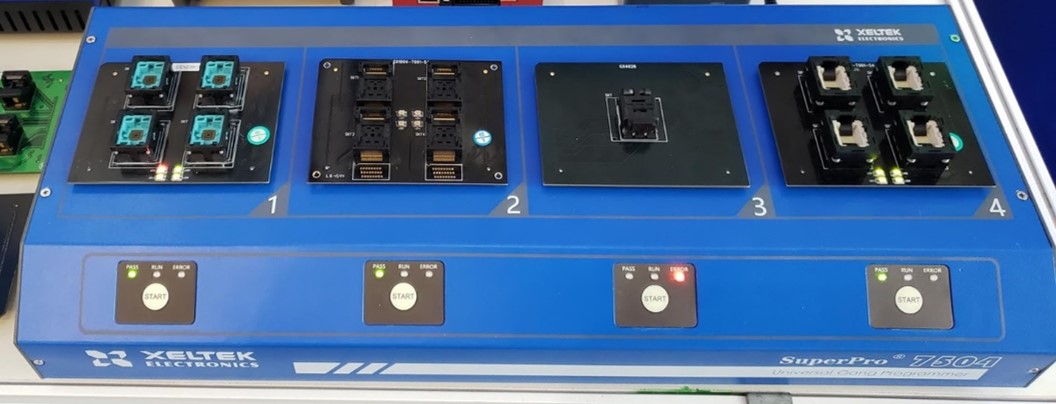

- Four independent high-speed programming modules enable simultaneous programming of up to 16 devices—ideal for high-throughput production environments.
- Broad device & package compatibility supports EPROM, EEPROM, FPGA configuration PROM, FLASH (NOR & NAND), BPROM, NVRAM, SPLD/CPLD/EPLD, microcontrollers/MCU and more. Supports operating voltages down to 1.2V and a wide range of package types including DIP, PLCC, SOIC, QFP/TQFP, TSOP, BGA/µBGA, CSP, QFN/HVQFN and more.
- Optimized for high-density memories with faster programming performance for devices such as eMMC, NAND Flash, and SPI Flash.
- Operator-friendly socket accessories available, including an optional adapter pressurization booster to reduce insertion/removal effort.
- Advanced NAND support for popular NAND platforms with customization available for specialized requirements.
- High programming yield by design: 10th-generation pin-driver technology delivers clean signals, wide voltage range, and high bandwidth. Manufacturer-spec timing implementation and approved algorithms help ensure reliable results in production.
- Built-in safety & protection features include hardware self-test, automatic voltage calibration, chip mis-insertion detection, over-current detection, and over-voltage protection.
- PC Interface: USB 2.0
Powerful Software Features
- Project Files: Load a project file to instantly apply device selection, settings, and programming operations for consistent production runs.
- Password Management: Protect project files and production settings to prevent unauthorized changes.
- Production Logs & Statistics: Generate run logs for traceability and quality tracking.
- Windows Compatibility: Windows 7/8/10/11 (32/64-bit)
Electrical & Mechanical Specifications
- Communication Interface: USB 2.0
- Grounding: Dedicated grounding socket
- Power Supply: AC Adapter Input: AC 100–240V; Output: 12V / 7A
- Main Unit: 540 × 216 × 75 mm; 6.8 kg (15.0 lbs)
- Packaging: 600 × 250 × 105 mm; 9.2 kg (20.3 lbs)
- Operating Environment: 0–40°C; 20–80% RH
Warranty
Included with the purchase of SuperPro 7504N
- Two-Year Hardware Warranty: Covers repair or replacement for defects in materials and workmanship for two (2) years from the date of purchase.
- Free Device & Software Updates: User-requested device support updates and software updates are provided free for the first two (2) years after purchase.**
-
Priority Technical Support:
Direct access to Xeltek’s engineering support team for setup, operation,
and troubleshooting assistance.
- Email: techsupport@xeltek.com
- Support hours: Monday–Friday, 8:00 AM – 4:30 PM (PST)
- Written requests are prioritized for fastest response.
-
RMA Shipping Policy:
- Xeltek covers FedEx Ground return shipping for approved RMA units to domestic (USA) addresses.
- International customers are responsible for shipping costs both directions.
- SuperBOT-Proven Platform: The same SuperPro 7500N programming engine powers Xeltek SuperBOT systems, ensuring long-term reliability and continued platform support.
- Out-of-Warranty Service: Repair and calibration services remain available after the warranty period at standard service rates.
** Device update availability subject to device support feasibility.
