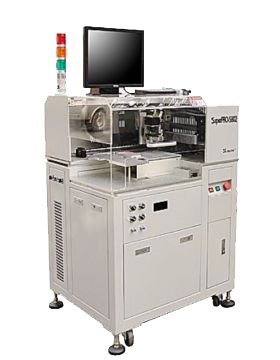

SuperBOT 2
Fully Automated IC Programmer - up to 16-Sockets
The SuperBOT 2 is an all-around affordable automated IC programmer. The SuperBOT 2 features tray, tube, and tape I/O, and ink or laser marking. This automated system was designed to accommodate most IC devices on the market such as NOR flash, microcontrollers, NAND, etc. Today, our SuperBOT 2 supports over 106K devices with over 500 different adapters to program many common and uncommon package types. If you're looking for a reliable, high performing, and budget-friendly automated IC programmer the SuperBOT 2 is the clear choice.
Standard Features
| Model | SuperBOT 2 | |
| Units Per Hour | 1,200 | |
| Nozzles | Single | |
| Tray |
Fixed Tray |
|
| Programmer | SuperPro 7500N | |
| Sockets | 16 | |
| Adapters | 4 | |
| Vision Check | Dual Camera | |
| Tape Input | Single | |
| Operating System | Windows™ | |
| Computer | Built-In Industrial PC |
Devices and Packages
Supports: NAND, eMMC, NOR Flash and other device memories on the market
Package: WLCSP, SOT, BGA, TSSOP, PLCC & ETC
Size: 2mm - 25mm
Optional Accessories
Tray (up to 20 trays), tape in/out, tube in/out, and laser or ink marking
Support and Warranty
Free factory training
5 years remote support and 1 year parts warranty
Real time support via direct message
Xeltek has been an industry leader for over 25 years, providing affordable reliable machines, quick support and responsive trouble shooting.
LOWEST TOTAL COST OF OWNER SHIP
Xeltek provides free remote support for up to 5 years exclusive of material cost.
Many customers come back to Xeltek for an upgrade within this period and use their current machine as a trade-in.
Save a bundle with Xeltek SuperBOTs.
|
SuperBOT 2 |
|
|
Chips and Package Types |
|
|
Chip Size |
Min: 2x2mm, Max: 25x25mm |
|
Devices Supported |
EPROM, Paged EPROM, Parallel and Serial
EEPROM, FPGA Configuration PROM, FLASH memory (NOR & NAND), BPROM, NVRAM,
SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU, and more. |
|
Available Adapters |
PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP,
SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, WLCSP, SCSP, and
more. |
|
Air |
|
|
Pressure Consumption |
0.6MPa 50 liters/min |
|
Main Hardware and OS |
|
|
Operation System Computer Hardware Remote Access |
Windows™ Built-in Industrial PC SuperPro 7500 LAN Supported |
|
Electrical |
|
|
Power Adapter Type Output Power Consumption |
AC 220v
1.5Kw |
|
Dimensions |
|
|
SuperBOT 5 |
Width(X): 800MM Depth(Y): 900MM Height(Z): 1,410MM Weight: 260kg |
| Manual Tray (Standard equipped) Standard I/O device of the machine. Operator will replace the programmed tray from the SuperBot machine manually after the full tray is programmed. Customer does not need to buy any other accessory while using this option. |
| Auto Tray Device This device is an extension of the fixed tray. It includes tray-in and tray-out and users can put 20 trays into the device. When the machine is running, users can add trays or take out trays without stopping the machine. The auto tray device can also be installed outside of the whole machine and trays can be automatically changed without the need to open the upper cover, which saves tray changeover space and avoid human error during tray changeover. The auto tray device can stack up to 20 JEDEC trays. Watch video |
| Tape-In Device Electric Tape in feeder. Tape width between 8 and 32mm applicable. Tape-in device can be configured as per the chip to be programmed. For SOIC and TSOP packages customer will need 2-3 types of different tape in the devices depending on the width of chips to be programmed. Watch video |
| Tape-Out Device Connects to a SuperBOT2 or SuperBOT3 for fully automatic operation. 8-32 mm tape widths can be used with the device. Output reel is sealed with heated tape. Watch video |
| Tube-In Moves chips in the machine. Chip guider for different chip width (optional). IO is multi feed and upto 8 tubes can be operated at once (optional). Tube IO pages should also be updated accordingly. |
| Tube-Out Moves chips out of the machine. Chip guider for different chip width (optional). IO is multi feed and upto 8 tubes can be operated at once (optional). Tube IO pages should also be updated accordingly. Watch video |
| Laser Marker System An optional attachment to the tape-out or the auto tray device for high speed marking. It marks up to 4 characters on the passed chips. Watch video |
| Tape Ink-Marker Add-on item for tape out machine. On completion of programming the chip can be automatically marked with a point using ink (optional). Watch video. Tray Ink Marker Add-on item for auto tray machine. On completion of the programming the chip can be automatically marked with a point using ink (optional). Watch video |
