Xeltek Superior In-System Gang Programmer with 16 Channels

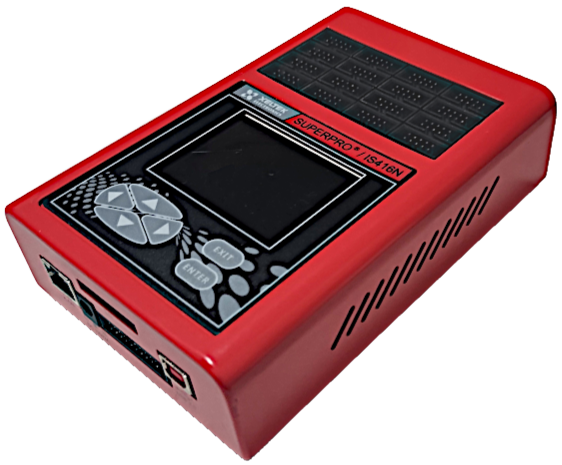

The SuperPro IS416N is a universal in-system (ISP) gang programmer supporting devices across almost all serial protocols. It programs up to 16 serial devices simultaneously and supports up to four parallel devices such as eMMC, NAND Flash, and NOR Flash in-system at the same time.
The system supports USB 2.0, network remote control, and stand-alone operation. Optional DLL, API, and command-line interfaces are available under license for seamless integration with ICT, FCT, ATE, and automated test fixtures.
Applications
- PCB panel programming
- ATE, FCT, ICT, and test fixture integration
- Core component of ISP programming stations
- High-volume in-system gang programming
- Firmware in-system updates
- Field service and repair for automotive, HVAC, and industrial electronics
Key Features
Ultra-Fast Programming Speed: Semiconductor-manufacturer-approved algorithms, clean signal integrity, and FPGA-based state-machine architecture ensure high programming yield and ultra-fast programming speed while minimizing overshoot and ground bounce.
Up to 16-Channel ISP Gang Programming: Supports MCUs, serial FLASH/EEPROMs, and high-pin-count parallel devices such as eMMC and NAND/NOR Flash. Four parallel devices can be programmed simultaneously, while serial devices can be programmed across all 16 channels.
Scalable Expansion: Up to 16 programmers can be connected to a single PC or operated independently in stand-alone mode.
Mass Production Mode: Automatically starts programming when the target board is detected, enabling hands-free, high-throughput manufacturing workflows using TPIN/TPOUT trigger signals.
Long Cable Support: ISP programming supported up to 1 meter (3 feet) with adjustable speed control. Integrated VDD (0–5.5V / 0.5A) and VPP (0–15V / 0.2A) power rails support direct target-board powering.
Technical Support: Same-day sales and technical support backed by Xeltek’s experienced engineering team.
Advanced Software Features
SuperPro IS416N includes powerful yet easy-to-use programming software designed for operators with minimal training. Supported on Windows Vista, 7, 8, and 10 (32/64-bit).
Certificates
What's in the Box
|
Included:
|
Optional Accessories:
|
Frequently Asked Questions
What devices can the SuperPro IS416N program?
The SuperPro IS416N supports serial devices such as MCUs, SPI Flash, EEPROM, and parallel devices including eMMC, NAND Flash, and NOR Flash.
How many PCBs can be programmed at the same time?
Up to 16 PCBs can be programmed simultaneously using ISP gang programming.
Is the SuperPro IS416N suitable for production environments?
Yes. It is designed for volume production, automated test integration, and hands-free mass programming workflows.
Is it plug-and-play?
Yes. Xeltek also offers device algorithm development for seamless plug-and-play operation.
Do you have any questions about SuperPro IS416N?
Ask Us Now| Project Files The project file stores preparations before programming. Users could also restore and save work environment. The project file includes device type, buffer data, operation option settings, configuration bit settings and batch commands. Project files may be password protected to increase security and reliability when operated by untrained operators. | |
| Project Group: Operate Multiple Project Files in Batch Mode Multiple chips could be programmed simultaneously using the Project Group feature on the SuperPro IS416 software. Project Group organizes batch running of multiple projects and is available on all SuperPro ISP models. Other ISP programmers require a demultiplexer for programming two chips using a single ISP programmer and this solution is not suitable for volume production because it takes longer to program chips, causes noise interference, and incurs additional hardware and labor cost. | |
| Super Scale Project Group Complicated PCBA or multiple combined PCBAs may need multiple programmers to work properly. The Super Scale Project Group is responsible for the workflow across multiple programmers. | |
| Auto Function The Auto function organizes different functions into a sequential group (erase, blank check, program, verify and protect). Functions are executed in sequential order similar to a batch command. | |
| Production Statistics A log file could be used to save operation information before exiting the program. Log files can also be used to facilitate quality tracking.
| |
Factory Mode This mode is designed for factory volume production. To prevent operation errors from destroying chips and wrong date written to the chip, SuperPro will operate in Auto function mode. The administrator can set a password to prevent unauthorized access to the system. | |
| XPlayer SuperPro IS416 supports JAM, SVF and Staple files from ACTEL, Xilinx and ALTERA. SuperPro IS416 also supports Direct C files from ACTEL. STP or JAM files can be generated using design tools such as ISE and Quartus II. | |
| Auto Recognition of File Types We support almost all kinds of known file formats including file formats with automatic recognition functions: Binary, Intel (linear & segmented) Hex, Motorola S, Tektronix (linear & segmented), JEDEC, POF, etc. | |
| Auto Increment of Serial Numbers Auto-generation of electronic serial numbers is available on Superpro IS416. This feature is implemented by setting Auto Increment in Operation Option. Auto Increment allows users to add unique serial number into the device. After each successful programming, the software automatically changes the value by the specified increment mode. Barcode Management is also available to fulfill all setup tasks by scanning barcode on the job sheet. | |
| Copyright Protection with SD encryption, project file encryption and access control, volume control and remote control. |
Hardware & electrical Specifications
- Supports all common ISP protocol (i.e. I2C, SPI, UART, BDM, MW, JTAG, CAN, RS232). Contact Xeltek for more details.
- PC interface: USB2.0 (high speed), LAN (100M)
- Off-line memory media: SD card
- Keypad and Display：6-key keyboard, LCD display with 40digits x 4lines
- Power Supply： DC 12V /1.5A. Power adapter
- Main Unit: Dimension：184 x 160 x 78 (mm); Weight: 0.8Kg
- Package：Dimension: 310 x 250 x 145 (mm); Weight: 1.65Kg
- Operating Temperature: 0-50°C. Humidity: 20%-80%
Expanded Features
- High-speed ISP production programmer with industrial grade quality. The ultimate choice for integrating ISP sub-systems.
- Supports almost all serial chips which include, but not limited, SPI,I2C,JTAG, BDM,UART,MON,SCI,SWD, SBW,C2D,ICC,SWIM,SDQ,DBG,ICE,CSI,LIN
- Supported manufactures include, but not limited, ABOV,Ali,Altera,Atmel,Catalyst,Cypress,Freescale,Fujitsu,Haier,Hitachi,Hynix,Infineon, IR,ISSI,Lattice,Macronix,Maxim,Microchip,Micron,NEC,Numonyx,NXP,ON, Panasonic, Renesas,Rohm,Samsung,Sanyo,Silicon,Labs,Spansion,SST,ST, Teridian, TI, Toshiba, Winbond, Xilinx, Zilog
- Programs up to 16 serial chips or 4 parallel NAND,NOR,eMMC chips simultaneously
- Support ISP serial programming to multiple chips of different models or types in one unit
- General control ports supply signal isolation, relay isolation, power supply control, click detection, LED expansion display and other control signals
- High-speed programming with adjustable speed meets board load requirement or ISP cable length
- Three modes: 1) Online mode. Connected to local PC by USB2.0(high speed) 2) Off-line mode. Using the stand-alone keyboard, LCD display, and mobile memory (standard SD cards), SuperPro IS416 can run independently off-line for flexible production and field setup. Project file size is only limited by the SD card memory size.3) Network mode. Connected to local network, control locally or remotely.
- Advanced pin-driver technology supplies cleaner signals, wider voltage range and accurate / higher clock frequency. Precise time generators ensure devices with 1.2V-5.0V Vcc higher speed and qualified product ratio
- Chip safety security mechanism: the built-in precise voltage self-calibration circuit ensures the voltage is within the preset range at any time. The self-diagnosis function continuously detects hardware fault to ensure the machine run normally.
- Over-current, over-voltage and ESD protection avoids damaging the programmers
- User operation interface is shown by PCBA
- Log document and production statistics function facilitates quality-tracking.
- Copyright Protection with SD encryption, document right management and encryption, output limitation and remote control.
- Customized special functions and algorithm software available
- Web Programmer + Network management software (optional) create a revolutionary network writing management mode. Project setting, task switching and software updating for all programmers can be finished instantly on a server while quality-monitoring and QC statistic can be done in real time. Such mistakes as empty-writing can be tracked, and the written data is saved only on local or remote servers for data safety.
- Using a customized socket adapter, SuperPro IS416 can be used as an off-line production programmer, and programs up to 4 chips simultaneously.
