SuperBOT 5 Series – High Speed Automated IC Programming System

Write a review
Contact us for a price
SBOT5Series
  • Programs up to 2,500+ units per hour
  • Ideal for high-volume IC manufacturing
  • Reduces labor costs with automated precision
  • Supports Tray, Tape, Ink Dot, and Laser Marker
  • Seamless integration into existing production lines
  • Ensures reliable and repeatable programming results
  • Works with MES systems for streamlined manufacturing
  • Compatible with Hardware Security Modules (HSM)
  • Barcode and QR code integration for enhanced automation
Ask Now

Worldwide Shipping

SuperBOT series icon

SuperBOT 5 Series Automated IC Programmer

The Xeltek SuperBOT 5 is a high-speed automated IC programming system for mass production and high-volume IC programming. With precision pick-and-place, it delivers reliability and efficiency across MCUs, eMMC, NAND flash, and other memory types. Engineered for throughput, SuperBOT 5 can program over 2,500 units per hour, reducing production time and labor costs. Its versatile handling supports tray, tape, and tube I/O—ideal for automotive, telecommunications, and industrial applications.

Universal programmer icon

Universal IC Programmer

  • Fixed 4 or 8 universal programmers
  • Supports 135,000+ devices with continuous updates
Throughput icon

High Throughput

  • 2,500+ units per hour (UPH)
Vision check icon

Vision Check

  • Precise chip placement with orientation and position verification prior to socket insertion
Device and package support icon

Devices & Packages

  • Supports: NAND, eMMC, NOR Flash, microcontrollers, and more
  • Packages: WLCSP, SOT, BGA, TSSOP, PLCC, QFN, SOIC, etc.
  • Minimum chip size: 1 × 1 mm
Peripherals icon

Supported I/O Peripherals

  • Auto Tray (load up to 25 trays)
  • Tape Out Handler (adjustable tape reel; cold or heat sealing)
  • Electric Tape-In Feeder (dual option)
  • Air Ionizer
Marking functions icon

Marking Functions

  • Laser Marker: letters, alphanumerics, and symbols
  • Label Printer: QR codes and barcodes
  • Dot ink marker
Socket adapters icon

Socket Adapters

Xeltek provides high-performance single and 4-gang socket adapters for automated programming. Each 4-gang adapter integrates four sockets for simultaneous multi-chip programming. With eight 4-gang adapters, you can program up to 32 chips at once—boosting throughput, reducing cycle time, and minimizing labor costs. Supported packages include BGA, QFN, SOP, and TSOP, across NAND, eMMC, microcontrollers, and more.

API integration icon

API Support

Applications can be integrated via API protocol.

  • Hardware Security Module (HSM)
  • MES
Support and warranty icon

Support & Warranty

  • 2-year hardware warranty
  • 5-year free remote support
  • Free device support
  • Free factory training
  • *Zero service contracts

For more information about the SuperBOT 5 Series or to request a quote, contact us today.

Contact Us Now
SuperBOT 5/5e Specifications High-Speed Automated IC Programmer
Chips & Package Types
Chip Size Min: 2x2mm, Max: 25x25mm
Supported Devices EPROM, Paged EPROM, Parallel & Serial EEPROM, FPGA PROM, Flash Memory (NOR & NAND), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontrollers (MCU), and more.
Available Socket Adapters PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, WLCSP, SCSP, and more.
Air Requirements
Required Pressure 0.6 MPa
Air Consumption 50 Liters/Min
Hardware & Operating System
Operating System Windows™
Integrated Computer Built-in Industrial PC
Programming Hardware SuperPro 7500N
Remote Connectivity LAN Remote Access Supported
Electrical Specifications
Voltage Input AC 100-240V
Power Consumption Less than 50W
SuperBOT Accessories | Automated IC Programming Equipment

Manual Tray (Standard Equipment)

The SuperBOT Manual Tray is the default I/O device, where operators manually replace trays once a full cycle is complete. This option requires no additional automation, making it a cost-effective solution.

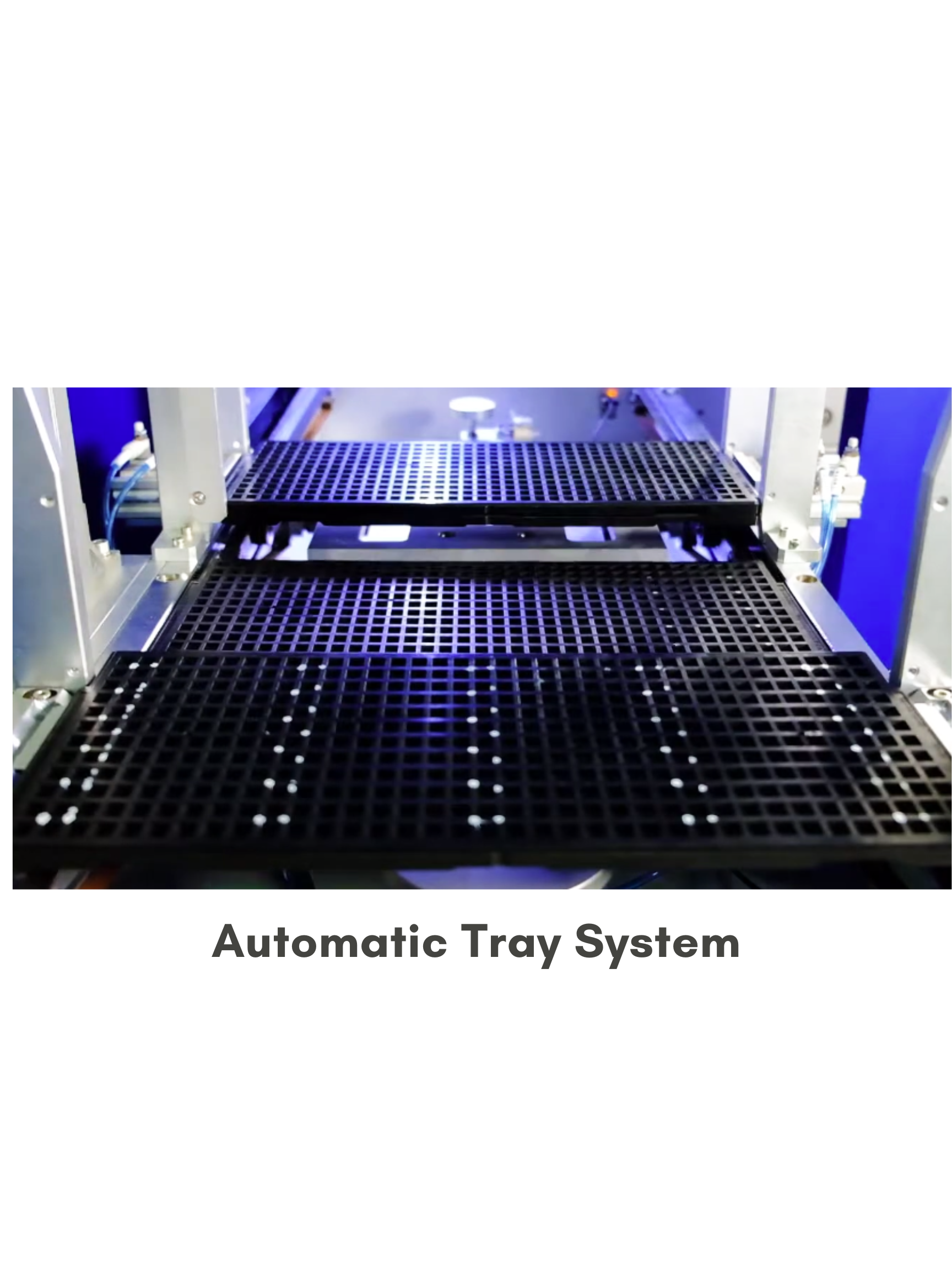

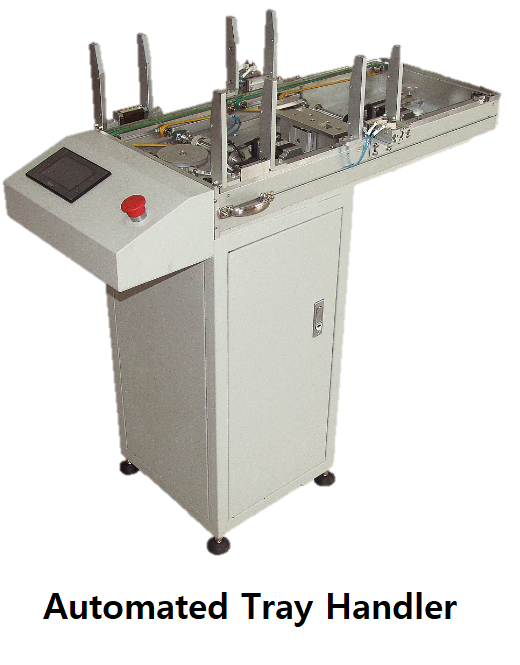

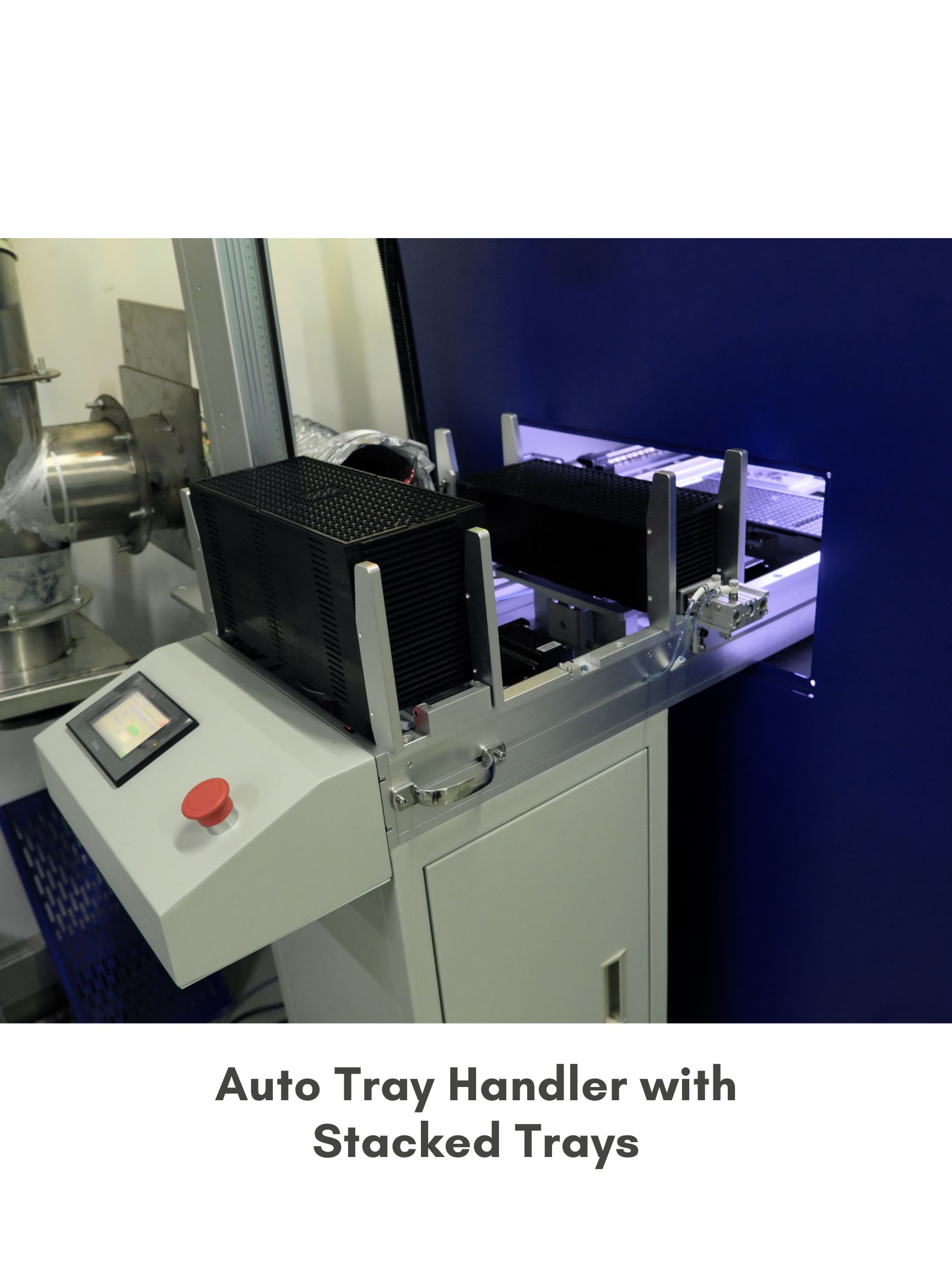

Auto Tray Device

The Automated Tray Handler feeds unprogrammed chips into the system and stacks completed trays. This high-speed tray exchanger can handle up to 25 trays at a time, reducing manual labor and improving efficiency.

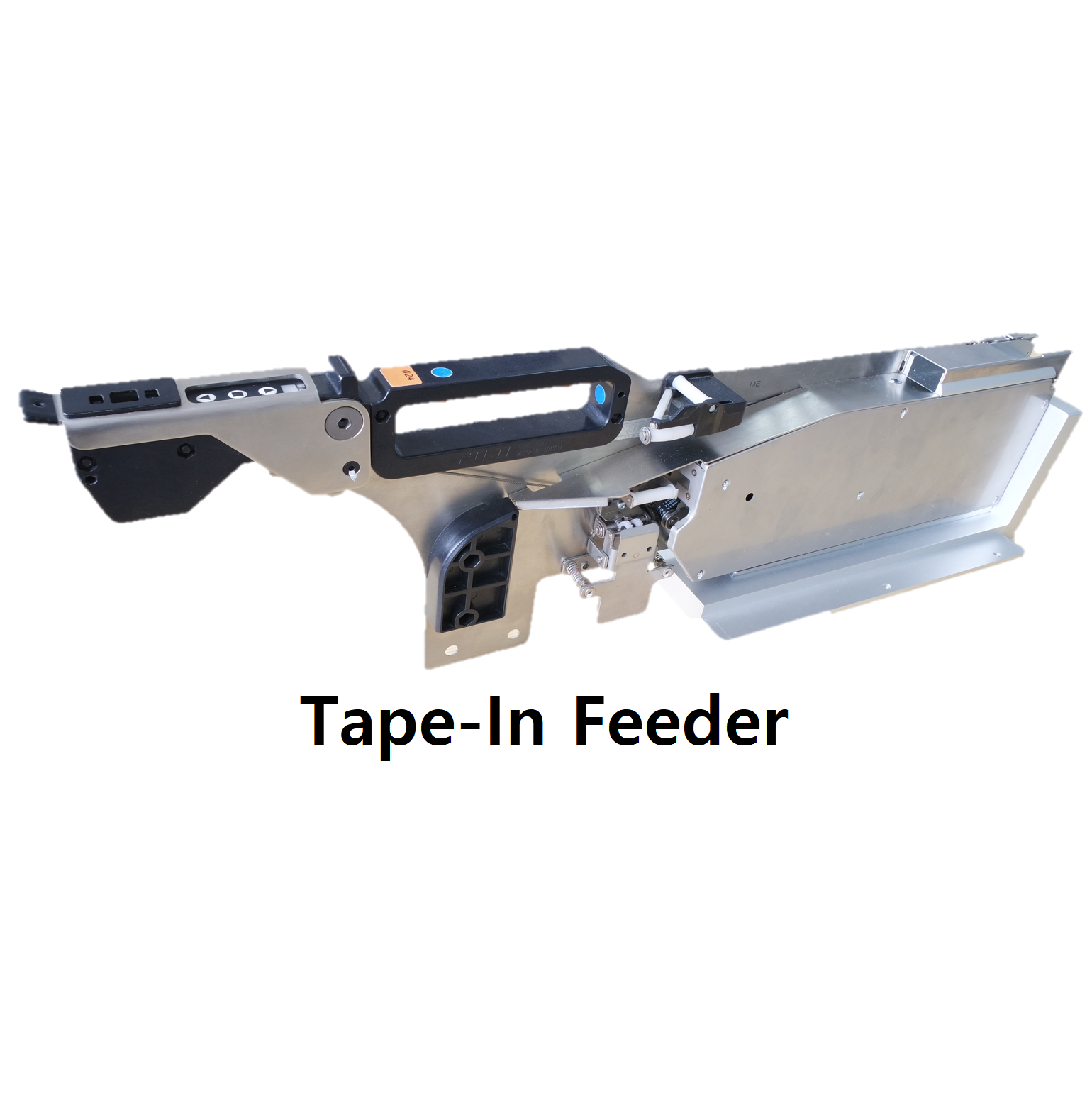

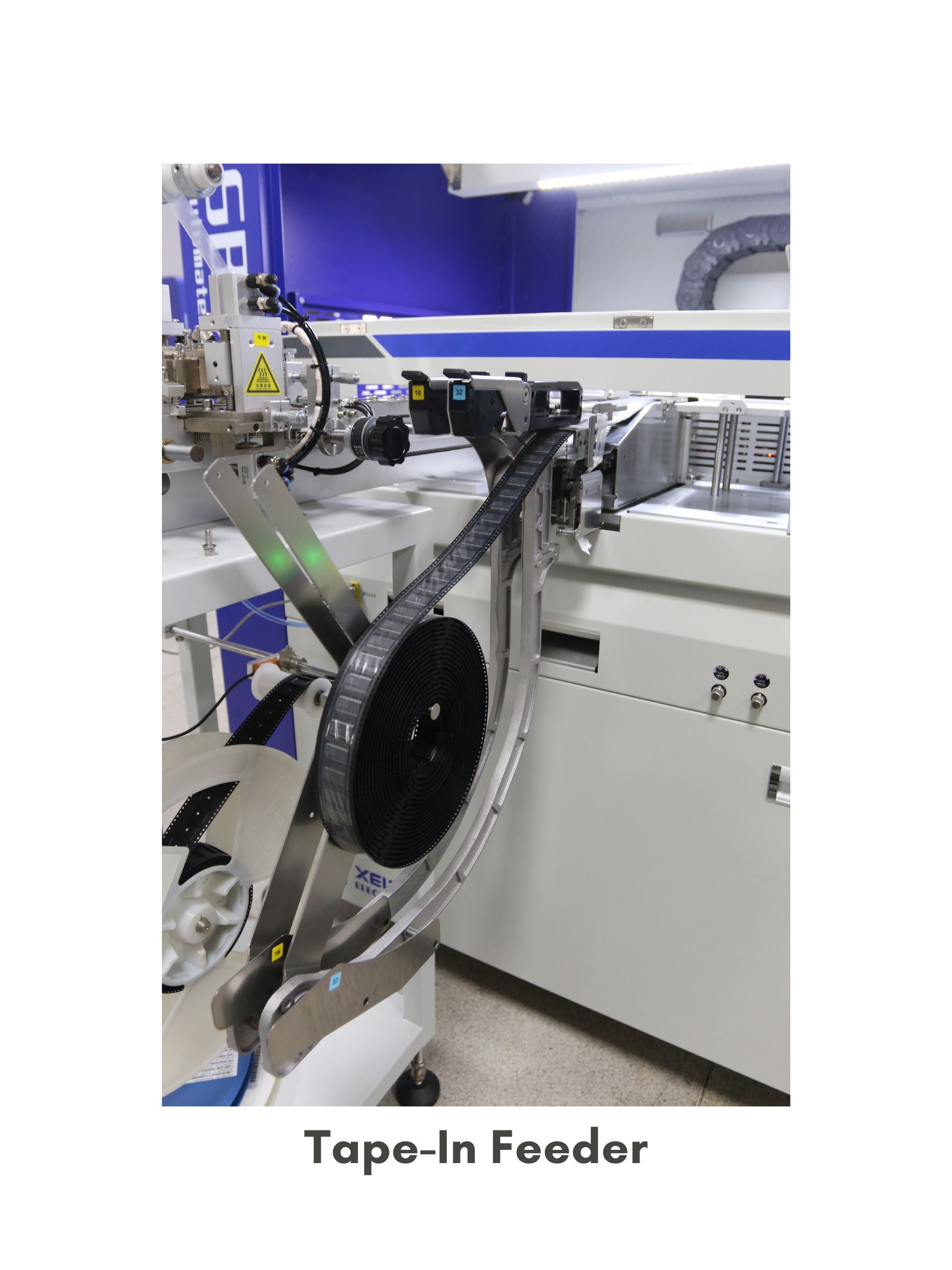

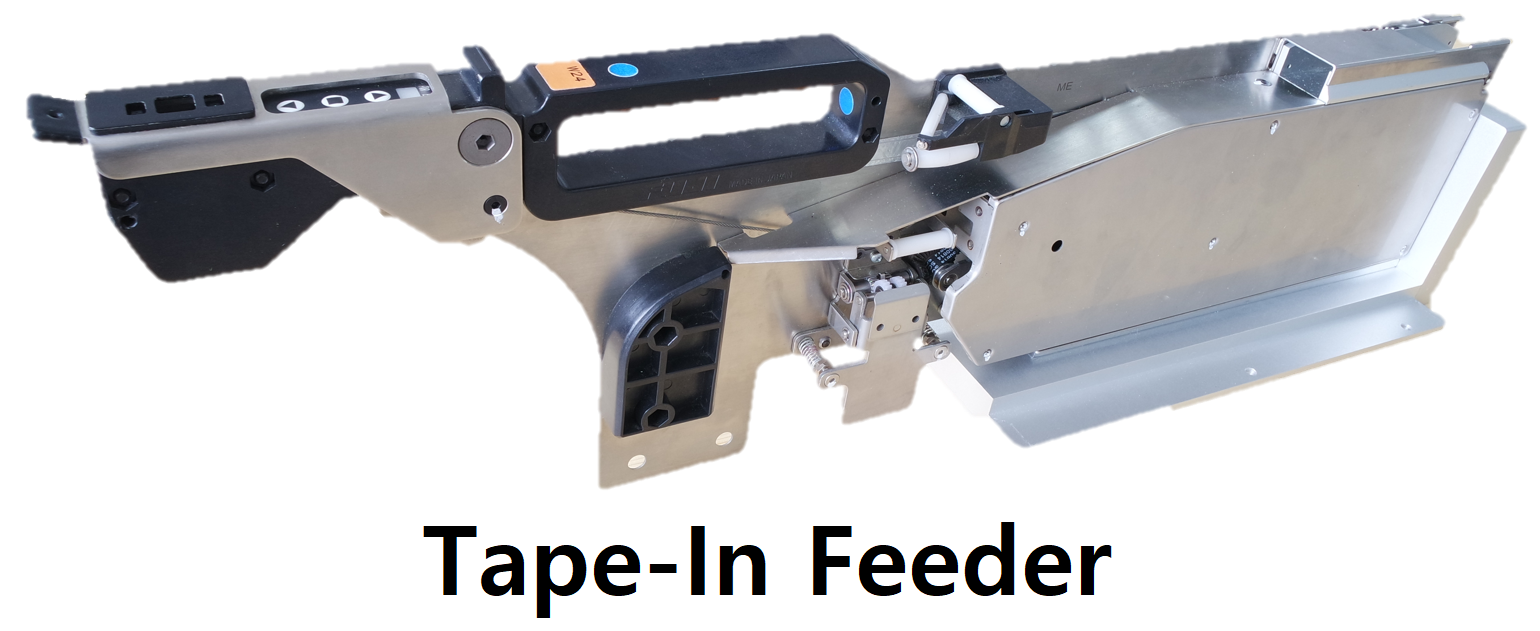

Tape-In Device

The Automated Tape-In Feeder supports electric tape widths from 8mm to 44mm, ensuring compatibility with various chip sizes for seamless automated loading.

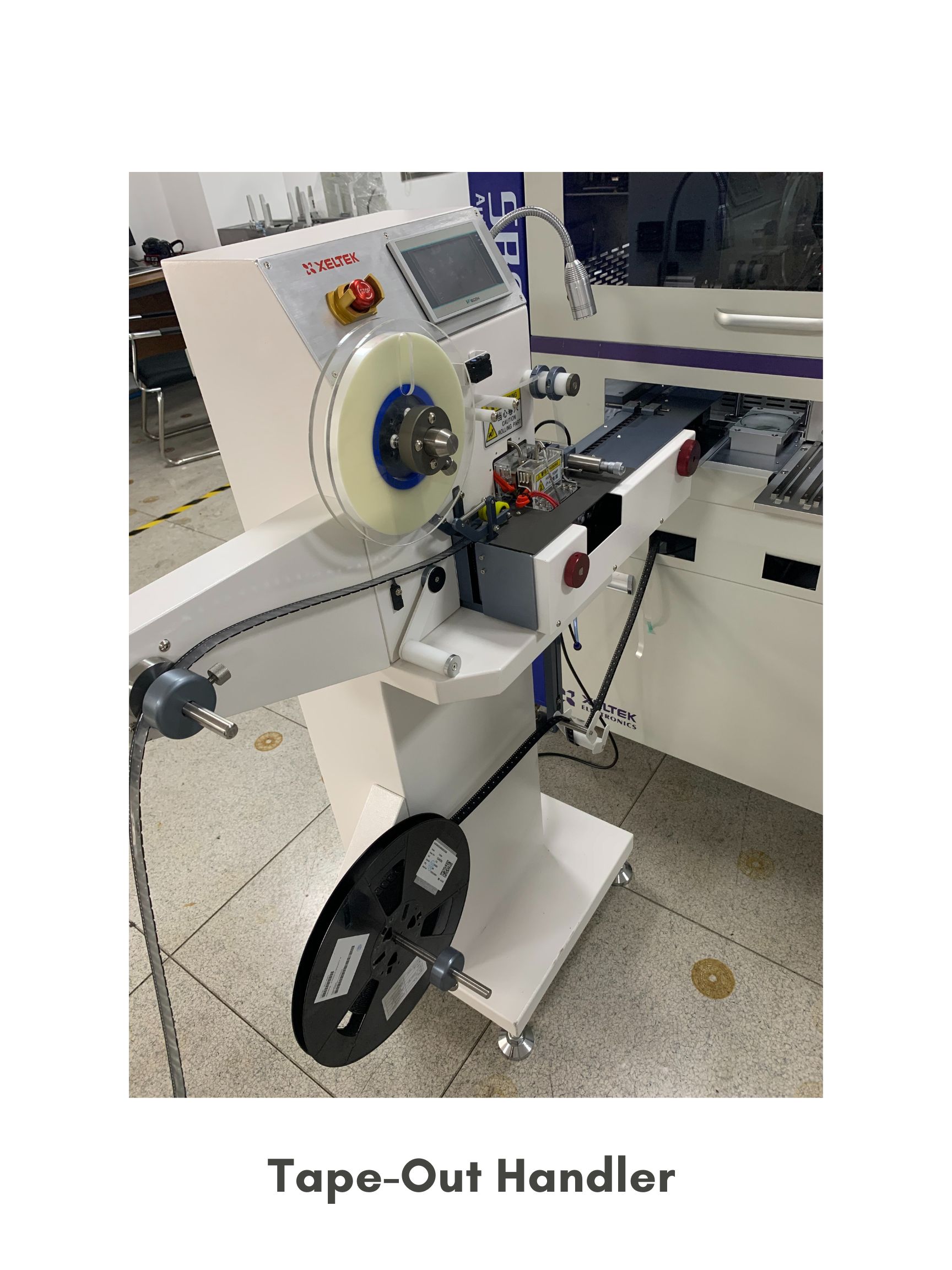

Tape-Out Device

The SuperBOT Tape-Out Device repackages programmed ICs into tape reels for production workflows. Features an adjustable rail to accommodate multiple tape sizes and supports hot and cold sealing options.

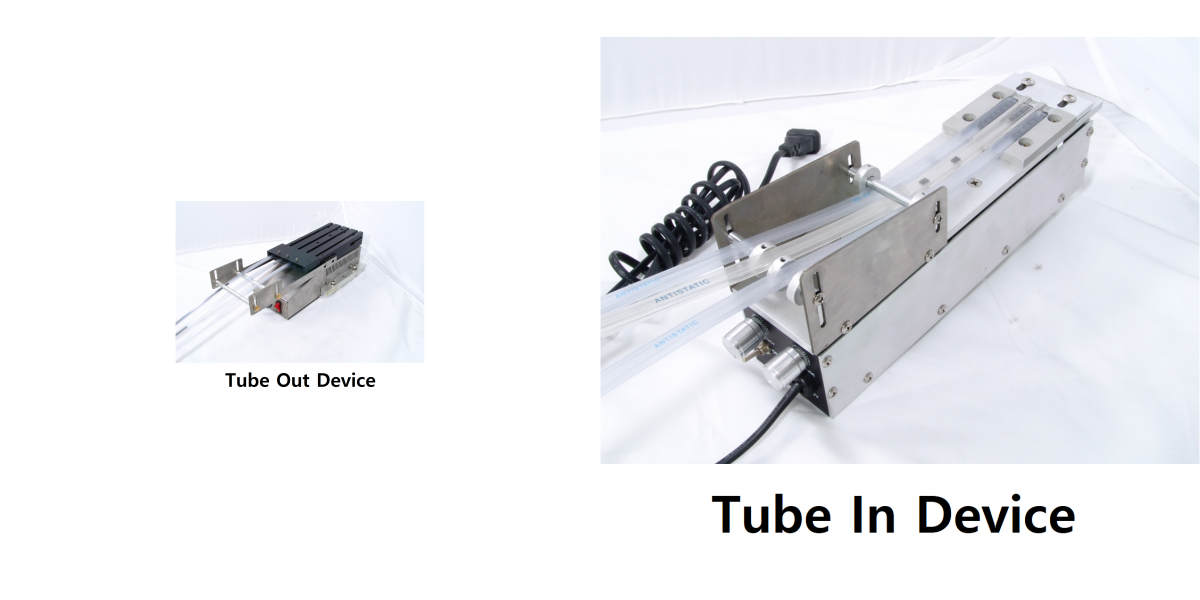

Tube-In Device

The High-Speed Tube-In Handler removes chips from tube packaging and supports various tube sizes. Capable of handling up to 8 tubes simultaneously, optimizing component feeding efficiency.

Tube-Out Device

The Tube-Out Repackaging System repackages chips into tubes, supporting up to 8 tubes at a time. Designed for high-volume automated IC programming workflows.

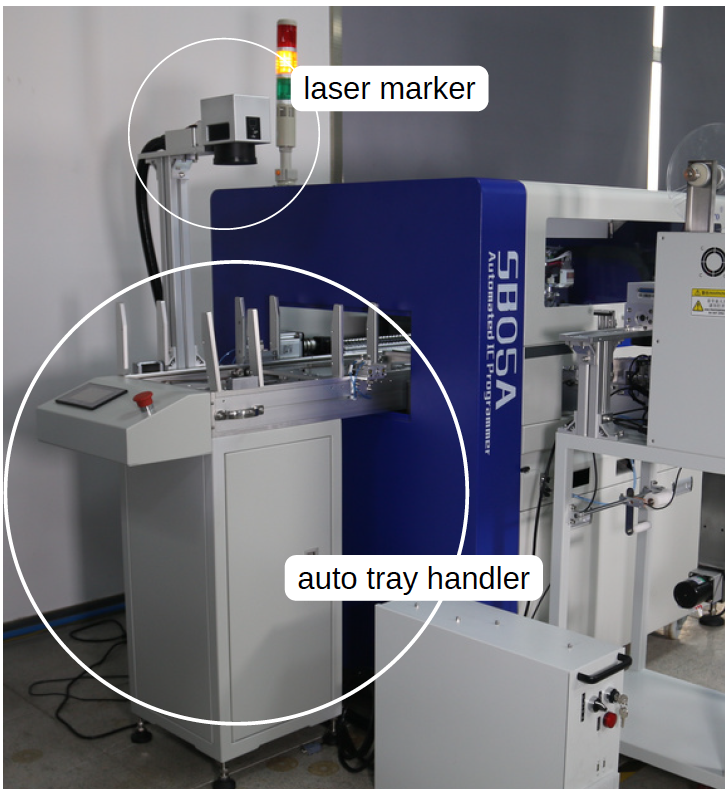

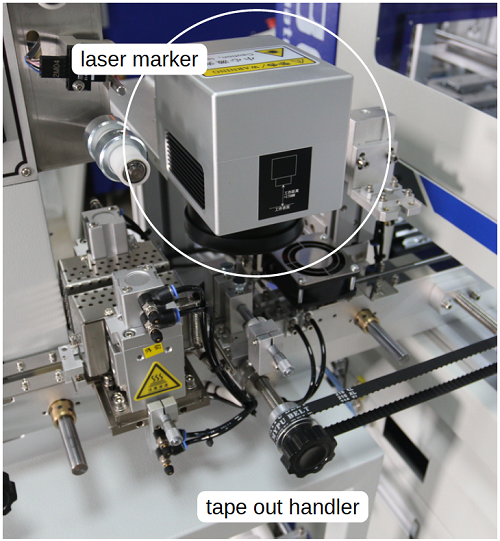

Laser Marker System

The SuperBOT Fiber Laser Marking System is designed for high-precision IC marking. Integrated with Tray and Tape handlers, it supports engraving letters, numbers, and custom symbols for batch marking.

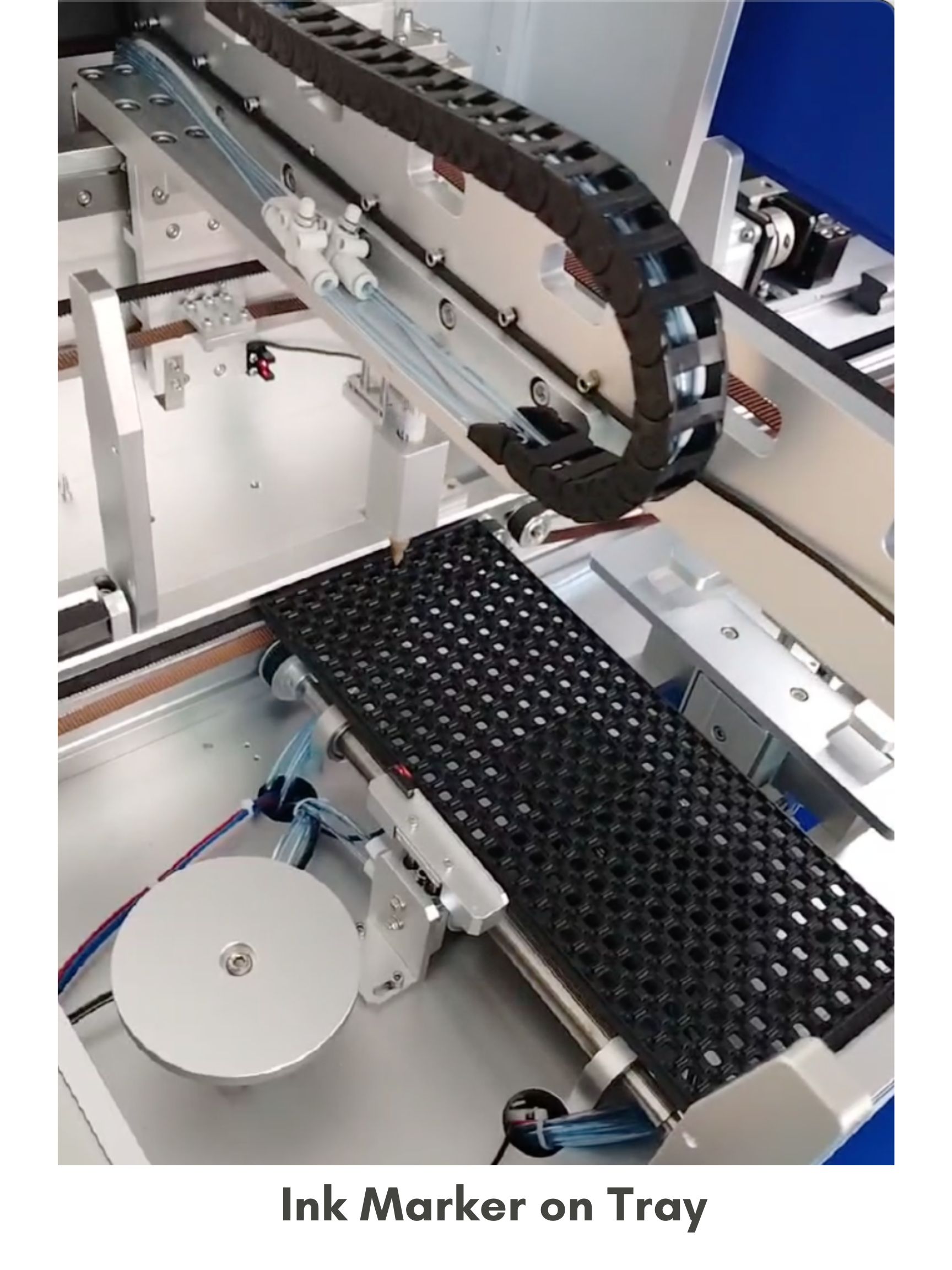

Ink Marker

The SuperBOT Ink Dot Marker is optimized for high-speed marking applications, adding visual identifiers to components on Tape and Tray handlers.
