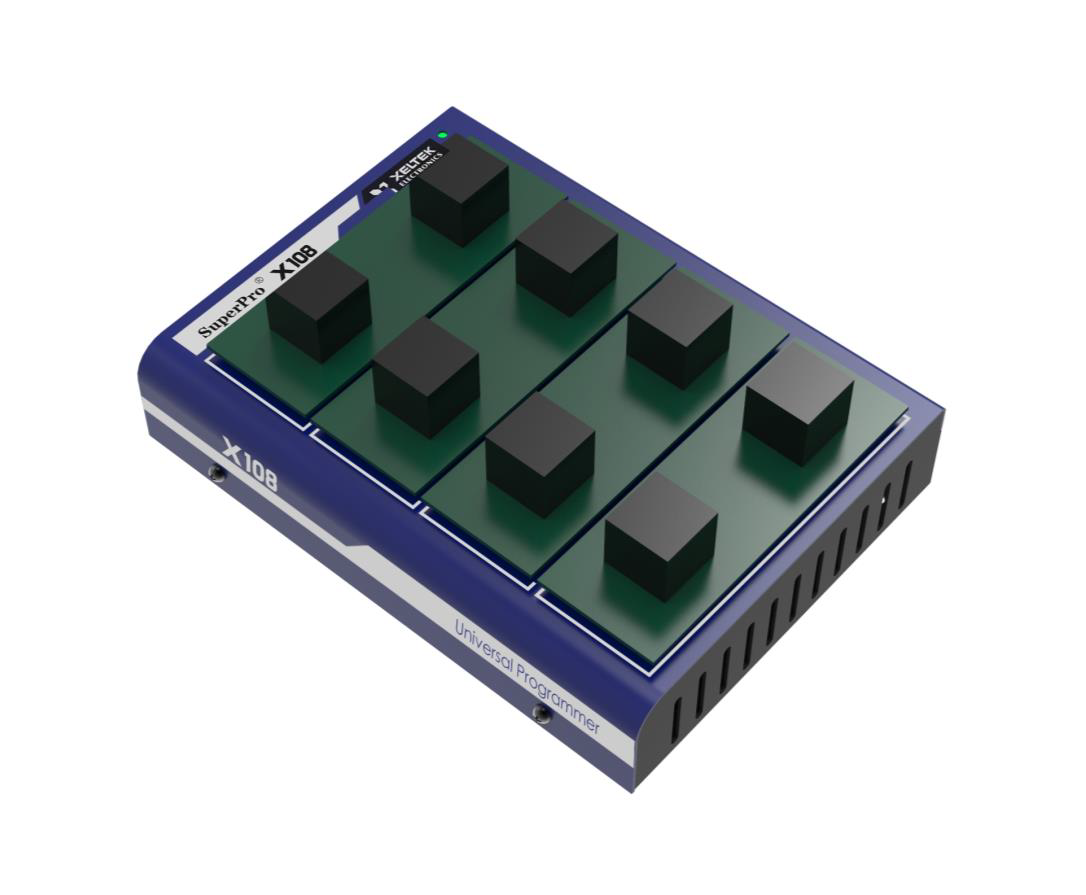

SuperPro X108

Socket adapters sold separately.

To find the compatible adapter for your chip please visit our Device Search Tool.

DIP Socket Adapter:

DX0001(SuperPro 6100N and SuperPro 6104NGP)

GX0001 (SuperPro 7500 and SuperPro 7504)

Key Features

• Programs & Verify eMMC devices in 30seconds
• Programs & Verify NAND FLASH devices in 35seconds
• Program 8 eMMC or NAND flash devices simultaneously.
• Approved programming algorithms from IC Manufacturers

Advanced and powerful software functions.

• Production mode Automatically begins programming operations once chip is inserted in socket.
• Project function Set configurations once and save your project requirements for future use. Project file includes data file, configurations, programming operations.
• Password Set a protected project file and control production volume
• Batch command Combine programming operations like program, verify, security into a single command at any sequence.
• Dynamic buffer Allowing you to program each chip with a different data file. Applications including serial number, MAC address etc.
• Gang expansion Connect up 12 SPX108 to meet production demands. Manage all units under one GUI as a concurrent production programmer.
• JAM/STAPL Player and Direct C Compatible.
• Log file and statistic table for quality control
• MES and Industrial 4 Compatible Remote communication interface and run-time database available.

Electrical and Mechanical Specifications

• PC Interface:      USB3.0
• GND Banana Jack
• Power: AC Adapter input - AC 100v-240v     Output - 12V/2A
• Main Unit Dimensions:     180 * 132 * 48 mm     weight: 0.6 Kg
• Package Dimensions:     310 x 250 x 145 mm     weight: 1.2 Kg
• Temperature: 0-40°C。
• Humidity: 20%-80%

Speed Comparison

Speed much higher than SuperPro/7500 for eMMC, NAND FLASH etc.
