SuperBot-4 Desktop Automated IC Programmer


Usually Ships in 15 Business Days

Compact Desktop Automated IC Programmer

16-Socket Concurrent Programming with a Single Tray

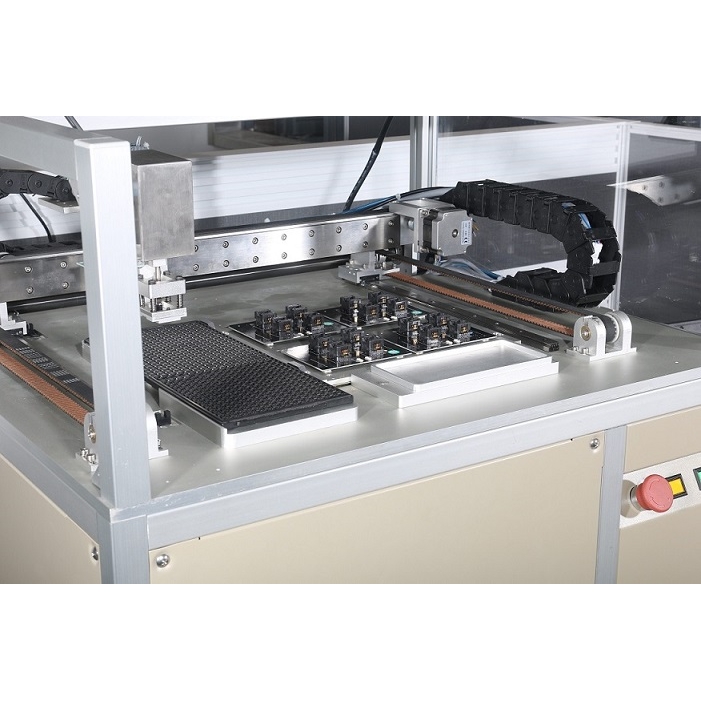

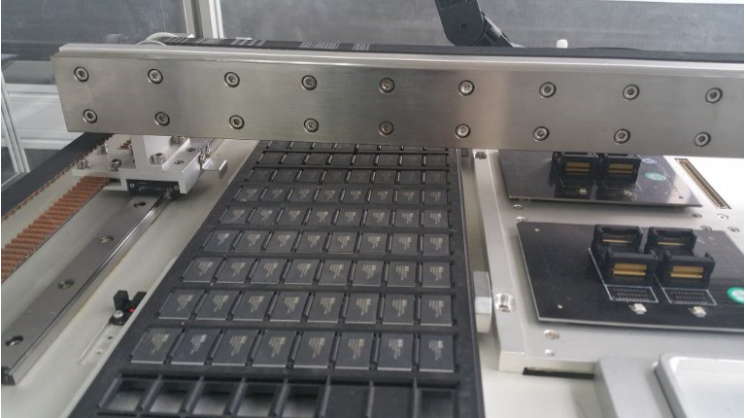

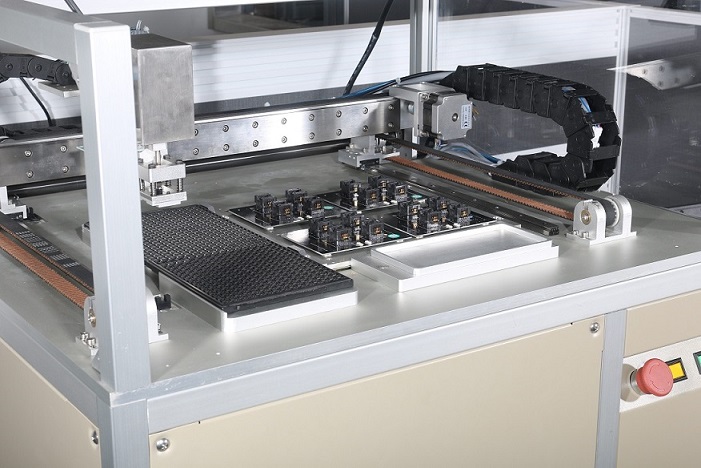

SuperBOT-4 is a single tray automated desktop programming system designed for low to medium volume IC programming. It can accommodate 4-16 socket adapters depending on programming volume needed. A nozzle picks up a blank chip from a tray, programs it, and puts back in the empty space in the same tray. When all the chips are programmed it will stop and the operator needs to replace with another blank chip tray. With a low-noise vacuum generator built in, either AC 110V(50Hz/60Hz) or AC 220V(50Hz/60Hz) power needs to be supplied. A laptop PC needs to be connected for operation. At 600 UPH max rate, it can easily program more than 10,000 chips/week. It accepts only tray and tape is not supported.

More related articles

5 YRS of free service Top 10 reasons for SuperBOT-4 Case study

Using a barcode scanner Supporting more than 100,000 devices Competitor comparison

Advantages of SuperBot 4

Lowest Cost Automated Programming System in Market SuperBot automated programmers are the most affordable and high value systems in the industry. High volume and extensive production experience enables the programmers to be the most competitive in terms of quality, price, and value in the programming industry.
Compact Desktop Design with Small Footprint SuperBOT-4 has desktop design, small footprint and built-in mute vacuum pump, no external source of air is needed. Suitable for almost any customer's work environment, including office buildings.
High Throughput SuperBot 4 is based on a high performance servo system that can program up to 600 UPH (units per hour) and is suitable for both small and large capacity devices.
High Performance Programmers SuperBot 4 is equipped with four SuperPro 7500 high speed universal programmers. Depending on the device programmed, each SuperPro 7500 can have up to 4 sockets with a total of up to 16 sockets in the system. Most programmers in the market use technology which is up to 10 years old. The best current hardware technology is to use a high speed MCU chip built inside the programmer. SuperPro 7500 programmers employ a very high-speed MCU chip producing not only reliable programming algorithms but also increasing programming speed. Utilization of ARM11 32bit MCU combined with an internal Linux operating system makes them the most advanced and versatile programmers in the industry.
LAN Operation Most volume programming applications need programmers to be operated remotely and this can be achieved by using the LAN port on SuperBOT programmers. Programmers can be connected to a local network and be remotely controlled by any computer on the network via LAN (100M) port. LAN port enables remote project loading, quality monitoring, volume control, file security. Technical department can remote control programming operations and processes, including downloading project file, command execution, project settings, and obtain real time information to achieve production goals. Remote network management provides the most protection for intellectual property. Project data and files are never shared with operators because files are remotely loaded by authorized engineers.
The Most Durable and Reliable Systems in the Industry China is the hub of the world Electronics manufacturing and Xeltek automated programmers are widely installed at most major Electronic manufacturing plants with multiple installations at many locations. Most companies run production 24 hours/day and 7 days/week programming millions of devices per year. Xeltek automated programmers have been refined to run non-stop, withstand harsh and battle-ground like environment.
Largest Device Support Located in Silicon Valley, we keep good relationships with many major IC companies that are important for us to continuously support new devices. Xeltek currently supports more than 100,200 devices, which is the largest device library in the programming industry. Requested device algorithms can be added within a week - average lead time from other manufacturers is over two months.
Powerful and Intelligent Software User-friendly software with graphical interface cuts learning curve. Setup data saved for next operation. Software also includes resourceful log table, convenient production and quality tracking, authorization, flexible stopping strategy for bad socket or module.
Supports Tray-In and Tray-Out Standard I/O device of the machine. Operator will replace the programmed tray from the SuperBot machine manually after the full tray is programmed. Customer does not need to buy any other accessory while using this option.
Short Change-Over Time Socket adapters are easily interchangeable and socket positioning can be performed automatically. Use of project files further reduces changeover time.
Better Yield Our semiconductor manufacturer approved algorithms, precision and clean signals guarantee high programming yield. Algorithms are performed with state machine architecture constructed with FPGA to achieve an ultrahigh programming speed. Along with the low voltage components selection, they program devices down to 1.2 volts.
Chip Size Devices between 2x2mm to 30x30mm can be programmed. SuperBot 4 supports the SOT23 package which measures only 2x3mm. We do not know of any other manufacturer who supports such a small package type and this is a testimony that SuperBot 4 excels in its accuracy and precision.
Socket Cost and Investment Cost recovery in short period with low investment in the beginning as socket adapters are universal for up to 144 pin chips. For most of competitor programmers, user has to invest on device specific socket adapters for chips greater than 48 pins thus increasing cost in long term.
Technical Support More than 30 engineers are devoted to developing new programmers, socket adapters and device algorithms. Engineers are fluent in English and provide excellent direct support through emails, telephone, live chat an online ticketing system. With our locations in the United Stated and China, providing 17 hours of continuous support worldwide daily, we are confident to be able to provide support anywhere in the world.

What is included?

SuperBOT 4 comes with
  • 4ea Superpro7500 programmer
  • X, Y, Z Axis movement
  • Vacuum pump
  • Calibration camera
  • One pick up nozzle
Optional Accessories


CE Compliant RoHS Compliant ISO 9001 Certified ISO 4001

Do you have any questions about SuperBot 4?

Ask Us Now

SuperBOT 4

Ready to Use


Features & Hardware


Maximum Throughput

600 Units Per Hour (Devices with programming time less than 50 seconds)


Single Tray Operation

4-16 Sockets / 4 Adapters

Number of Nozzles

Single Pick & Place Nozzles

Operable Chip Size

Minimum: 2x2mm Maximum 25x25mm

Devices Supported

EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR & NAND), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU, etc.

Supported Device Package Types


Mechanical Parameter & Weight


Main unit

750(L) x 600(W) x 622(H) mm120kg




Built-in low noise vacuum generator

Main Hardware & OS


Operation System



Remote Access


Industrial PC Required

4 SuperPro 7500Programmers

LAN Supported

Electrical Specs


Power Adapter Type


Power Consumption




Software Download & Device List

Software Download Download Device List View Online Device List

Xeltek is committed to providing excellent support for our international customers. Our global network of representatives and distributors support customers in local time. Select distributors have been factory trained to support all manual and Automated programming support requirements. They can assist with troubleshooting and are equipped with spares modules in the event that an automated programmer needs to be repaired. All distributors can facilitate the handling of product repairs/returns. For urgent issues, customers always have an option to be in direct contact with support engineers in Xeltek USA and Xeltek China.

More than 30 engineers are devoted to developing new programmers, socket adapters and device algorithms. Engineers are fluent in English and provide excellent support through emails, telephone, live chat, and online ticketing system.

  • Quick device update (2 weeks upon customer request)
  • Bi-weekly software updates (Free download)
  • Xeltek provides the first 5 years hand-holding support for free!
  • Xeltek provides free defective hardware parts replacement service for 1 year from the date of installation.
  • Xeltek ships additional emergency spare parts within 24 hours upon request.

With the 2 operations (Xeltek China and Xeltek USA) in conjunction with local support providing 24 hours of continuous support worldwide, we are able to resolve customer technical support issues quickly.

Find out more:

SuperBOT-4 is easier to use than SuperBOT-2 and 3 models so no formal training is needed to operate and maintain the system.

SuperBOT5: 1280(L)×840(W)×1500(H)mm Weight: 450Kg

SuperBOT 5e: 1260(L)×900(W)×1550(H)mm Weight: 248Kg.
