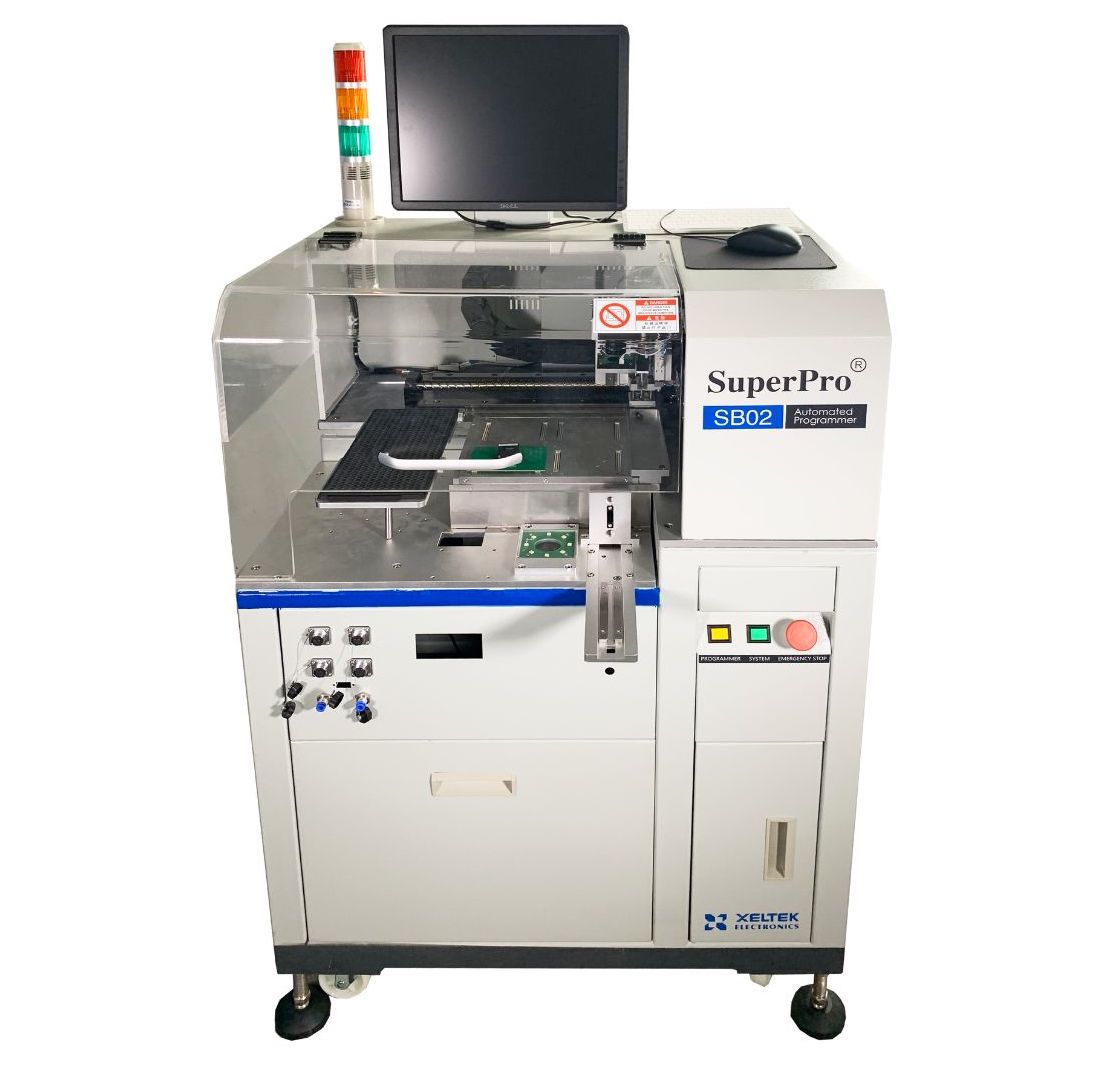

SuperBot-2 Automated IC Programmer

SB-02

Usually Ships in 15 Business Days

16-Socket Automated IC Programmer

"24/7 Automated Programming Workhorse"

SuperBot 2 is an automatic IC programmer with high performance and reasonable price for large-scale electronic product manufacturing. This programmer can automatically pick up, place, program, take out and pack up chips. With fully automated operation setup capabilities, it can improve working efficiency and minimize human errors.

The value of a programming product is a combination of price, the number of devices supported, programming speed, regular update of devices, free downloads, and reliability. Xeltek products are designed with the above factors in mind which provide the best value in the industry.

More related articles

New features on SuperBOT-3 5 YRS of free service Top 10 reasons for SuperBOT-2 Case study

Using a barcode scanner Operating SuperBOT remotely Supporting more than 100,000 devices Competitor comparison

Varied I/O devices

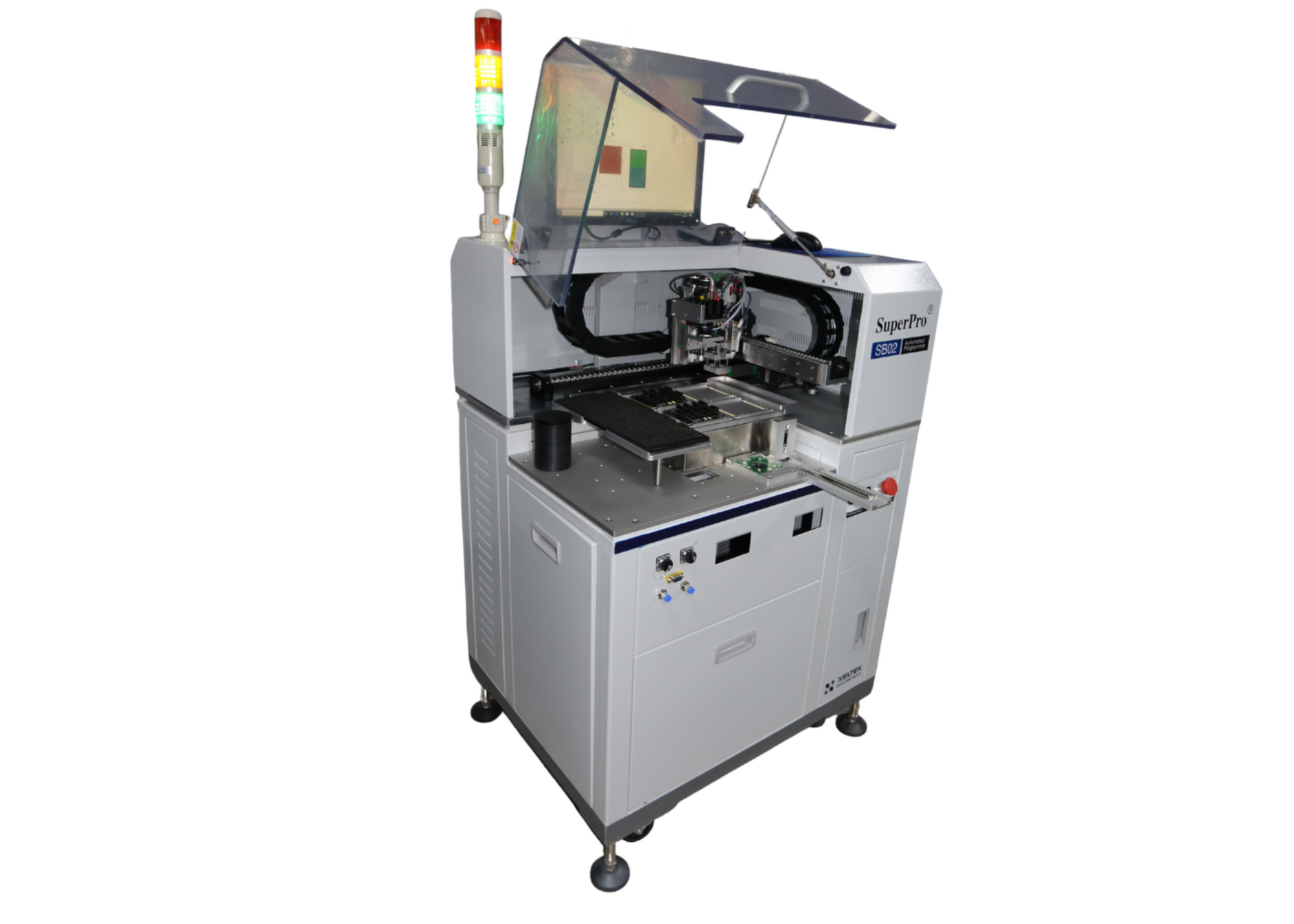

Manual Tray (Standard equipped) Standard I/O device of the machine. Operator will replace the programmed tray from the SuperBot machine manually after the full tray is programmed. Customer does not need to buy any other accessory while using this option.

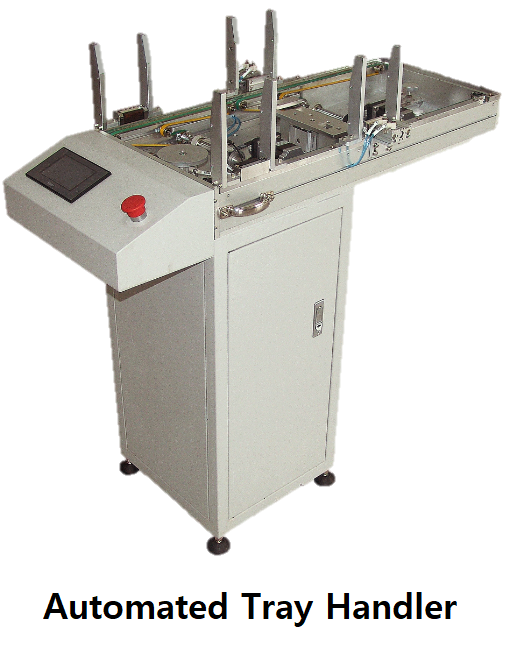

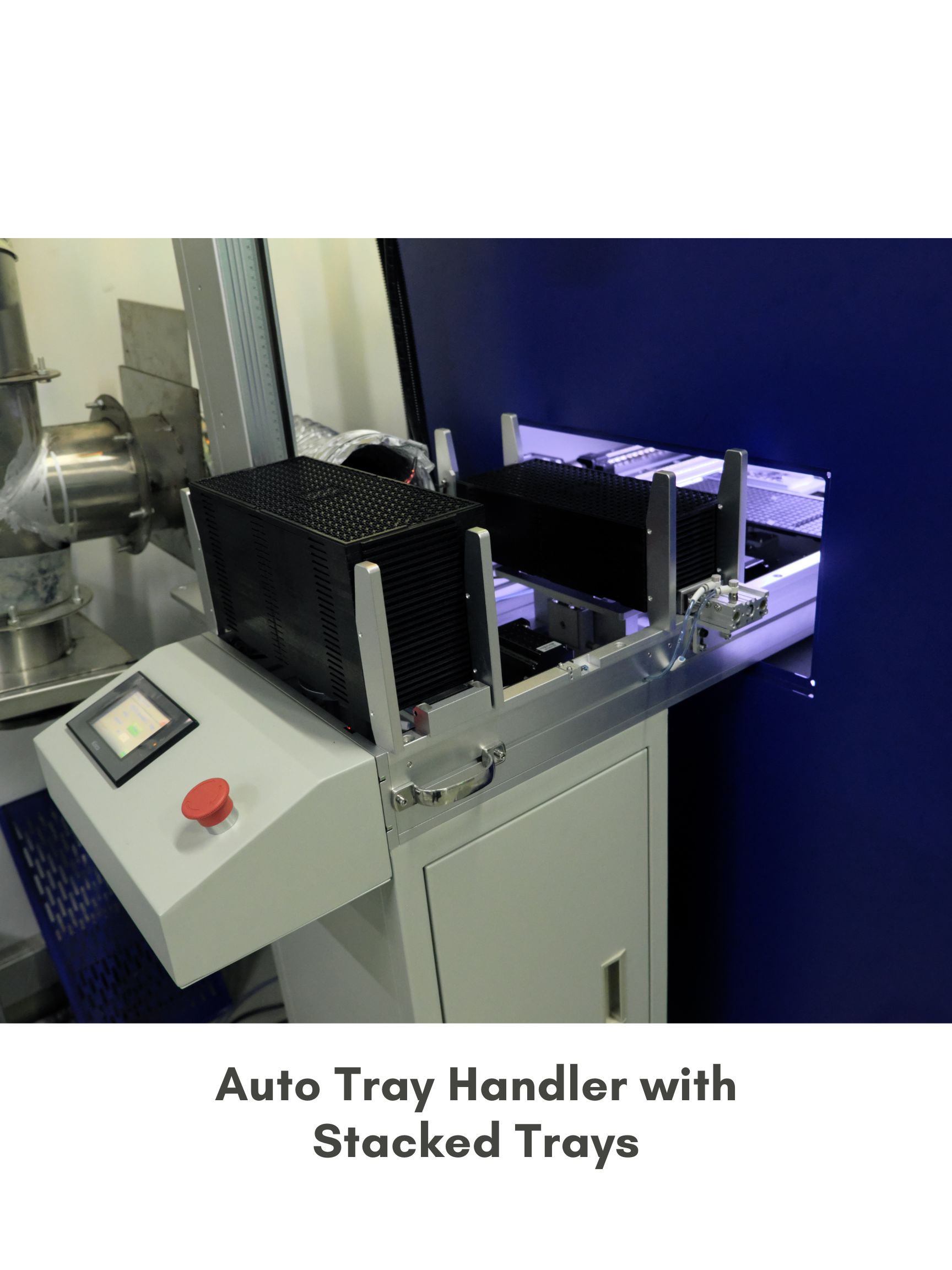

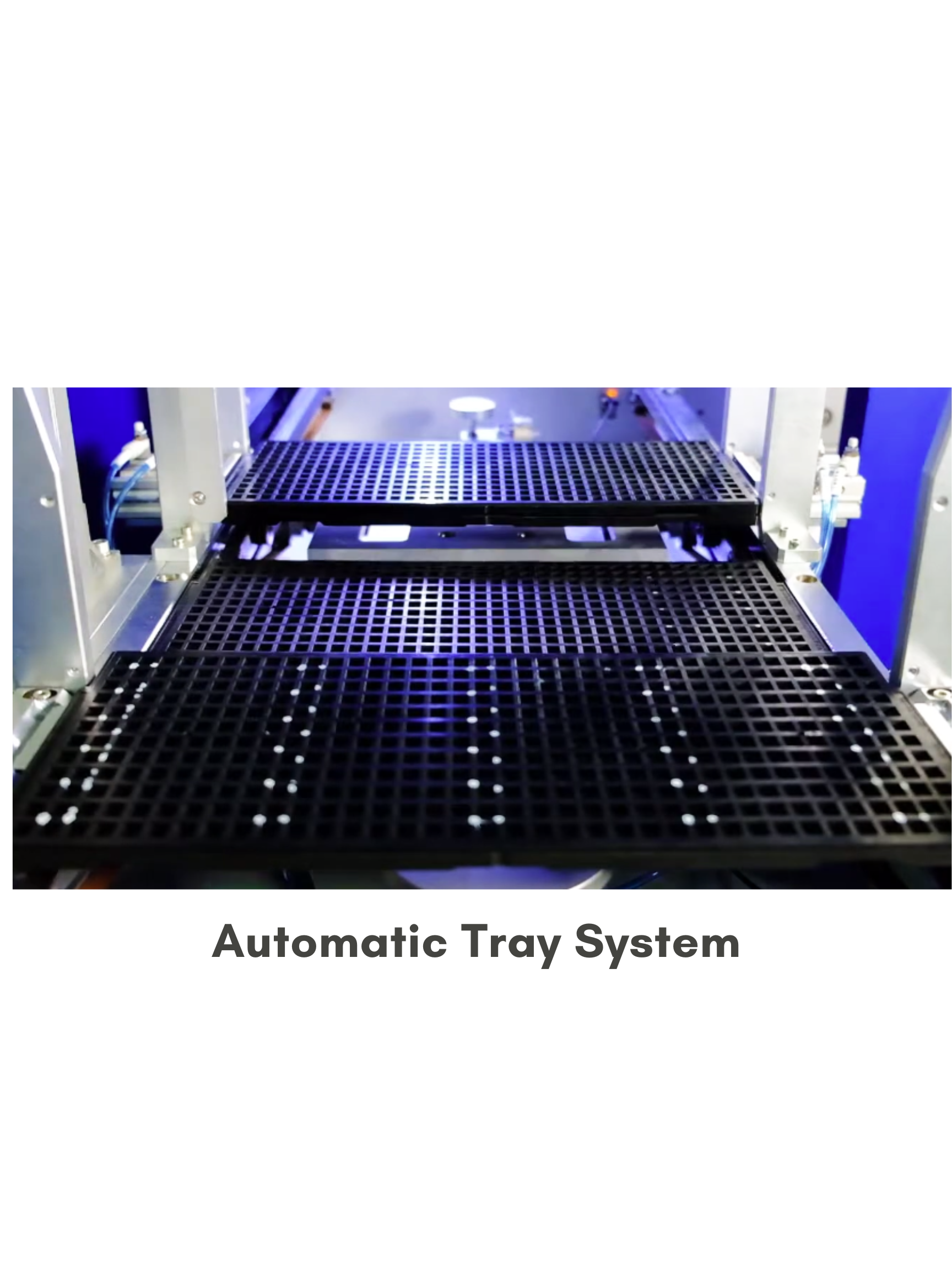

Auto Tray Device This device is an extension of the fixed tray. It includes tray-in and tray-out and users can put 20 trays into the device. When the machine is running, users can add trays or take out trays without stopping the machine. The auto tray device can also be installed outside of the whole machine and trays can be automatically changed without the need to open the upper cover, which saves tray changeover space and avoid human error during tray changeover. The auto tray device can stack up to 20 JEDEC trays. Watch video

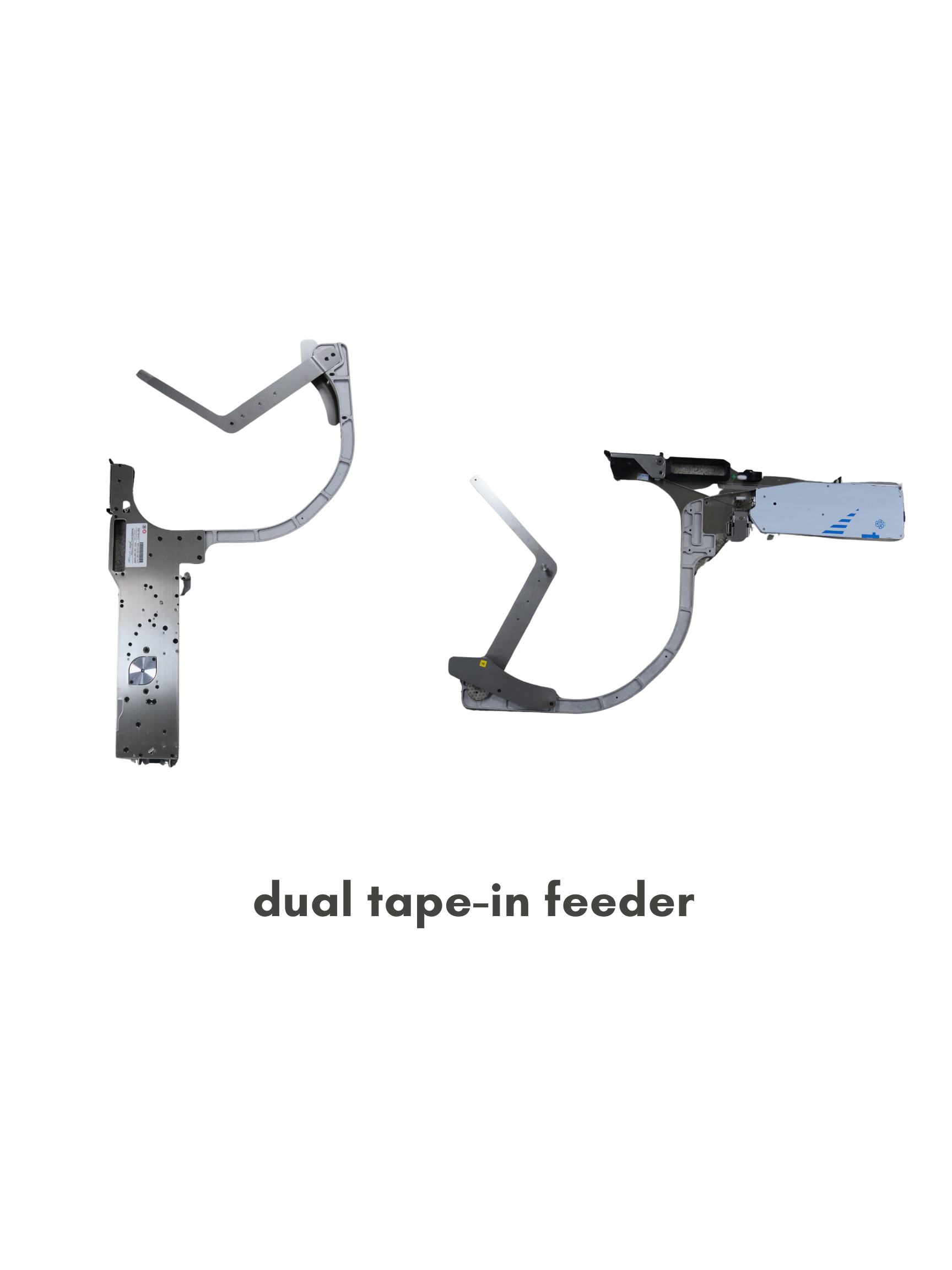

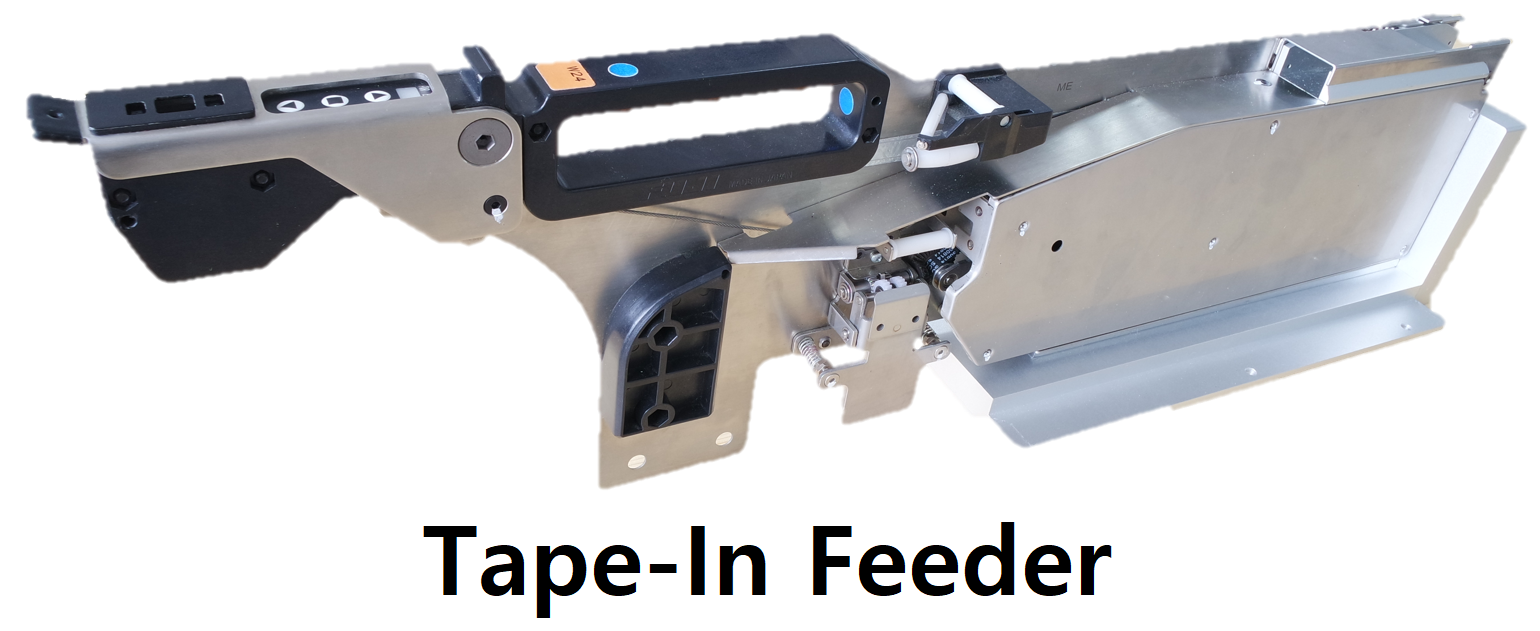

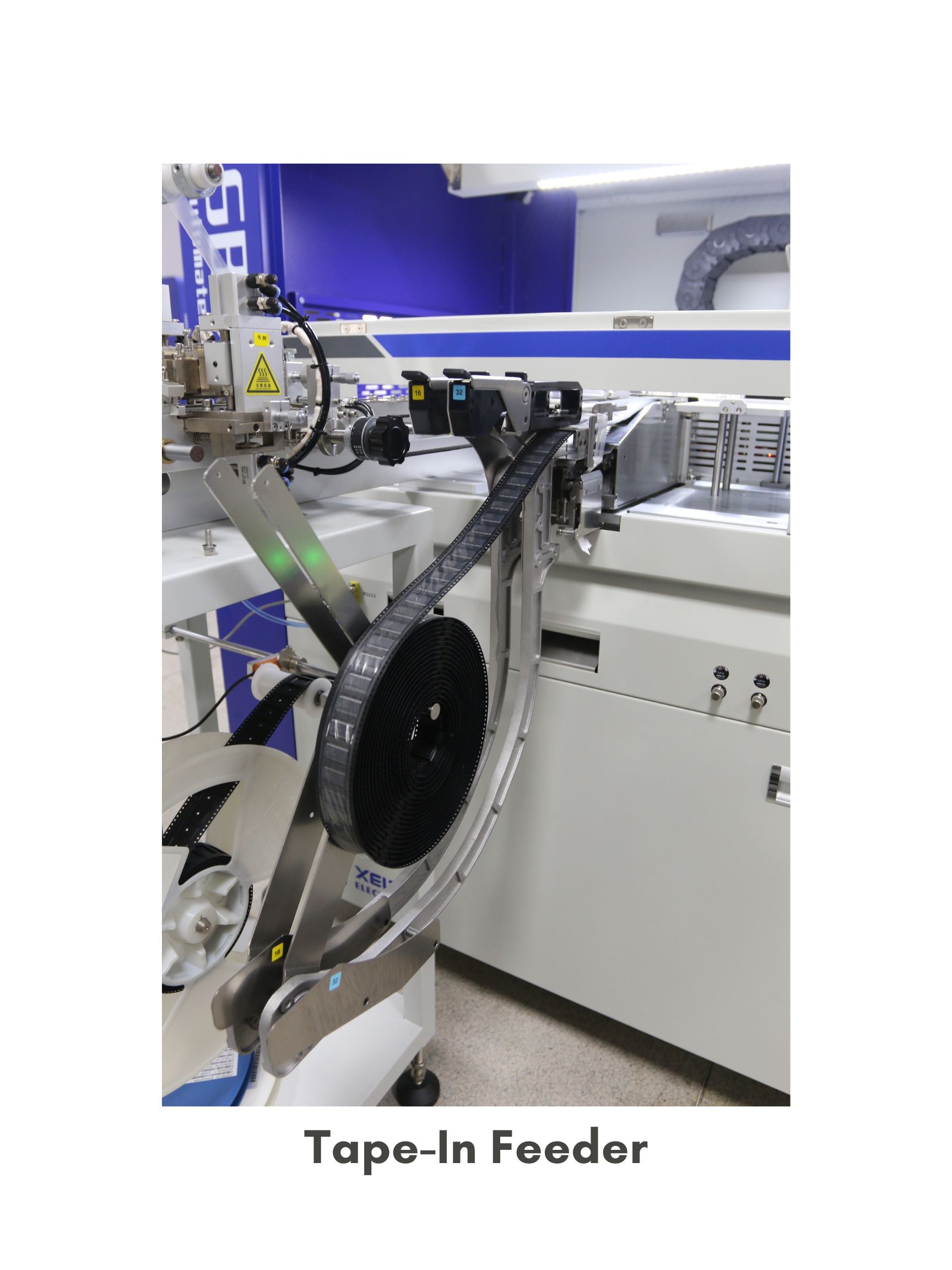

Tape-In Device Electric Tape in feeder. Tape width between 8 and 32mm applicable. Tape-in device can be configured as per the chip to be programmed. For SOIC and TSOP packages customer will need 2-3 types of different tape in the devices depending on the width of chips to be programmed. Watch video

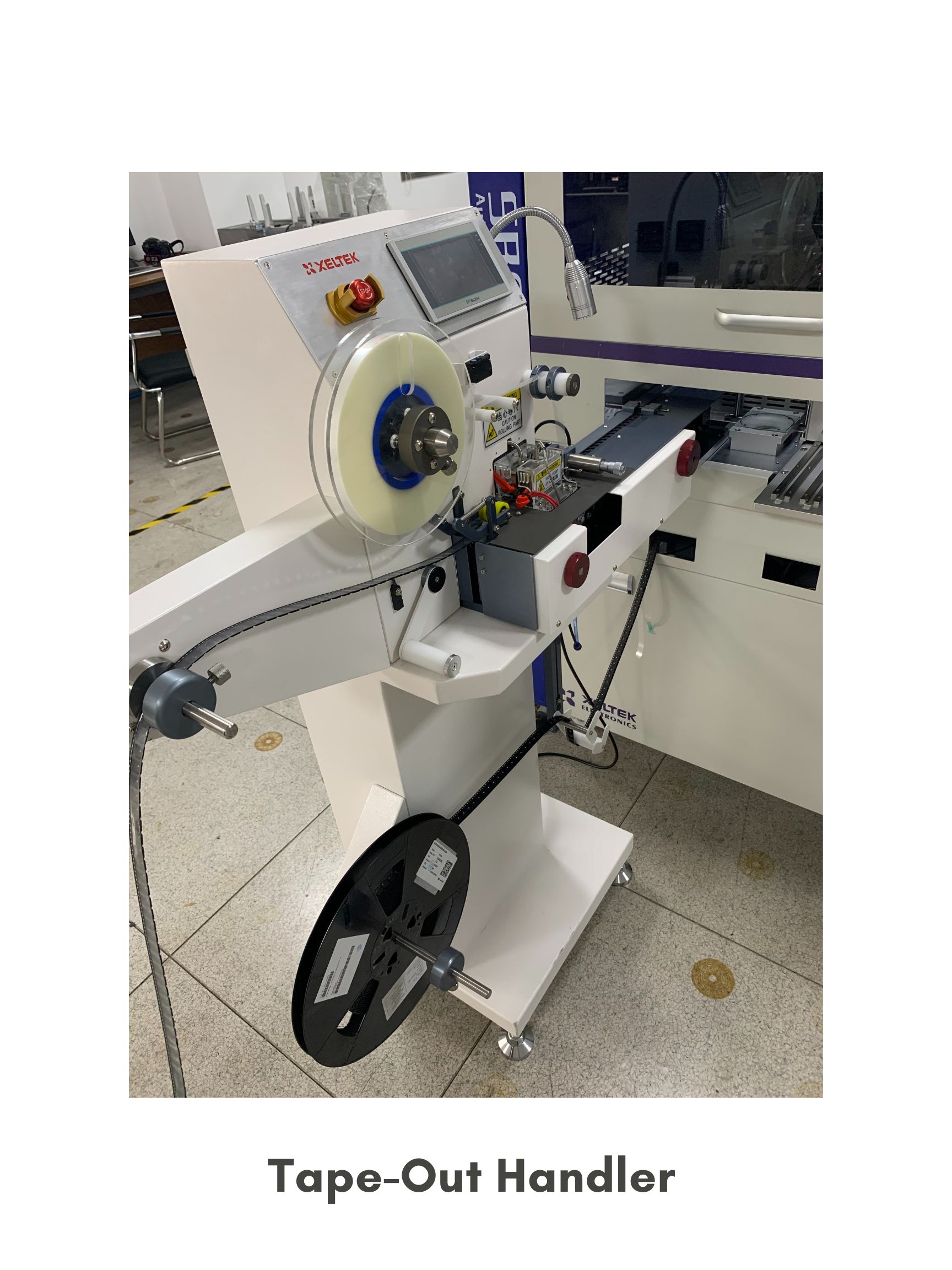

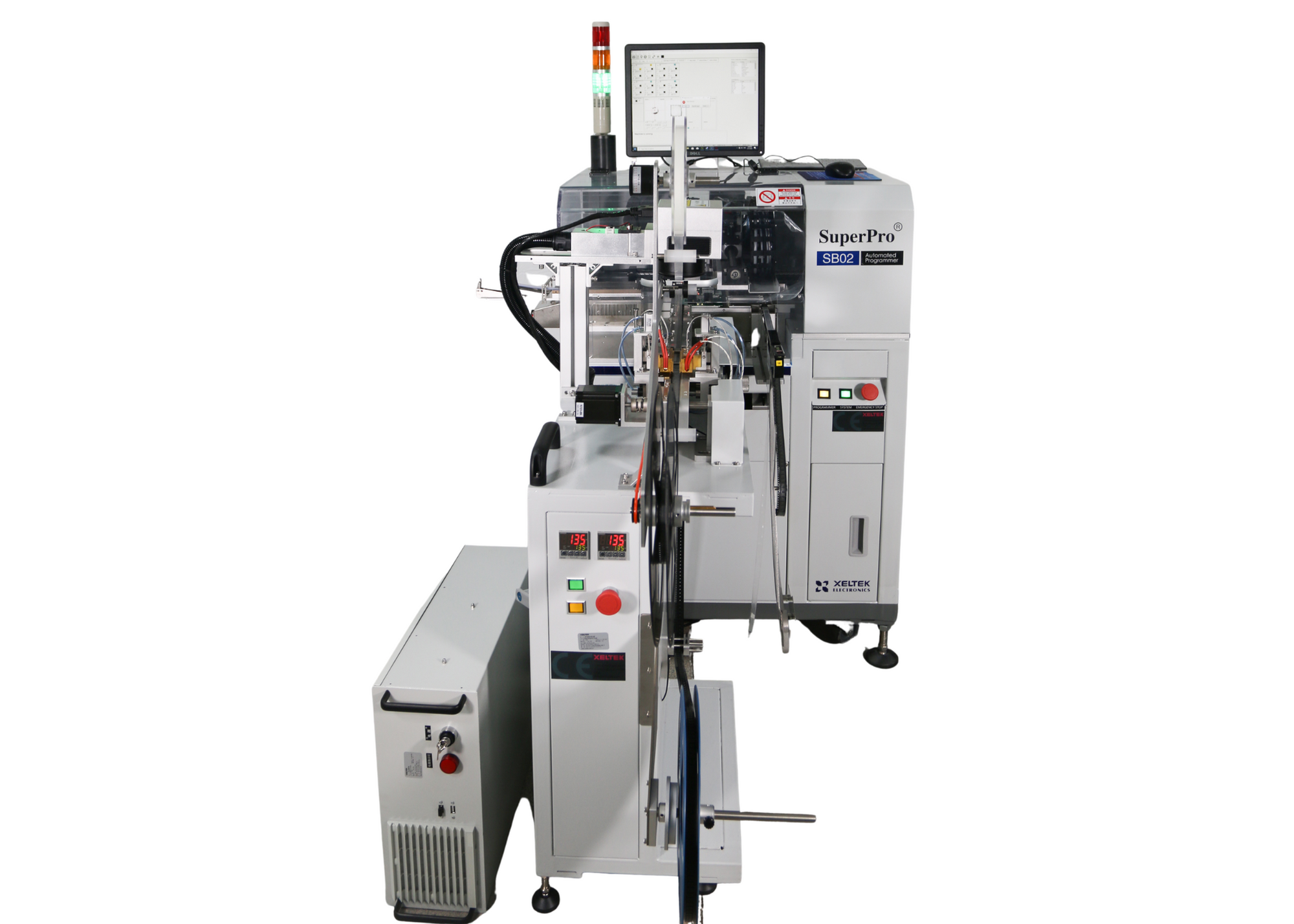

Tape-Out Device Connects to a SuperBOT2 or SuperBOT3 for fully automatic operation. 8-32 mm tape widths can be used with the device. Output reel is sealed with heated tape. Watch video

Tube-In Moves chips in the machine. Chip guider for different chip width (optional). IO is multi feed and upto 8 tubes can be operated at once (optional). Tube IO pages should also be updated accordingly.

Tube-Out Moves chips out of the machine. Chip guider for different chip width (optional). IO is multi feed and upto 8 tubes can be operated at once (optional). Tube IO pages should also be updated accordingly. Watch video

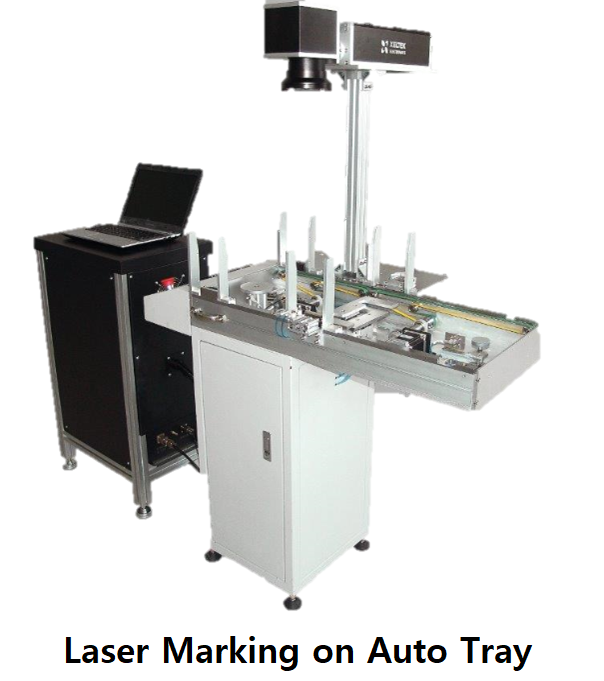

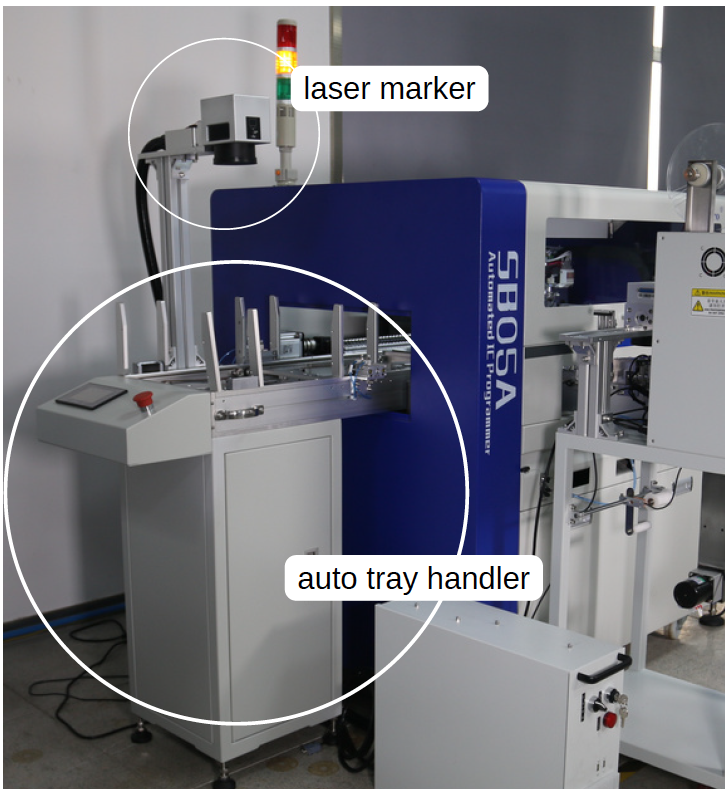

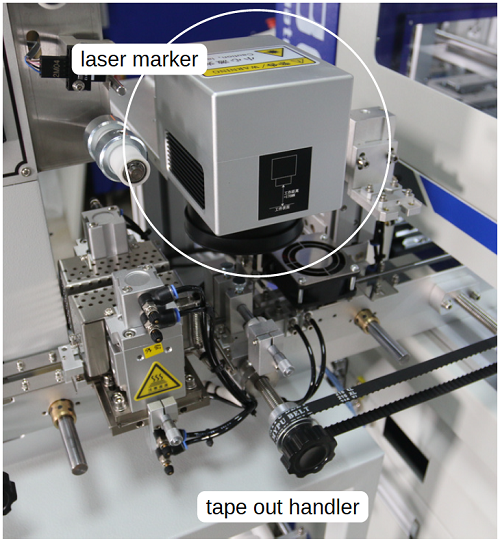

Laser Marker System An optional attachment to the tape-out or the auto tray device for high speed marking. It marks up to 4 characters on the passed chips. Watch video

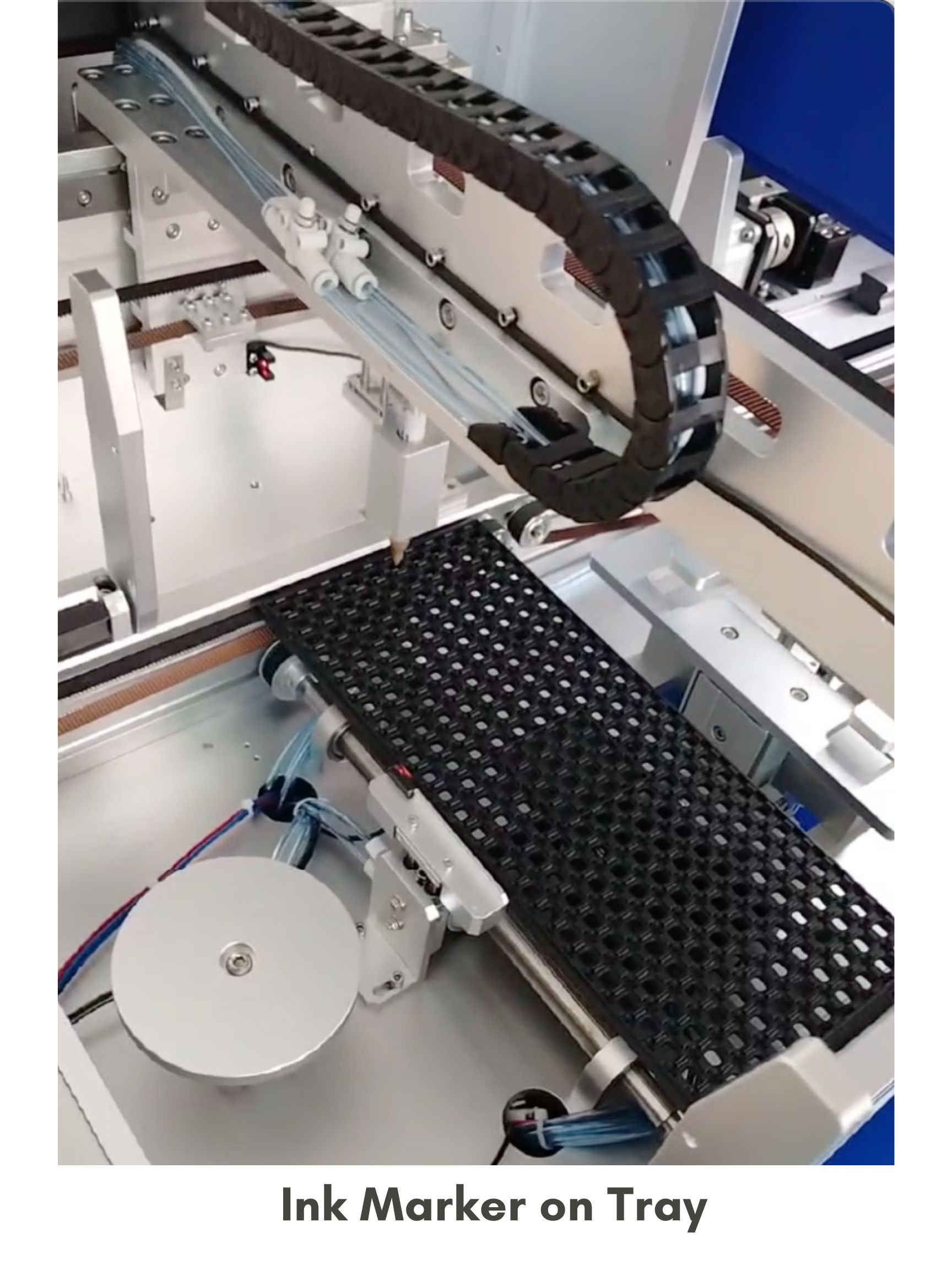

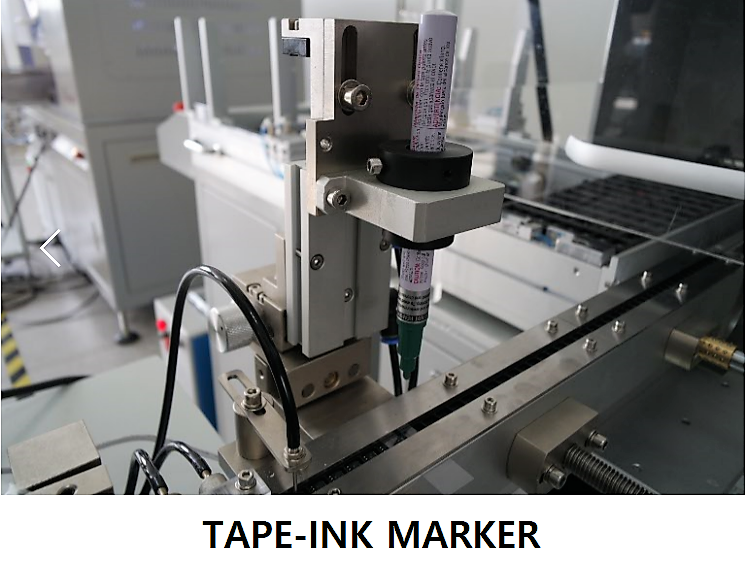

Tape Ink-Marker Add-on item for tape out machine. On completion of programming the chip can be automatically marked with a point using ink (optional). Watch video. Tray Ink Marker Add-on item for auto tray machine. On completion of the programming the chip can be automatically marked with a point using ink (optional). Watch video

Advantages of SuperBOT-2

High Throughput SuperBot 2 is based on a high performance servo system that can program up to 1200 UPH (units per hour) (for devices with programming time less than 36 sec) and is suitable for both small and large capacity devices. Throughput is up to 30 times higher than SuperBot 1, especially higher for large capacity devices like eMMC, NAND/NOR FLASH, SPI FLASH. It can be operated 24x7 and can provide throughput of 864,000 UPM (units per month). One person can supervise many SuperBOT machines and once they are programmed they can usually be left to operate by themselves.
High Performance Programmers SuperBot 2 is equipped with four SuperPro 7500 high speed universal programmers. Depending on the device programmed, each SuperPro 7500 can have up to 4 sockets with a total of up to 16 sockets in the system. Most programmers in the market use technology which is up to 10 years old. The best current hardware technology is to use a high speed MCU chip built inside the programmer. SuperPro 7500 programmers employ a very high-speed MCU chip producing not only reliable programming algorithms but also increasing programming speed. Utilization of ARM11 32bit MCU combined with an internal Linux operating system makes them the most advanced and versatile programmers in the industry.
LAN Operation Most volume programming applications need programmers to be operated remotely and this can be achieved by using the LAN port on SuperBOT programmers. Programmers can be connected to a local network and be remotely controlled by any computer on the network via LAN (100M) port. LAN port enables remote project loading, quality monitoring, volume control, file security. Technical department can remote control programming operations and processes, including downloading project file, command execution, project settings, and obtain real time information to achieve production goals. Remote network management provides the most protection for intellectual property. Project data and files are never shared with operators because files are remotely loaded by authorized engineers.
The Most Durable and Reliable Systems in the Industry China is the hub of the world Electronics manufacturing and Xeltek automated programmers are widely installed at most major Electronic manufacturing plants with multiple installations at many locations. Most companies run production 24 hours/day and 7 days/week programming millions of devices per year. Xeltek automated programmers have been refined to run non-stop, withstand harsh and battle-ground like environment.
Largest Device Support Located in Silicon Valley, we keep good relationships with many major IC companies that are important for us to continuously support new devices. Xeltek currently supports more than 100,000 devices, which is the largest device library in the programming industry. Requested device algorithms can be added within a week - average lead time from other manufacturers is over two months.
Better Yield Our semiconductor manufacturer approved algorithms, precision and clean signals guarantee high programming yield. Algorithms are performed with state machine architecture constructed with FPGA to achieve an ultrahigh programming speed. Along with the lo w voltage components selection, they program devices down to 1.2 volts.
Lowest Cost Automated Programming System in Market SuperBot automated programmers are the most affordable and high value systems in the industry. High volume and extensive production experience enables the programmers to be the most competitive in terms of quality, price, and value in the programming industry.

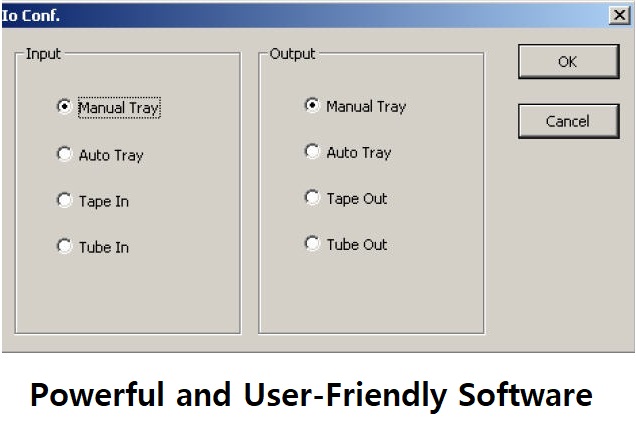

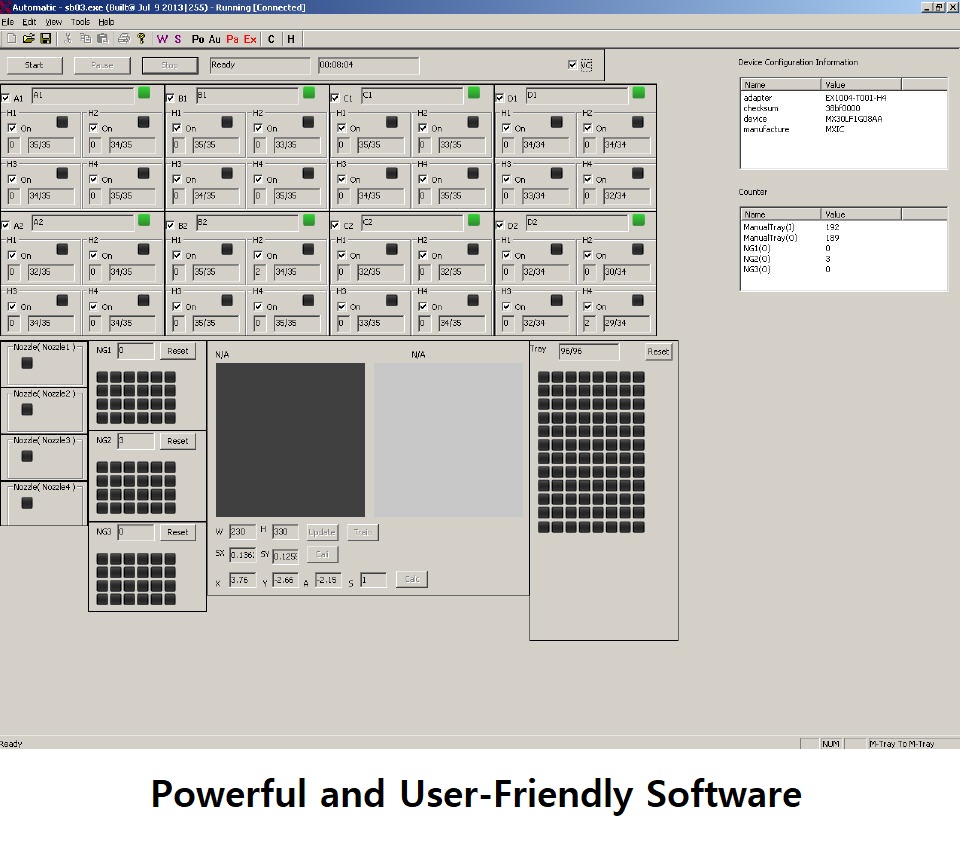

Powerful and Intelligent Software User-friendly software with graphical interface cuts learning curve. Setup data saved for next operation. Software also includes resourceful log table, convenient production and quality tracking, authorization, flexible stopping strategy for bad socket or module.
Chip Size Devices between 2x2mm to 30x30mm can be programmed. SuperBot 2 supports the SOT23 package which measures only 2x3mm. We do not know of any other manufacturer who supports such a small package type and this is a testimony that SuperBot 2 excels in its accuracy and precision.
Short change-over time I/O devices and socket adapters are easily interchangeable and socket positioning can be performed automatically. Auto Tray and Tape-out can be permanently attached to SuperBot eliminating changeover time when moving from tape-out to auto tray. Tape-in feeder changeover time is below 10 minutes and laser marker changeover time between tray to tape is under 15 minutes.
Socket Cost and Investment Cost recovery in short period with low investment in the beginning as socket adapters are universal for up to 144 pin chips. For most of competitor programmers, user has to invest on device specific socket adapters for chips greater than 48 pins thus increasing cost in long term.
Technical Support More than 30 engineers are devoted to developing new programmers, socket adapters and device algorithms. Engineers are fluent in English and provide excellent direct support through emails, telephone, live chat an online ticketing system. With our locations in the United Stated and China, providing 17 hours of continuous support worldwide daily, we are confident to be able to provide support anywhere in the world.

Xeltek offers free training up to 5 days at our factory. Why we offer free training?

When it comes to production programming time cannot be wasted, while waiting for a certified technician like most companies offer it may take several days until they can service your unit losing production time. With our training classes we will show you how to service, operate and troubleshoot the Automated System, leading to low cost maintenance service and quick repair done by your operators. Our free training has be beneficial to all our SuperBot customers, leaving them confident about our SuperBot. Confident enough that our customer AITEK a Mom & Pop shop was able to tame their SuperBot 3 with little to no help. They were able to set up their unit within 1 day! Read more about their success with our SuperBot 3: Click Here

What is included?

SuperBOT 2 comes with
  • 4 x SuperPro 7500
  • Built-in Industrial PC with Windows 7
    • 19" LCD Display
    • Keyboard and mouse
Optional Accessories

Certificates

CE Compliant RoHS Compliant ISO 9001 Certified ISO 4001

Do you have any questions about SuperBot 2?

Ask Us Now
XTAI-N-12
Usually ships in 10-15 business days

XTAO-01
Usually ships in 10-15 business days

XTR-01-A
Usually ships in 10-15 business days

LM-04

Usually Ships in 14 Business Days


XTUI-01

Usually Ships in 15 Business Days


XTUO-01
Usually ships in 10-15 business days

XTAO-M
Usually ships in 10-15 business days

XTR-M
Usually ships in 10-15 business days

Motion System

Motion System

High Precision Servo System

Resolution

X axis: ±0.02mm; Y axis: ±0.02mm; Z axis: ±0.02mm; θaxis: ±0.1°

Stroke

X axis: 1000mm; Y axis: 500mm; Z axis: 40mm

Pick & Place Header Accuracy

±0.07mm

Operable Chip Size

Minimum: 2x2mm; Maximoum: 25x25mm

Maximum Throughput

1200 Units Per Hour



Vision System

Camera

Downward CCD camera for sockets / pick & place spots positioning. 512×512 pixels

Field of View

30x30mm



Electrical & Hardware Specifications

Devices Supported

EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR & NAND), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU, etc.

Package

DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP etc.

Power Supply

Electrical Spec. of the AC adapter: AC input 90V to 250V, 50/60Hz, DC output AC 220V; Power: 2KW

Power Consumption

1.5KVA

Air

Clean, pressure: 0.6MPa, consumption: 30 liter/min

Size

Main Machine

Auto Tray

Tape-Out

820(L)×640(W)×1550(H) mm

1100(L)×380(W)×1300(H) mm

1100(L)×380(W)×1300(H)

Weight

Main machine: 248 Kg

PC Interface

USB 2.0, LAN

Shipping Dimension

Main Machine

Auto Tray

Tape-Out

900(L)×800(W)×1410(H) mm

1170(L)×620(W)×1350(H) mm

130(L)×600(W)×11660(H) mm

Shipping Weight

Main machine: 260 Kg
Auto tray: 140 Kg
Tape out: 140 Kg





SuperBot-2




How To Install Electric Tape-In Feeder




How To Install Socket Adapter Plate




How To Set Up The Tape-Out Handler




Xeltek Tape Ink Marker




Xeltek Tube Out




Quick Guide: How To Set Up Automated Tray Handler




Auto Tray Ink Marker




Laser Marker




Software Download & Device List

Software Download Download Device List View Online Device List
