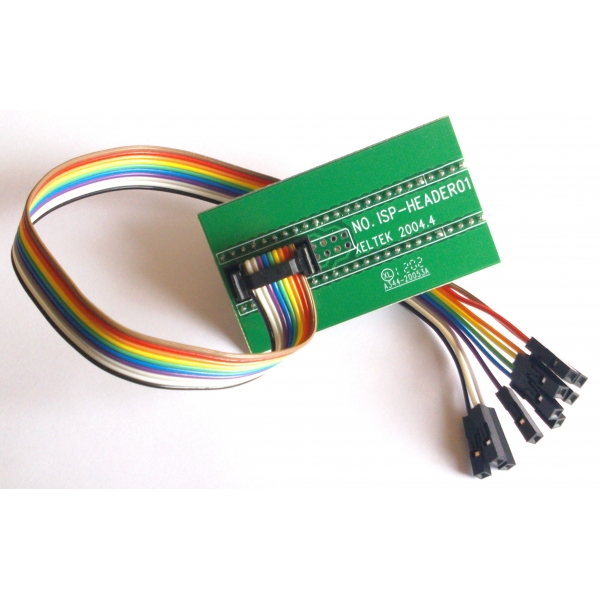

ISP Header

$75.00
ISP Header 01

In Stock, same day shipping if ordered before 9am PST Monday - Friday.

+

Bottom PCB: ISP Header 01 W*L(mm): Pitch(mm):

How do I use my ISP Xeltek Adapter, ISP-HEADER01?
The PCB end of the header is placed bottom justified on the ZIP socket of the programmer. See Fig. A.5.1.

ISP Xeltek Adapter

Fig. A.5.1.

ISP cables could be used with selected parallel programmers to perform serial programming.

Select your in-circuit progarammable chip on our software. If ISP mode of programming is supported under your programmer, an ISP mark will be indicated in front of your chip part number on our software. Select this device name on our software. An adapter information dialog box will appear indicating what pins will be used on your chip and what color signal line, from the ISP-HEADER01, it's associated with. For example, see Fig. A.5.2 for the adapter information dialog box for MICROCHIP (ISP)PIC10F200.

ISP Header-01 Adapter
Figure A.5.2


ISP Header-01 Adapter Pinout Information

The PCB end of the adapter is composed of 48 pins, dual in line layout. Only the last 5 pins of each column of pins is used. So, it is just a 10 pin header.

Here is the pin mapping layout:

Pin#1 --> Brown
Pin#2 --> Orange
Pin#3 --> Green
Pin#4 --> Purple
Pin#5 --> White
Pin#6 --> Black
Pin#7 --> Grey
Pin#8 --> Blue
Pin#9 --> Yellow
Pin#10 -->Red

Socket adapters sold separately.

To find the compatible adapter for your chip please visit our Device Search Tool.


DIP Socket Adapter:

DX0001(SuperPro 6100N and SuperPro 6104NGP)

GX0001 (SuperPro 7500 and SuperPro 7504)

Warranty Support

All socket adapters come with 30 days warranty. User induced damage is not covered.
