• Programs devices with Vcc as low as 1.2V.
• Ultra fast programming speed: Programs 30% faster than SuperPro 5000 programmers
• Built with 144 universal pin-drivers for support of today's most complex devices. Universal and device independent socket adapters are available for various packages up to 144 pins.
• The programmer operates in either PC hosted mode or stand-alone mode.
  • Under PC hosted mode, a PC controls the programmer via a high-speed USB2.0 connection to program a chip.
  • Under stand-alone mode, the user controls the programmer via 20-characters, 4-line LCD display with 6-KEY
  • A CF (compact flash) card stores the project files.
• The programmer support devices up to 256 GBytes
• ISP/ICP programming capability through optional ISP/ICP adapter.
• In stand-alone mode, the user can operate multiple units to construct a concurrent multiprogramming system.
• Over-current and over-voltage protection for safety of the chip and programmer hardware.
• Compatible with Windows 7 & Vista & XP 32/64 bit
• Only IC manufacturer approved programming algorithms provide high reliability.
• Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.
• Includes the following advanced and powerful software functions:
  • Chip operation starts immediately upon proper chip insertion in Production Mode.
  • Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one step.
  • Password protection provides security for project files and production volume control.
  • Batch command combines device operations like program, verify, security into a single command at any sequence.
  • Serial number generators are available as standard or customer-specific functions.
  • Log file provides production quality tracking.

By operating multiple programmers simultaneously you can use them in high volume production environment. Clustering of programmers provides for flexible and easy way for volume production. Optional Compact Flash card is necessary to store user data, and device algorithm in stand-alone operation. For most operation 256MB size is recommended. Click here for more information about Volume Production Solution

• XELTEK updates software and device algorithm regularly.
• Download the current software version free of charge at Download Center.
• Updates are available by mail at a nominal charge.
• XELTEK also adds devices upon customer's request at its option.

Standard 2 Years Warranty: Included with purchase of SuperPro 5000. Covers device update and repair. Xeltek pays Fedex GND when shipping product back to customer for US only. It doesn't apply for international customers.

Programmer is warranted to be free of manufacturing or workmanship defects for two years from the date of purchase. For technical support, you may use repair request, ticketing system, live chat or forum; you may also give us a call during our business hours Monday through Friday, from 8:00am to 4:30pm (PST).

• Devices Supported: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR & NAND), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU, etc...
• Package: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP, ...
• PC interface: USB2.0 (High speed)
• Stand-alone memory: Compact FLASH Card
• Power supply: AC Adapter: Input AC 90V- 250V; Output: 12V/1.5A; Power:15W
• Main unit: Dimensions 184(L) * 160(W) * 78(h) mm; Weight 1.8 lbs (0.8 Kg)
• Package: Dimensions 310(L) * 250(W) * 145(H) mm; Weight 3.6 lbs (1.65 Kg)

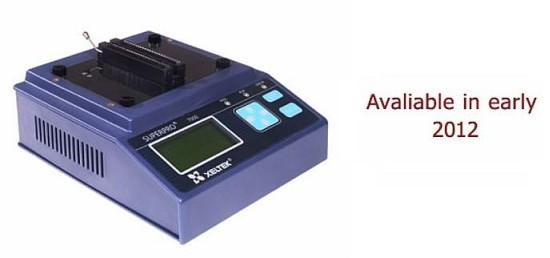

• SuperPro 7000 Programmer with a DIP48 Adapter
• AC adapter
• Software CD
• USB Cable

Optional Accessories:

• Socket Adapters in various packages
• CF card for stand-alone operation
• ISP Header for serial programming
