SuperPro M Universal IC Chip Device Programmer

SuperPro M Universal IC Chip Device Programmer
View detailed images (3)
SKU SPM
Weight 3.00 lbs
Number of Devices Supported 20,100+
Number of Manufacturers Supported 158
Number of Pins Available 48
Stand-Alone (PC-Free) No
Built-in Processor ARM7 RISC MCU
Free User Requested Device Update Optional
Windows Support Win XP/Vista/7 32/64 bit
RoHS & CE Compliance Yes
Warranty 2 Years
Socket Adapter Compatibility SA & TA series socket adapters
Pre-Sales FAQ

Our price: $595.00
Quantity

Share to get discount

Lowest-cost, Ultra-High Speed Universal Device Programmer; USB 2.0 Interfaced

Highlights

  • Fastest Lowest-cost Programmer: With ARM7 MCU it gives ultra-fast programming experience.
  • Programs devices with Vcc as low as 1.2V
  • Built-in 48 universal pin drivers
  • CE and ROHS Compliant

Premium Warranty

Extended Premium Warranty (Optional - USA Only)

Premium warranty coverage includes:

  • Standard two-year warranty plus one additional year warranty. Total three-year warranty on hardware repair services.
  • Free user requested device updates during initial (one) year of purchase for selected programmer models.**
  • Free loaner programmer - Shall be provided until repair is completed and returned.
  • Free 3-year FedEx 2Day shipping for loaner unit.
  • Free 3-year FedEx Ground shipping for repair unit (both ways).
  • Free 3-year Testing fee.
  • Priority support for RMA items with Premium Warranty code.
  • 10% discount on SuperProIS01 device update fee ($150) and first DLL License ($500) during the premium coverage period. Discount not valid for SuperProIS01 algorithm customization with board constraints.
  • Additional service charge applies to out-of-warranty items.
  • If discontinued models could not be fixed, premium trade-in options will be available. For premium trade-in option, customer will get 20% credit of the value paid for the non-repairable programmer and 100% credit of the value paid for the premium warranty. The credits must be used towards the purchase of a new programmer and no cash refund will be given.
  • Effective as of February 1, 2013.

*Note: All warranties must be purchased at the time of original product purchase.

**Selected Programmers: SuperPro7000, SuperPro6000, SuperPro5000, Superpro6004GP, SuperPro5004GP. Due to sample limitations on obsolete devices, support time may vary.  Customers are welcome to provide chip  samples to expedite algorithm support. XELTEK adds devices upon customer's request at its option. Additional non-recurring engineering (NRE) charge may apply if device update involves socket adapter designing. Device support for out-of-warranty items is $150 -$300 per device request.

$129.00

http://www.xeltek.com/ximages/add_to_cart2.png







Optional Products






Expanded Features

  • Programs devices with Vcc as low as 1.2V.
  • Ultra fast programming.
  • Built with 48 universal pin-drivers for support of today’s most complex devices. Universal and device independent socket adapters are available for various packages.
  • The programmer operates in PC hosted mode.
    • Under PC hosted mode, a PC controls the programmer via a high-speed USB2.0 connection to program a chip.
  • ISP/ICP programming capability through optional ISP/ICP adapter.
  • Only IC manufacturer approved programming algorithms provide high reliability. Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.
  • Provides over-current and over-voltage protection for safety of the chip and programmer hardware.
  • Compatible with Windows 7 & Vista & XP 32/64 bit
  • Includes the following advanced and powerful software functions:
    • Chip operation starts immediately upon proper chip insertion in Production Mode.
    • The Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one step.
    • Password protection provides security for project files and production volume control.
    • The Batch command combines device operations like program, verify, security into a single command at any sequence.
    • Auto Increment Function option to indicate an automatic increase in the serial number written to each chip.
    • A Log file provides quality tracking.
  • CE and RoHS Compliant

Restrictions and Compliances

Speed Comparison

Device

Program + Verify (Sec)

Compare with SP3000U

Type

AT28C64B

0.8(P)+0.1(V)= 0.9(s)

1.2(P)+0.8(V)= 2.0(s)

22.1(P)+06.2(V)= 28.3(s)

24AA128

2.7(P)+1.8(V)= 4.5(s)

5.0(P)+4.0(V)= 9.0(s)

128Kb EEPROM

QB25F640S33B60

29.0(P)+14.4(V)= 43.4(s)

55.2(P)+41.4(V)= 96.6(s)

64Mb EEPROM

AT89C55WD

2.5(P)+0.4(V)= 2.9(s)

3.3(P)+1.0(V)= 4.3(s)

20KB FLASH MCU

S25FL064A

43.9(P)+14.7(V)= 58.6(s)

72.8(P)+41.4(V)= 114.2(s)

64Mb SPI EEPROM

PIC16F876A

10.1(P)+0.8(V)= 10.9(s)

22.1(P)+06.2(V)= 28.3(s)



Software Download & Device List

Please Login First to see the Download link.

Device Updates

Please Login First to see the Download link.

Warranty Support



Standard  Warranty: Included with the purchase of SuperPro5000E, SuperPro5004EGP, SuperPro601S, SuperPro600P, SuperPro501S, SuperPro500P or SuperProM.

  • Free two-year warranty on hardware repair services.
  • Xeltek covers FedEx Ground when shipping RMA items back to domestic (USA) addresses only.
  • International customers are responsible for shipments both ways.
  • Programmers are warranted to be free of manufacturing or workmanship defects for two years from the date of purchase.
  • For technical support, contact Xeltek via Repair Request, Ticketing System, or Forum. Calls will be answered in the order it was received. Due to high volume of calls, representatives will respond faster through written requests via methods above. Calls are accepted during business hours Monday -  Friday, 8:00 AM -  4:30 PM (PST).
  • Additional service charge applies to out-of-warranty items.
  • Effective as of February 1, 2013.

Product Manual

Please Login First to see the Download link.

Posters & Brochures

SuperPro 5000 poster

Hardware & electrical Specifications

  • Devices Supported: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU
  • Package: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP,…
  • PC interface: USB2.0 (High speed)
  • Power supply: AC Adapter: Input AC 90V- 250V, 50/60Hz; DC Output: 12V/2A; power 15W
  • Main unit: Dimensions 178mm (L) * 130mm (W) * 40mm (H) Weight 0.85 lbs (0.8Kg)
  • Package: Dimensions 320mm (L) * 300mm (W) * 85mm (H) Weight 3 lbs (1.8Kg)

Items Included

  • SuperPro M Programmer w/ 48pin driver
  • AC adapter
  • Software CD
  • USB Cable

Optional Accessories:
Add to comparison list
Compare product with:
CX4073 Socket Adapter
CX5079 Socket Adapter
CX5094 Socket Adapter
CX4073 Socket Adapter CX5079 Socket Adapter CX5094 Socket Adapter
$500.00
$500.00
$1000.00

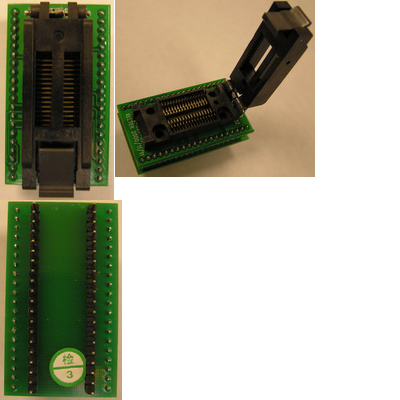

SA630 Socket Adapter
SA633 Socket Adapter
SA642E-B065A Socket Adapter
SA630 Socket Adapter SA633 Socket Adapter SA642E-B065A Socket Adapter
$155.00
$175.00
$395.00

SA642N-B026A Socket Adapter
SA681-B14403 Socket Adapter
SA732-B237 Soket Adapter
SA642N-B026A Socket Adapter SA681-B14403 Socket Adapter SA732-B237 Soket Adapter
$395.00
$415.00
$295.00
