Features
- Fast programming speed due to the flexible hardware engine. The programming speed is adjustable for complicated application environments brought by user target board, length of ISP cable etc.
- Stand-alone and PC-Hosted (USB2.0 High Speed) dual mode
- Supports ISP programming of devices with I2C, SPI, UART, BDM, MON, MW, JTAG, CAN, ICC, RS232 and any other serial ports.
- Supports ATE control
- Supports 8 serial programming chips at one time
- Supports parallel programming chip
- Over-current and ESD protection to protect your equipment
- DLL and API for easy integration into customers' system
Premium Warranty
|
Premium 1 year Warranty Coverage (US Only) Total 1 year Premium Warranty Coverage available for USA. Coverage includes:
*Notes: All warranties must be purchased at time of product purchase. |
$140.00 |
|
|
Premium 2 years Warranty Coverage (US Only) Total 2 years Premium Warranty Coverage available for USA. Coverage includes:
*Notes: All warranties must be purchased at time of product purchase. |
$340.00 |
|
Optional Products
|
Applications
- R&D applications such as in-circuit test and debug.
- Volume productions. Devices may be programmed after the board is fully assembled. One example is the serial number writing on an on-board serial device.
- Field applications. Comes with portability; stand-alone mode and data storage device (SD card). It is suitable for field test, debug and data acquisition.
- Third party applications. User-friendly s/w interface (DLL and Virtual Com communication command set) and h/w interface (ATE and USB) are provided and make it very easy for customers to integrate ISP02 as a functional module into their systems. E.g., SuperPro IS02 can be integrated in ICT equipment.
- WINDOWS XP/VISTA/Win7 x32/x64 compatibility
Restrictions and Compliances
Software Download & Device List
Device Updates
- XELTEK updates software and device algorithm regularly.
- Download the current software version free of charge at Download Center.
- XELTEK also adds devices upon customer's request at its option.
Warranty Support
Standard 2 Years Warranty: Included with purchase of SuperPro 5000. Covers device update and repair. Xeltek pays Fedex GND when shipping product back to customer for US only. It doesn't apply for international customers.
Programmer is warranted to be free of manufacturing or workmanship defects for two years from the date of purchase. For technical support, you may use repair request, ticketing system, live chat or forum; you may also give us a call during our business hours Monday through Friday, from 8:00am to 4:30pm (PST).Product Manual
Posters & Brochures
Hardware & electrical Specifications
- ISP cable integrates I2C, SPI, UART, BDM, MON, MW, JTAG, CAN, ICC, RS232 interfaces
- VDD (0-5.5V /0.5A) and VPP (0-15V / 0.2A) lines provided to power up the target board and the target devices.
- Cable driver circuit supports the target devices of voltage level at 1.5 to 5V and it is ESD protected.
- USB 2.0 (high speed) interface for PC hosted mode
- Stand-alone Feature: Supported, SD Card.
- Under stand-alone mode, the user controls the programmer via 20-characters, 4-line LCD display with 6-KEY keypad. A SD card stores the project files (up to 16GB). The number of the project files is limited only by the capacity of the SD card.
- ATE interface is built for easy external hardware control. 6 lines of SEL0 - SEL5 are for project selection (maximum 64 files); 2 command lines START and STOP; 3 STATUS lines PASS, FAIL and BUSY. All signals are optical-isolated.
- 1 LAN ports.
- A universal AC adaptor of DC12V/2A is included for power supply.
- Electrical spec. of the AC adapter: AC Input 90V to 250V, 50/60Hz, DC; Output 12V/2A; power:-W
Software Specifications
- Supports almost all devices with ISP interface.
- Supports Jam and Staple files from ACTEL and ALTERA; Direct C files from ACTEL.
- Programming speed selectable (High, Normal and Low) for complicated applications such as different cable lengths, different target load characters.
- Dynamic buffer function. Application examples include device S/N, MAC address, frequency or transducer calibration etc.
- File format on SD: FAT16, FAT32.
- Functions for IP protection: Project security, SD security, batch control, administration management etc.
- API and DLL provided for easy integration into customers' system like ICT and ATE.
- Software provides the features for multiple units to work concurrently controlled by USB HUB.
Items Included

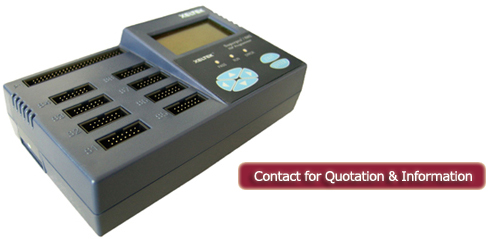

- SuperPro IS02 Programmer with an ISP cable
- AC adapter
- Software CD
- USB Cable
- SD card for stand-alone operation
- Parallel Cable
Optional Accessories:
- DLL support for third party applications
